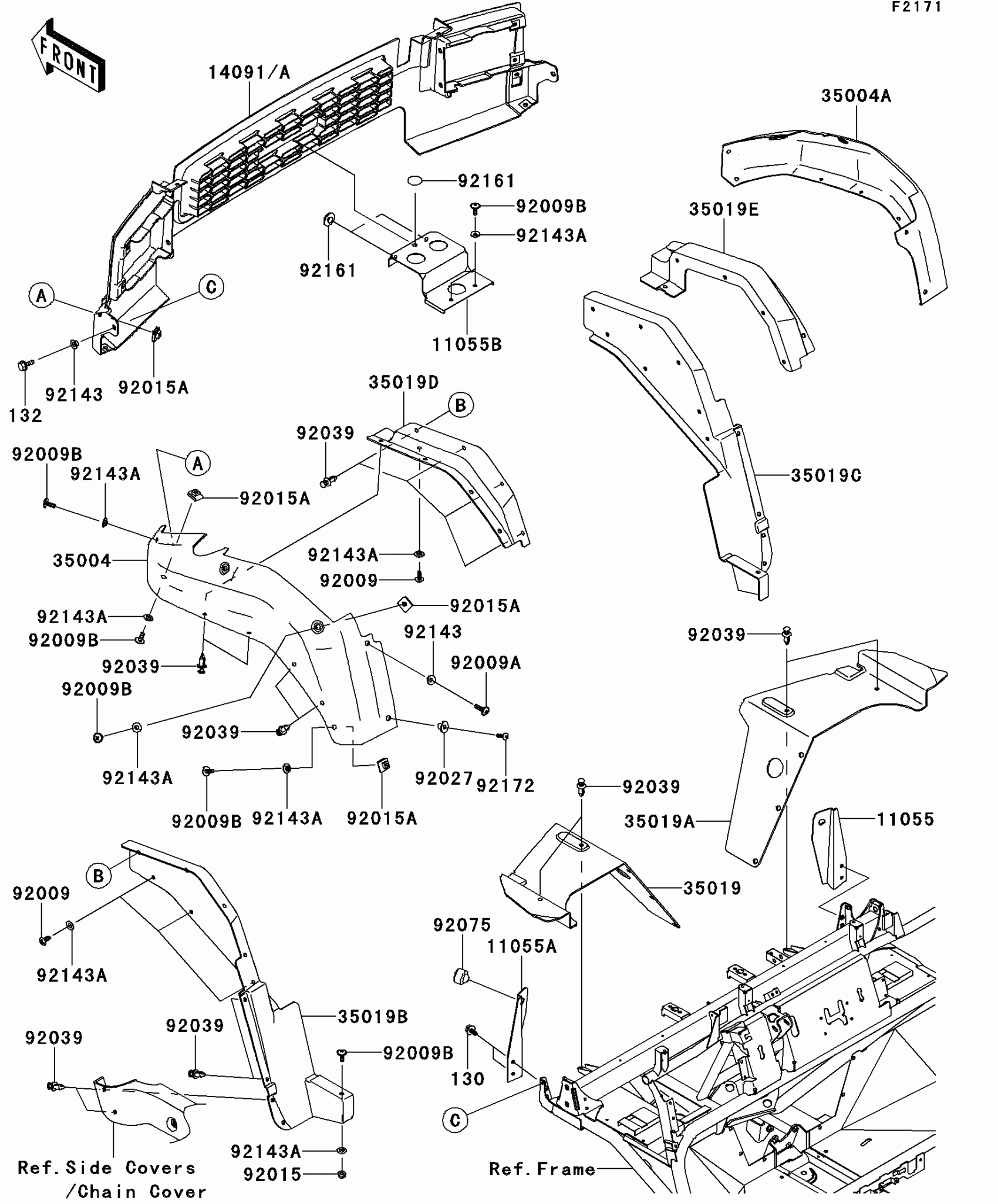

Kawasaki MULE™ 4010 TRANS4x4® DIESEL Front Fender(s)(G9F-GBF) Diagram

Description

Price

11055

BRACKET

11055-0917

$31.28

11055A

BRACKET

11055-0918

$31.28

11055B

BRACKET

11055-0954

$41.57

14091A

COVER,FRONT GRILL,W.GREEN

14091-0818-286

$104.56

35004

FENDER-FRONT,SIDE,LH,F.BLACK

35004-0123-6Z

$84.31

35004A

FENDER-FRONT,SIDE,RH,F.BLACK

35004-0124-6Z

$84.31

35019

FLAP,FR,LH

35019-0062

$38.66

35019A

FLAP,FR,RH

35019-0063

$38.66

35019B

FLAP,SIDE,RR,LH

35019-0064

$70.98

35019C

FLAP,SIDE,RR,RH

35019-0065

$70.98

35019D

FLAP,SIDE,MIDDLE,LH

35019-0068

$50.75

35019E

FLAP,SIDE,MIDDLE,RH

35019-0069

$50.75

92009

SCREW,TAPPING,6X16

92009-1166

$4.36

92009A

SCREW,6X22,BLACK

92009-1256

$2.27

92009B

SCREW,6X16

92009-1621

Unavailable

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$3.43

92015A

NUT,CLAMP,6MM

92015-1678

$4.37

92027

COLLAR

92027-1767

$4.37

92039

RIVET

92039-1229

$0.80

92075

DAMPER

92075-015

$3.97

92143

COLLAR

92143-1057

$3.97

92143A

COLLAR

92143-1087

$3.11

92161

DAMPER,RUBBER

92161-1200

$3.35

92172

SCREW

92172-1072

$2.00

130

BOLT-FLANGED,6X14

130BB0614

$1.84

132

BOLT-FLANGED-SMALL,6X20

132BB0620

$3.18
