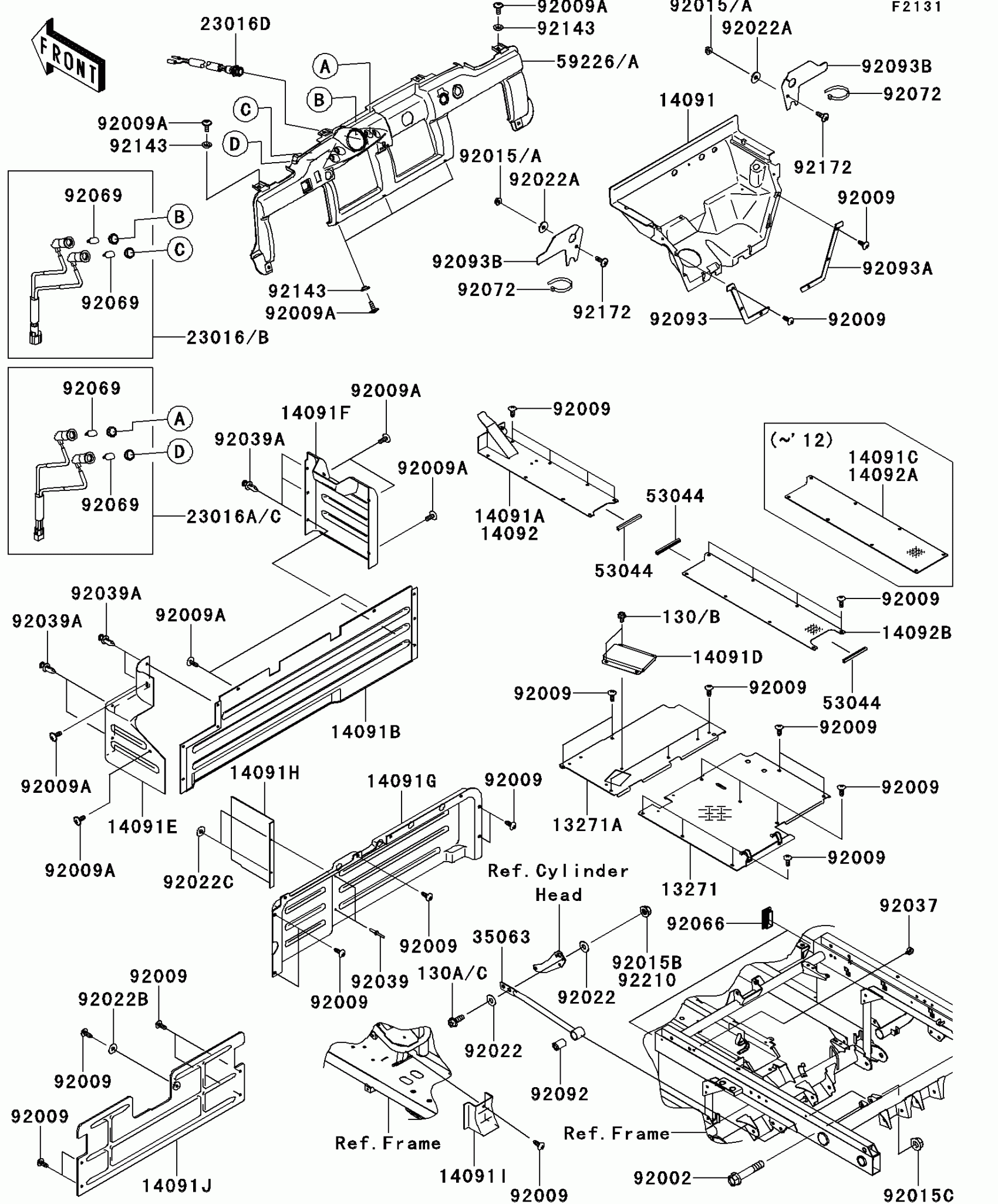

Kawasaki MULE™ 4010 TRANS4x4® DIESEL Frame Fittings Diagram

#

Description
Price

13271

PLATE,FLOOR,RH

13271-7602

$147.62

13271A

PLATE,FLOOR,RH

13271-7606

$83.23

14091

COVER,FLOOR

14091-1378

$100.23

14091A

COVER,FLOOR,CNT,FR

14091-1692

$95.12

14091B

COVER,FRONT SEAT,CNT

14091-7531

$115.56

14091C

COVER,FLOOR,CNT,RR

14091-7535

$83.82

14091D

COVER

14091-7536

$18.98

14091E

COVER,FRONT SEAT,LH

14091-7541

$30.75

14091F

COVER,FRONT SEAT,RH

14091-7542

$50.39

14091G

COVER,FRONT SEAT,RR,LWR

14091-7549

$143.47

14091H

COVER,FUEL TANK

14091-7550

$21.66

14091I

COVER,PARKING CABLE

14091-7551

$12.78

14091J

COVER,REAR SEAT,LWR

14091-7558

$105.00

14092

COVER,FLOOR,CNT,FR

14092-0832

$83.27

14092B

COVER,FLOOR,CNT,RR

14092-0993

$82.22

23016B

LAMP-ASSY,PARKING&WATER TEMP

23016-0035

$89.50

23016C

LAMP-ASSY,OIL PRESSURE&GROW

23016-0037

$92.92

23016D

LAMP-ASSY,LED

23016-7501

Unavailable

35063

STAY

35063-1107

$62.66

53044

TRIM,L=111

53044-7502

$6.52

59226

PANEL-CONTROL,F.BLACK

59226-0012-6Z

$126.10

59226A

PANEL-CONTROL,F.BLACK

59226-0026-6Z

$117.26

92002

BOLT,ROD,12MM

92002-1757

$10.47

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,6X16

92009-1621

Unavailable

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92015A

NUT,FLANGED,6MM

92015-1367

$2.53

92015B

NUT,FLANGED,LOCK,8MM

92015-1668

$3.24

92015C

NUT

92015-1706

$5.69

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

$3.29

92022A

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.48

92022B

WASHER,7X18X1.2

92022-1545

$0.84

92022C

WASHER,4.3X12.5X1

92022-1949

$3.17

92037

CLAMP,HOSE

92037-1827

$6.35

92039

RIVET

92039-1150

$3.53

92039A

RIVET

92039-1229

$0.80

92066

PLUG

92066-7505

$3.44

92069

BULB,12V 1.7W,T10

92069-1059

$3.78

92072

BAND,L=368.3

92072-3872

$1.20

92092

BUSHING-RUBBER

92092-005

$10.71

92093

SEAL,FRONT FENDER,LH

92093-1293

$9.34

92093A

SEAL,FRONT FENDER,RH

92093-1294

$9.68

92093B

SEAL,LOWER COVER

92093-1295

$21.14

92143

COLLAR

92143-1087

$2.98

92172

SCREW,6X18

92172-0002

$1.98

92210

NUT,FLANGED,LOCK,8MM

92210-0005

$3.58

130

BOLT-FLANGED,6X10

130BA0610

$0.97

130A

BOLT-FLANGED,8X22

130BA0822

$2.59

130B

BOLT-FLANGED,6X10

130BB0610

$1.77

130C

BOLT-FLANGED,8X22

130BB0822

$1.95
