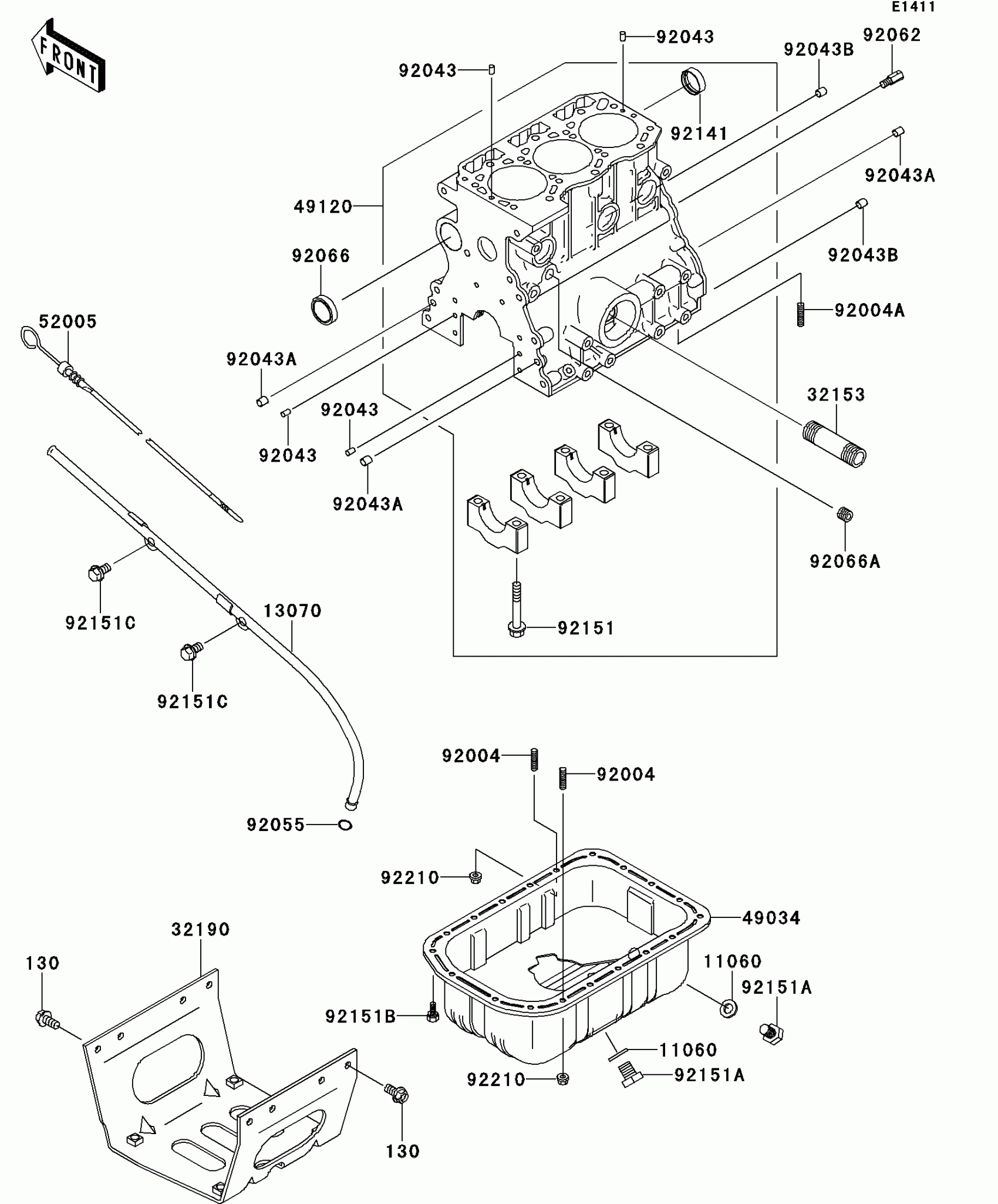

Kawasaki MULE™ 4010 TRANS4x4® DIESEL Crankcase Diagram

Description

Price

11060

GASKET,OIL DRAIN BOLT

11060-1942

$2.82

13070

GUIDE,GAUGE

13070-1350

$84.50

32153

PIPE,OIL FILTER

32153-1355

$9.24

32190

BRACKET-ENGINE

32190-1187

$81.55

49034

PAN-OIL

49034-0024

$181.45

49120

CRANKCASE-COMP

49120-0008

Unavailable

52005

GAUGE,OIL LEVEL

52005-1139

$52.71

92004

STUD,6X10

92004-1261

$2.10

92004A

STUD,6X14

92004-1262

$2.10

92043

PIN,6MM

92043-1609

$1.82

92043A

PIN,8MM

92043-1610

$1.82

92043B

PIN,8MM

92043-1611

$2.12

92055

RING-O

92055-1625

$1.82

92062

NOZZLE

92062-1088

$11.58

92066

PLUG

92066-1526

$7.64

92066A

PLUG,CRANKCASE

92066-1527

$3.29

92141

BUSHING,CRANKCASE

92141-1053

$7.63

92151

BOLT,CRANKSHAFT

92151-1655

$1.96

92151A

BOLT,OIL DRAIN

92151-1656

$2.38

92151B

BOLT,6X12

92151-1657

$1.82

92151C

BOLT,8X14

92151-1658

$2.12

92210

NUT,6MM

92210-1208

$2.12

130

BOLT-FLANGED,8X16

130BB0816

$1.27
