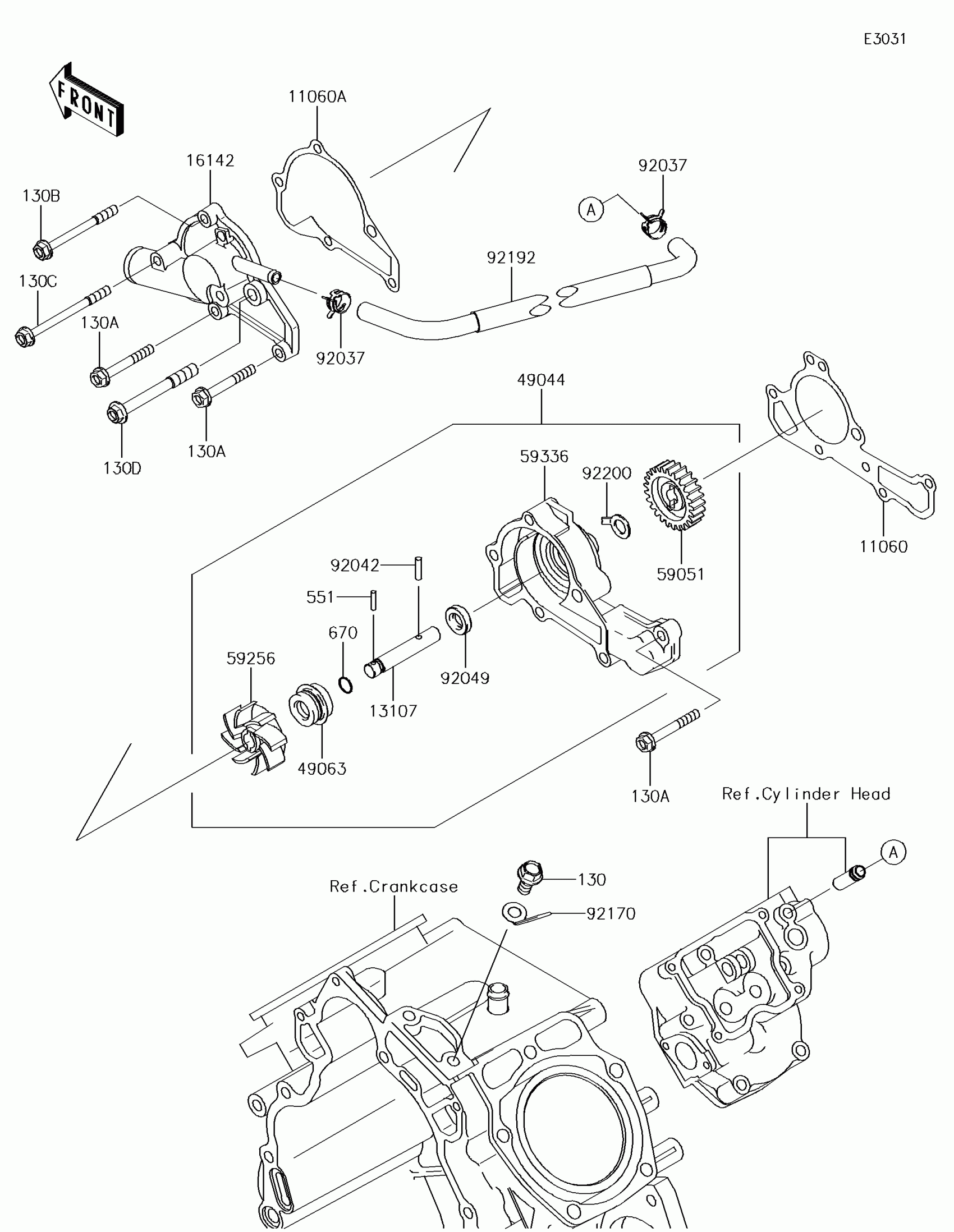

Kawasaki MULE™ 4010 TRANS4x4® CAMO Water Pump Diagram

Description

Price

11060

GASKET,PUMP CASE

11060-2450

$5.75

11060A

GASKET,PUMP COVER

11060-2451

$3.99

13107

SHAFT,IMPELLER

13107-2097

$6.42

16142

COVER-PUMP

16142-0714

$15.42

49044

PUMP-WATER

49044-2066

$61.69

49063

SEAL-MECHANICAL

49063-1056

$13.09

59051

GEAR-SPUR

59051-2113

$3.72

59256

IMPELLER

59256-2057

$3.25

59336

CASE-PUMP

59336-2052

$30.54

92037

CLAMP,HOSE CLIP

92037-1181

$2.68

92042

PIN,DOWEL,4X15.8

92042-014

$0.49

92049

SEAL-OIL

92049-2111

$2.92

92170

CLAMP

92170-2060

$2.68

92192

TUBE

92192-2169

$10.34

92200

WASHER

92200-2044

$2.32

130

BOLT-FLANGED,8X16

130BA0816

$1.03

130A

BOLT-FLANGED,6X45

130CA0645

$1.29

130B

BOLT-FLANGED,6X65

130CA0665

$1.49

130C

BOLT-FLANGED,6X75

130CA0675

$1.49

130D

BOLT-FLANGED,8X70

130CA0870

$1.34

551

PIN,DOWEL,3X14

551A0314

$0.76

670

O RING,7MM

670B1507

$1.14
