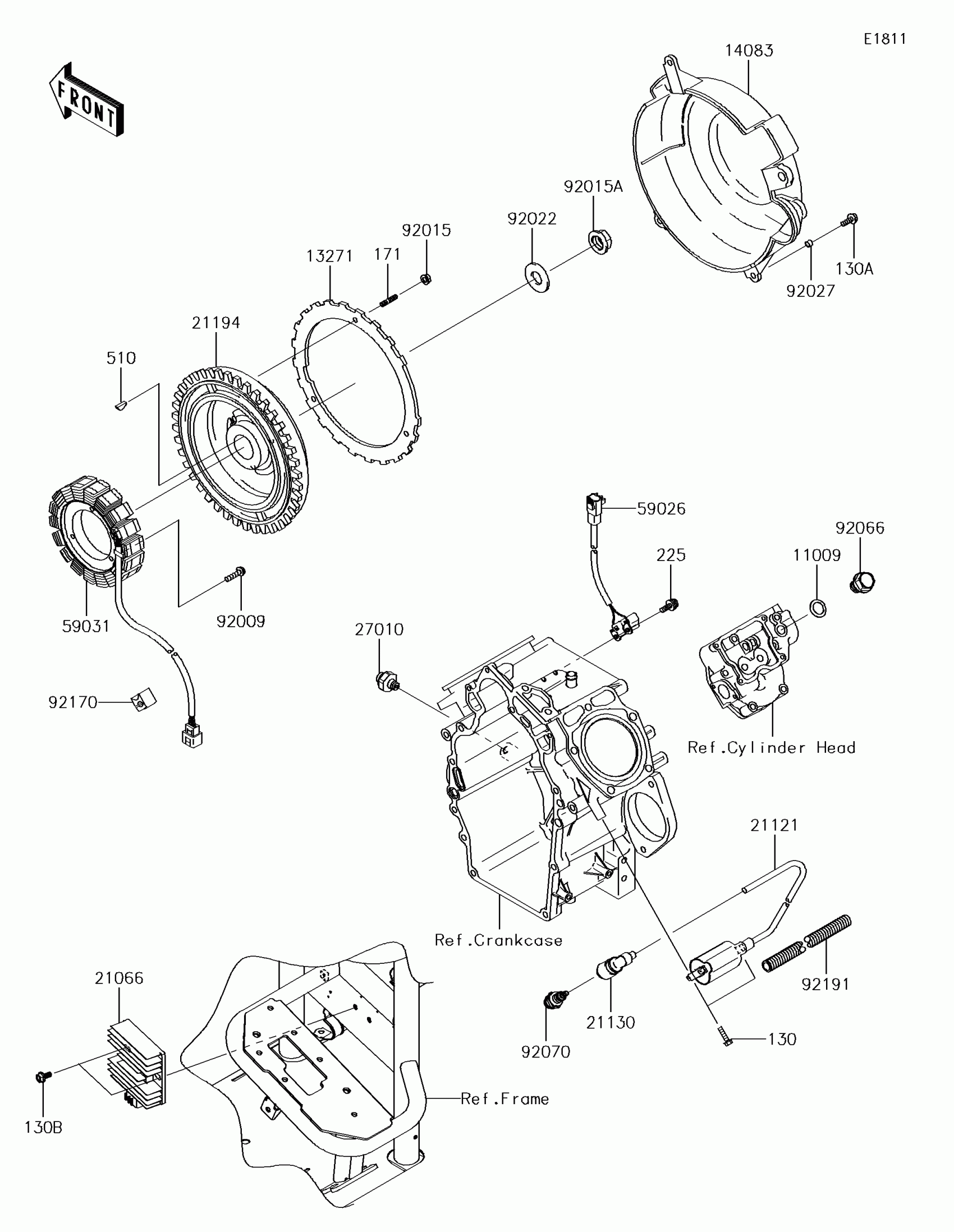

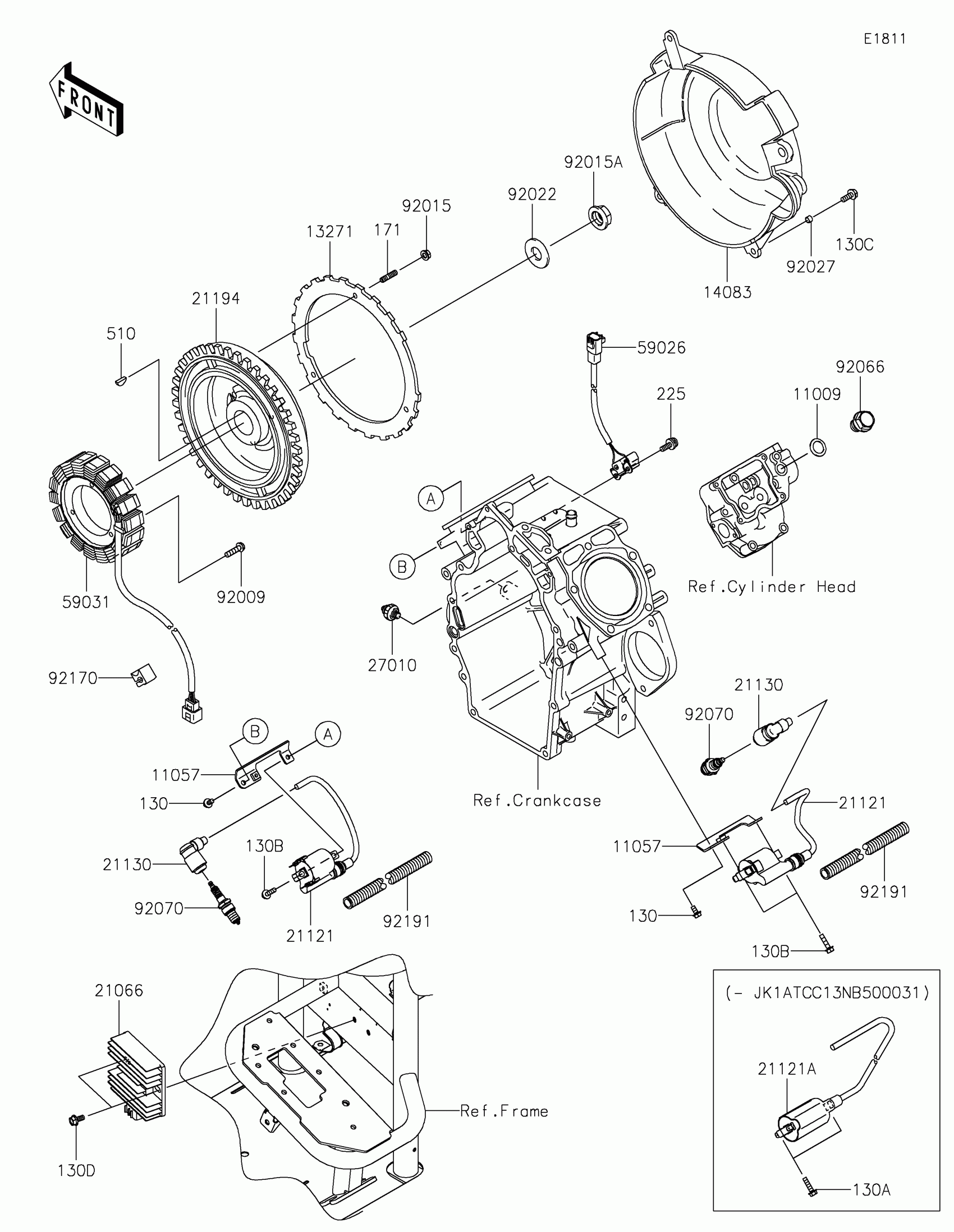

Kawasaki MULE™ 4010 TRANS4x4® CAMO Generator/Ignition Coil Diagram

Description

Price

11009

GASKET,16X24X1

11009-2566

$0.68

13271

PLATE

13271-2269

$49.12

14083

COVER-FLYWHEEL

14083-2052

Unavailable

21066

REGULATOR-VOLTAGE

21066-0717

$180.21

21121

COIL-IGNITION

21121-2092

$81.05

21130

CAP-SPARK PLUG

21130-2060

$8.41

21194

FLYWHEEL-COMP

21194-2352

$395.21

27010

SWITCH,OIL PRESSURE

27010-1313

$36.57

59026

COIL-PULSING

59026-2065

Unavailable

59031

COIL-CHARGING

59031-2136

$246.70

92009

SCREW,6X25

92009-2273

$0.82

92015

NUT,FLANGED,6MM

92015-1367

$2.93

92015A

NUT

92015-2167

$5.56

92022

WASHER

92022-2229

$2.42

92027

COLLAR,6.2X7.8X5

92027-2096

$0.53

92066

PLUG,DRAIN

92066-2099

$4.97

92070

PLUG-SPARK,BPR2ES(NGK),SOLID

92070-2110

$4.23

92170

CLAMP

92170-2056

$2.42

92191

TUBE

92191-2124

$3.51

130

BOLT-FLANGED,5X18

130BA0518

$1.31

130A

BOLT-FLANGED,6X16

130BA0616

$1.12

130B

BOLT-FLANGED,6X14

130BB0614

$1.84

171

BOLT-STUD,6X18

171BA0618

$2.03

225

SCREW-PAN-WSP-CROS,4X14

225AA0414

$0.73

510

WOODRUFF KEY

510A5100

$2.17
