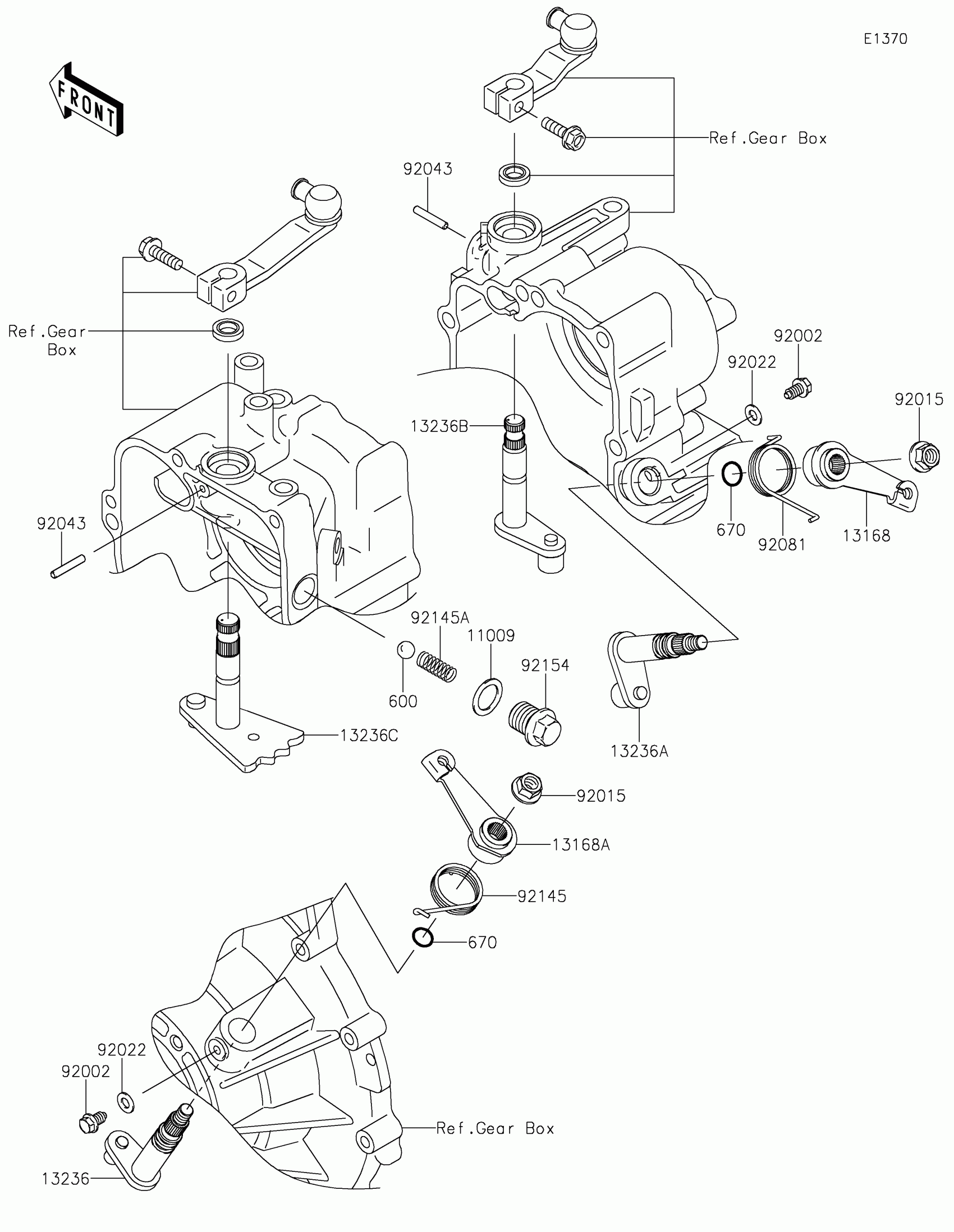

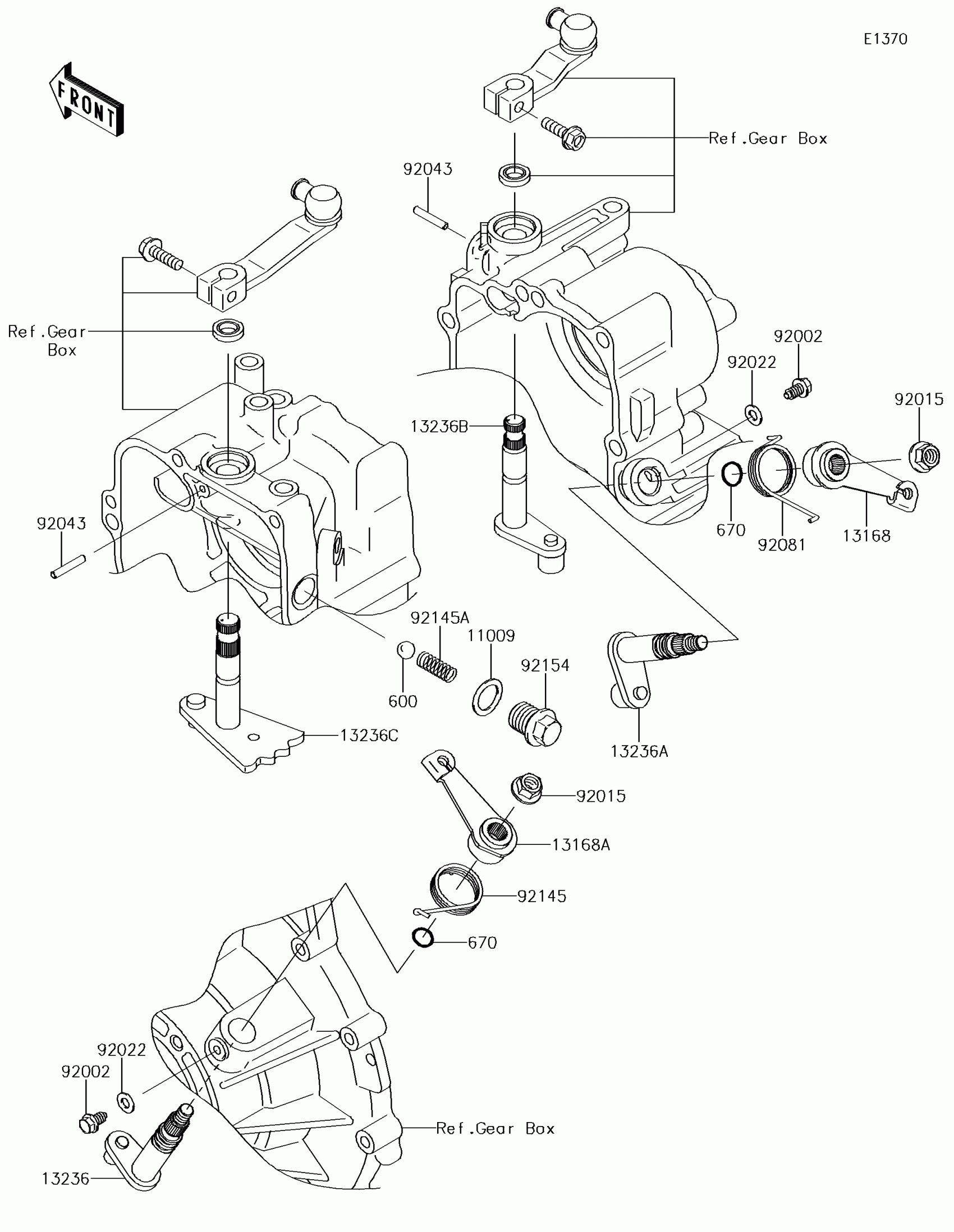

Kawasaki MULE™ 4010 TRANS4x4® CAMO Gear Change Mechanism Diagram

Description

Price

11009

GASKET,15.5X22X1

11009-1008

$2.92

13168

LEVER

13168-1268

$25.29

13168A

LEVER,DIFF LOCK

13168-1523

$21.32

13236

LEVER-COMP,DIFF LOCK

13236-1219

$22.66

13236A

LEVER-COMP,CHANGE,2WD/4WD

13236-1247

$43.95

13236B

LEVER-COMP,HI/LOW

13236-1360

$42.53

13236C

LEVER-COMP,FR/RR

13236-1366

$38.90

92002

BOLT,FLANGED-SMALL,6X8.1X2.5

92002-1962

$3.25

92015

NUT,FLANGED,8MM

92015-1406

$3.53

92022

WASHER OIL PUMP BANJO

92022-077

$3.13

92043

92043-1415

$2.03

92081

SPRING

92081-1853

$8.56

92145

SPRING

92145-0253

$9.92

92145A

SPRING

92145-0949

$8.31

92154

BOLT,NEUTRAL POSITION

92154-1139

$13.32

600

BALL-STEEL,13/32"

600A1300

$0.90

670

O RING,10MM

670B2010

$1.31
