Description

Price

11056

BRACKET,OIL PIPE

11056-4139

$5.51

11056A

BRACKET,OIL PIPE

11056-4140

$12.14

11060

GASKET,GEAR CASE COVER

11060-1310

$13.43

11060A

GASKET

11060-1966

$1.86

13151

SWITCH-COMP

13151-1093

$46.40

13236

LEVER-COMP

13236-1363

$51.47

13236A

LEVER-COMP

13236-1372

$54.15

13271

PLATE

13271-1604

$44.26

14044

HOLDER-CABLE

14044-0003

$13.00

14044A

HOLDER-CABLE

14044-0004

$14.24

14044B

HOLDER-CABLE,HI/LOW

14044-1075

$34.28

14044C

HOLDER-CABLE

14044-1098

$57.54

14055

CASE-GEAR,LH

14055-0035

$304.25

14055A

CASE-GEAR,RH

14055-1110

$260.72

14069

BREATHER

14069-1051

$8.09

14090

COVER,GEAR CASE,HI/LOW

14090-1238

$242.41

16115

CAP-OIL FILLER

16115-1060

$11.66

92005

FITTING,BREATHER

92005-1127

$16.10

92009

SCREW

92009-1290

$25.61

92015

NUT,8MM

92015-1432

$5.21

92027

COLLAR,8.8X12X9

92027-1568

$1.41

92028

BUSHING,23X30X13

92028-132

$38.79

92037

CLAMP,TUBE

92037-1505

$3.78

92037A

CLAMP

92037-1680

$2.15

92043

PIN,6.2X8X14

92043-1263

$0.49

92045

BEARING-BALL,TMB304CCM

92045-1142

$36.84

92045A

BEARING-BALL

92045-1162

$47.34

92045B

BEARING-BALL,62/28

92045-1207

$14.94

92045C

BEARING-BALL,6210CM

92045-1213

$50.20

92045D

BEARING-BALL,TMB205JR2

92045-1285

$24.49

92049

SEAL-OIL,TC28X47X7

92049-1297

$11.79

92051

SEAL-OIL,TB13225.5

92051-005

$6.16

92055

RING-O,20X3

92055-2185

$0.97

92065

GASKET,10.5X16X1

92065-058

$3.16

92067

PLUG,DRAIN,10X12

92067-001

$3.50

92087

BUSHING-METER GEAR

92087-1058

$7.88

92143

COLLAR,66X70X11

92143-1120

$17.66

92143A

COLLAR,8.5X15X9

92143-1642

$4.66

92172

SCREW,4X6

92172-0717

$1.66

92192

TUBE

92192-1643

$5.27

130

BOLT-FLANGED,6X10

130AA0610

$0.53

130A

BOLT-FLANGED,6X14

130AA0614

$0.54

130B

BOLT-FLANGED,6X12

130BA0612

$1.46

130C

BOLT-FLANGED,6X14

130BA0614

$1.12

130D

BOLT-FLANGED,6X35

130BA0635

$0.90

130E

BOLT-FLANGED,8X20

130BA0820

$3.27

130F

BOLT-FLANGED,6X20

130CA0620

$1.41

132

BOLT-FLANGED-SMALL,8X60

132BA0860

$4.46

132A

BOLT-FLANGED-SMALL,6X14

132BB0614

$2.05

411

WASHER-PLAIN,10MM

411AA1000

$0.93

601

BEARING-BALL,#6007C3

601B6007

$25.09

601A

BEARING-BALL,#6303C3

601B6303

$6.58

601B

BEARING-BALL

601B6303U

$23.77

670

O RING,10MM

670D1510

$3.72

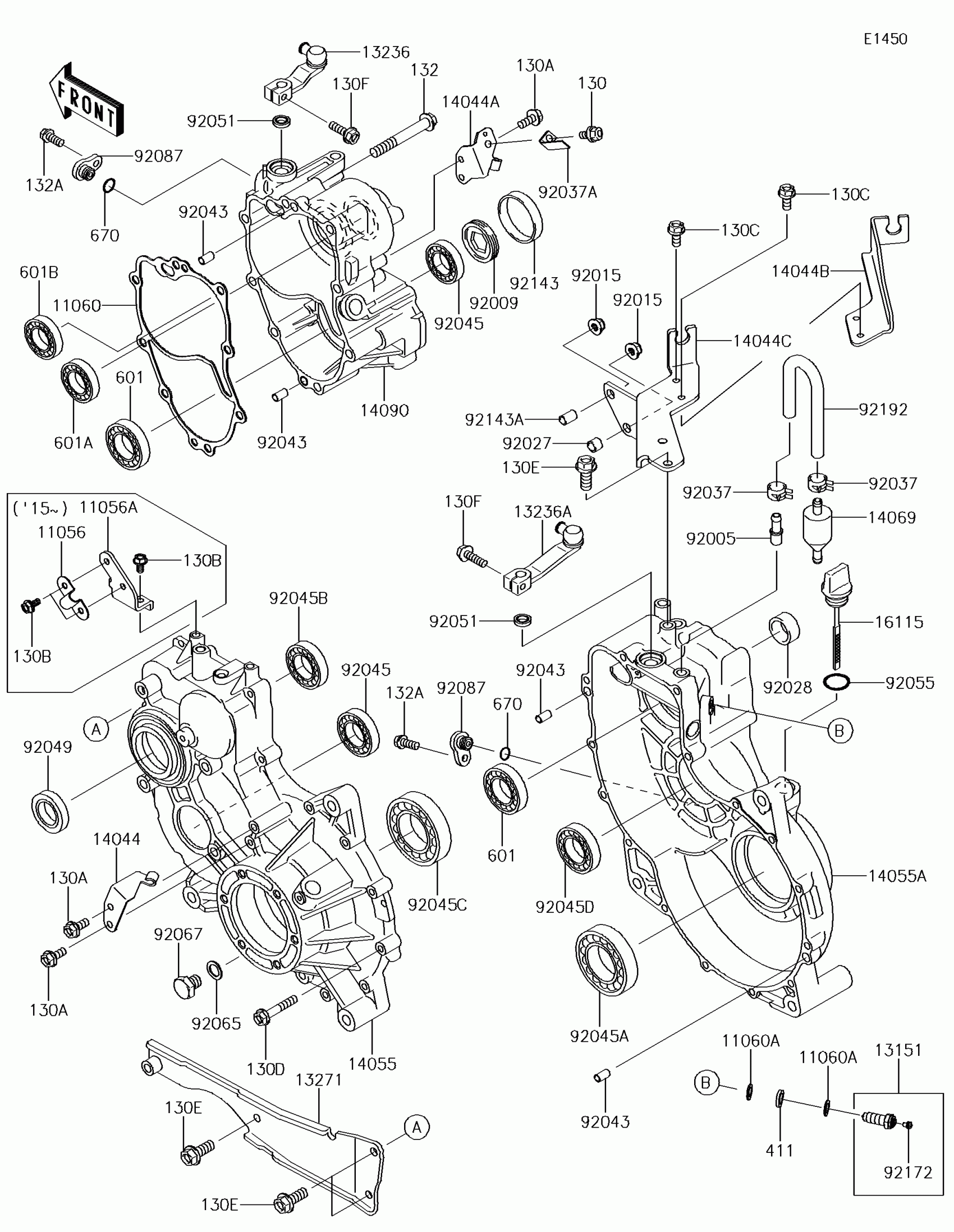

Kawasaki MULE™ 4010 TRANS4x4® CAMO Gear Box Diagram
