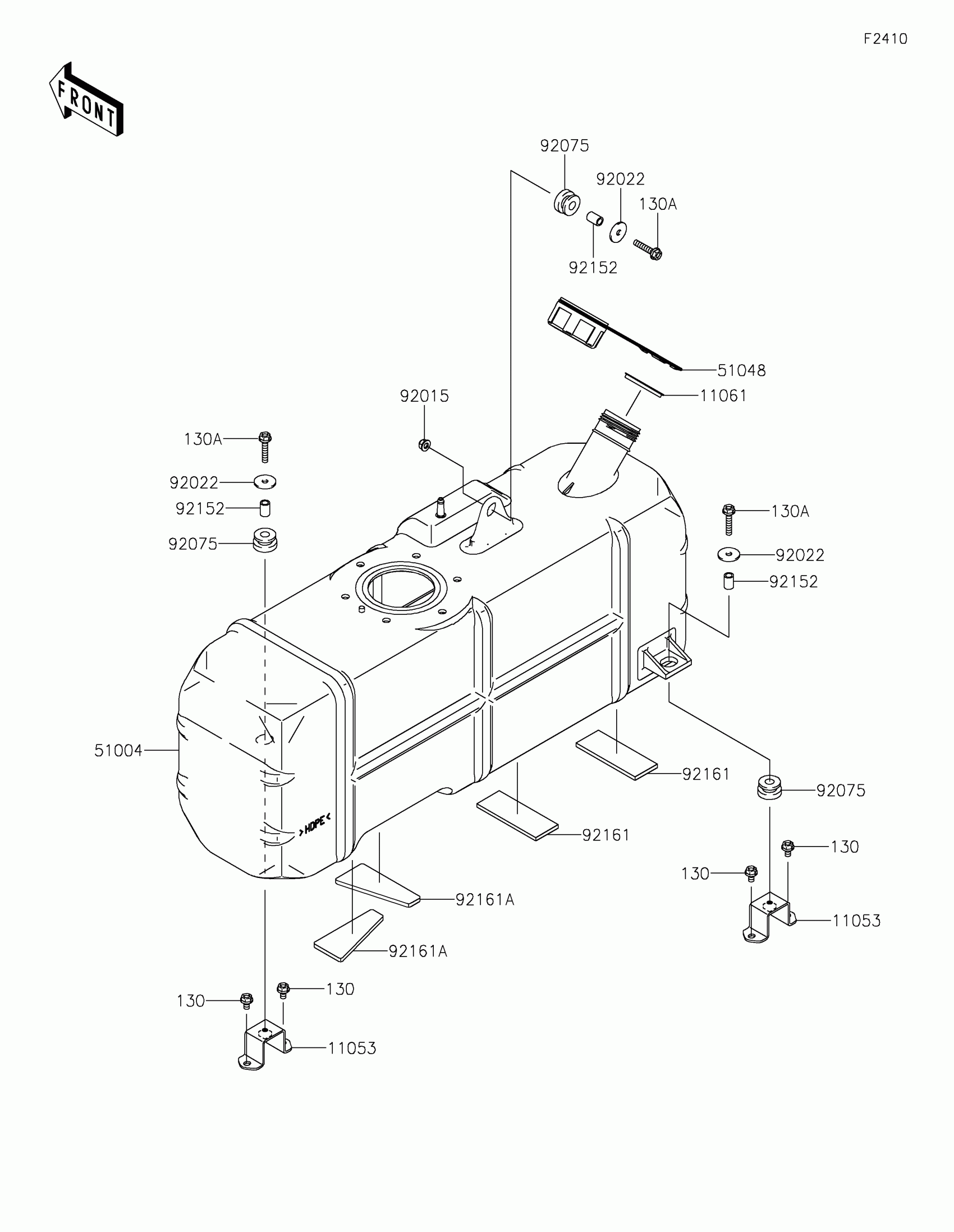

Kawasaki MULE™ 4010 TRANS4x4® CAMO Fuel Tank Diagram

Description

Price

11053

BRACKET

11053-7512

$7.27

11061

GASKET,FUEL TANK CAP

11061-0395

$4.63

51001

TANK-COMP-FUEL

51001-0763

$424.96

51048

CAP-ASSY-TANK,FUEL

51048-0026

$10.07

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$3.43

92022

WASHER,6.5X24X2

92022-1690

$3.12

92075

DAMPER

92075-1787

$5.21

92152

COLLAR,7.02X10.32X15.3

92152-7511

$1.47

92161

DAMPER,92X35X4.76

92161-0813

$3.88

92161A

DAMPER,92X19X4.76

92161-0814

$3.32

130

BOLT-FLANGED,6X10

130BA0610

$1.12

130A

BOLT-FLANGED,6X30

130BA0630

$1.31
