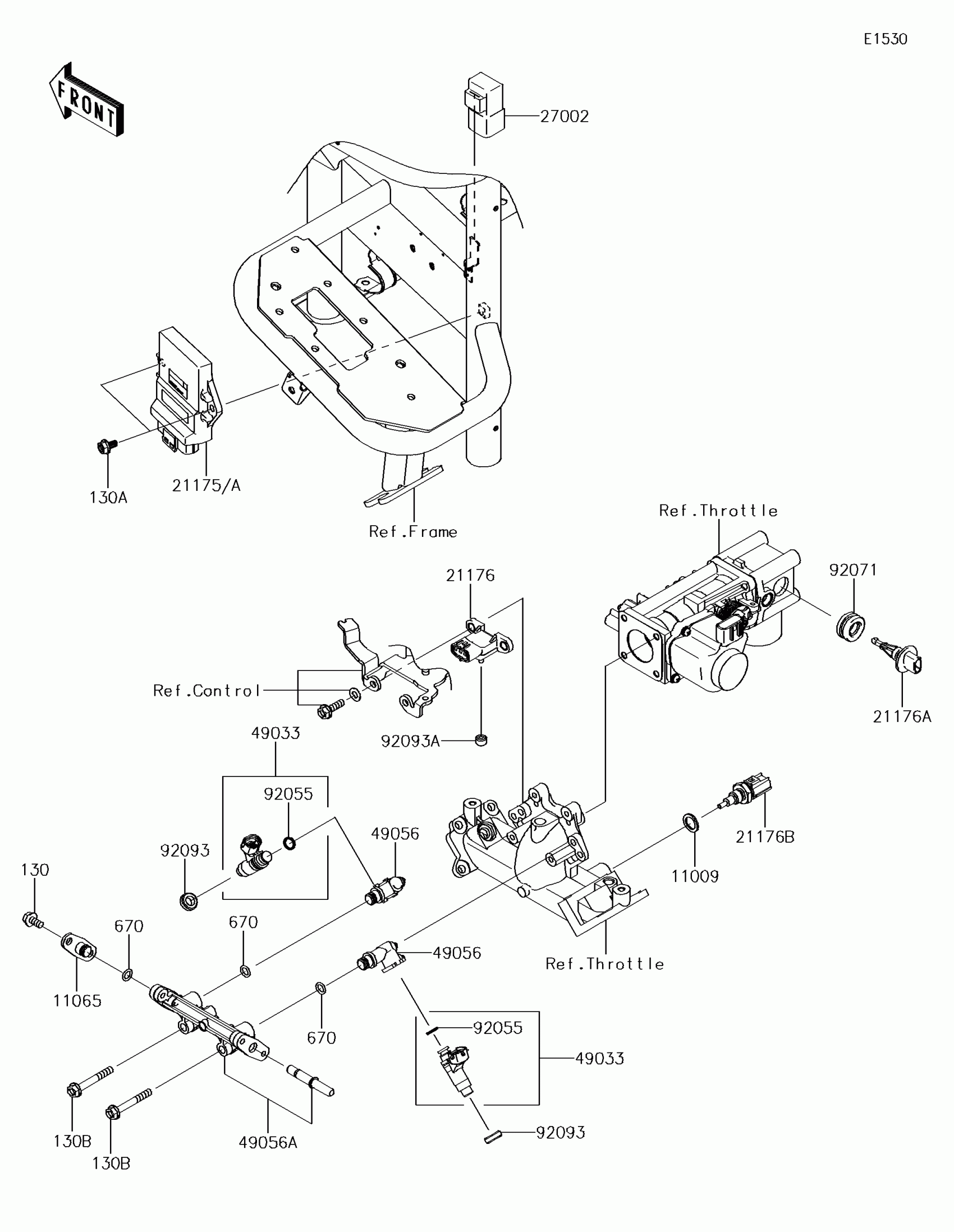

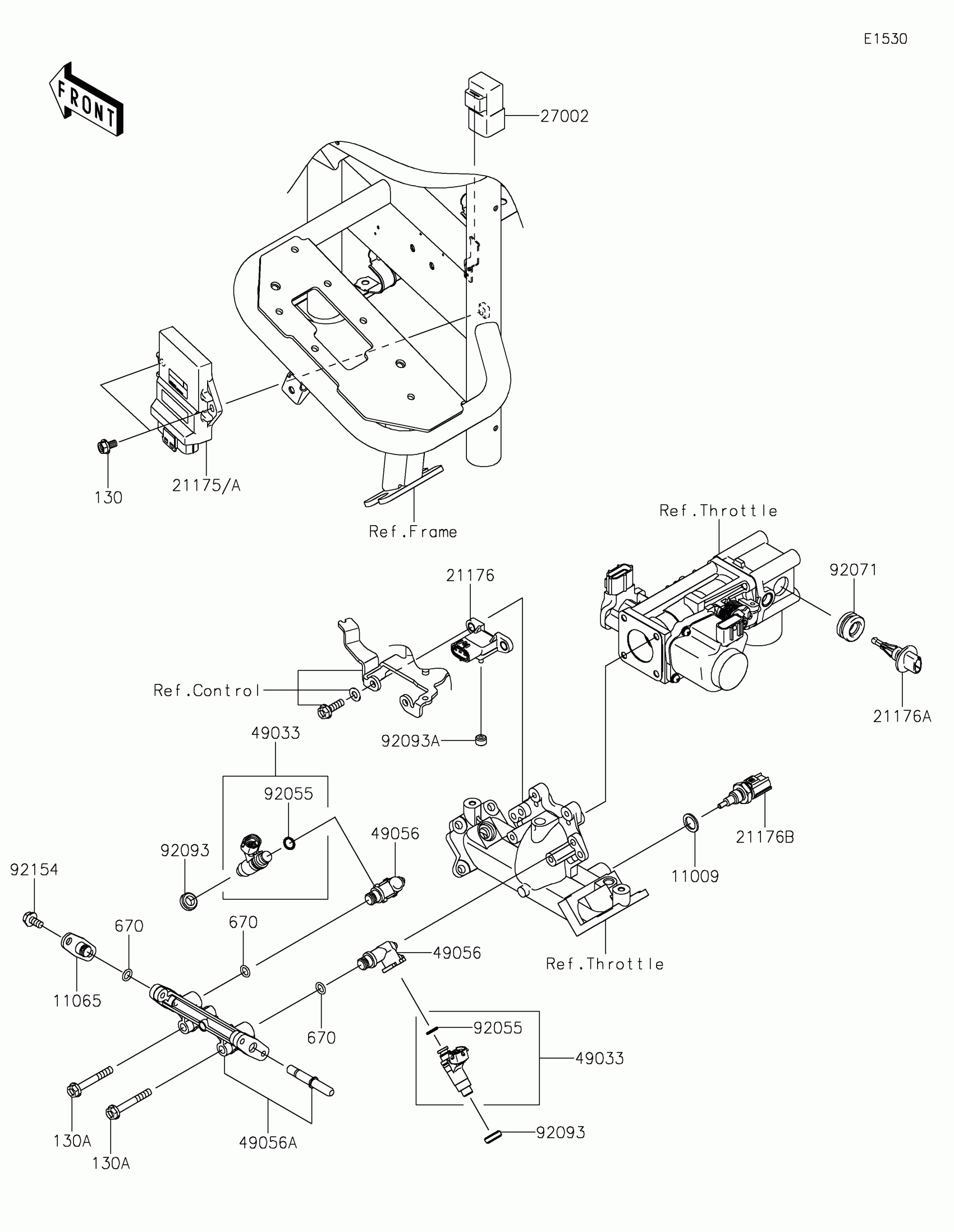

Kawasaki MULE™ 4010 TRANS4x4® CAMO Fuel Injection Diagram

Description

Price

11009

GASKET,12.5X18X1.5

11009-1376

$1.56

11065

CAP

11065-2129

$15.63

21175

CONTROL UNIT-ELECTRONIC,F.I.

21175-0332

$821.86

21175A

CONTROL UNIT-ELECTRONIC,F.I.

21175-1355

$821.86

21176

SENSOR,PRESSURE

21176-1095

$142.06

21176A

SENSOR,AIR TEMP

21176-2106

$22.55

21176B

SENSOR

21176-2111

$36.16

27002

RELAY-ASSY

27002-1088

$38.14

49033

NOZZLE-INJECTION

49033-2060

$141.07

49056

PIPE-INJECTION

49056-2062

$22.64

49056A

PIPE-INJECTION

49056-6003

$113.74

92055

RING-O,INJECTION NOZZLE

92055-1622

$1.64

92071

GROMMET

92071-2140

$3.51

92093

SEAL

92093-2119

$2.02

92093A

SEAL

92093-2127

$1.39

130

BOLT-FLANGED,6X12

130BA0612

$1.46

130A

BOLT-FLANGED,6X16

130BB0616

$1.73

130B

BOLT-FLANGED,6X45

130CA0645

$1.29

670

O RING,8MM

670E1508

$1.53
