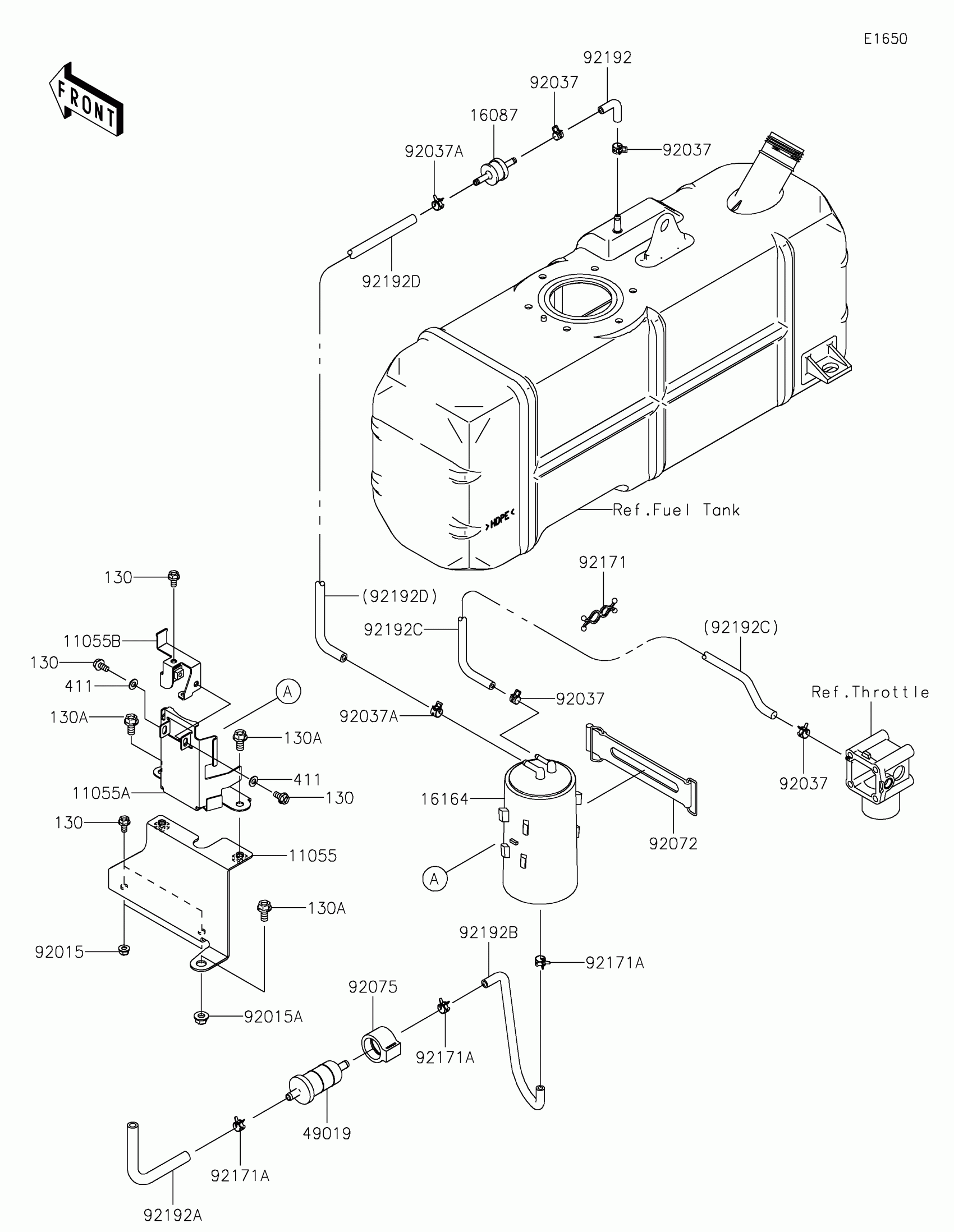

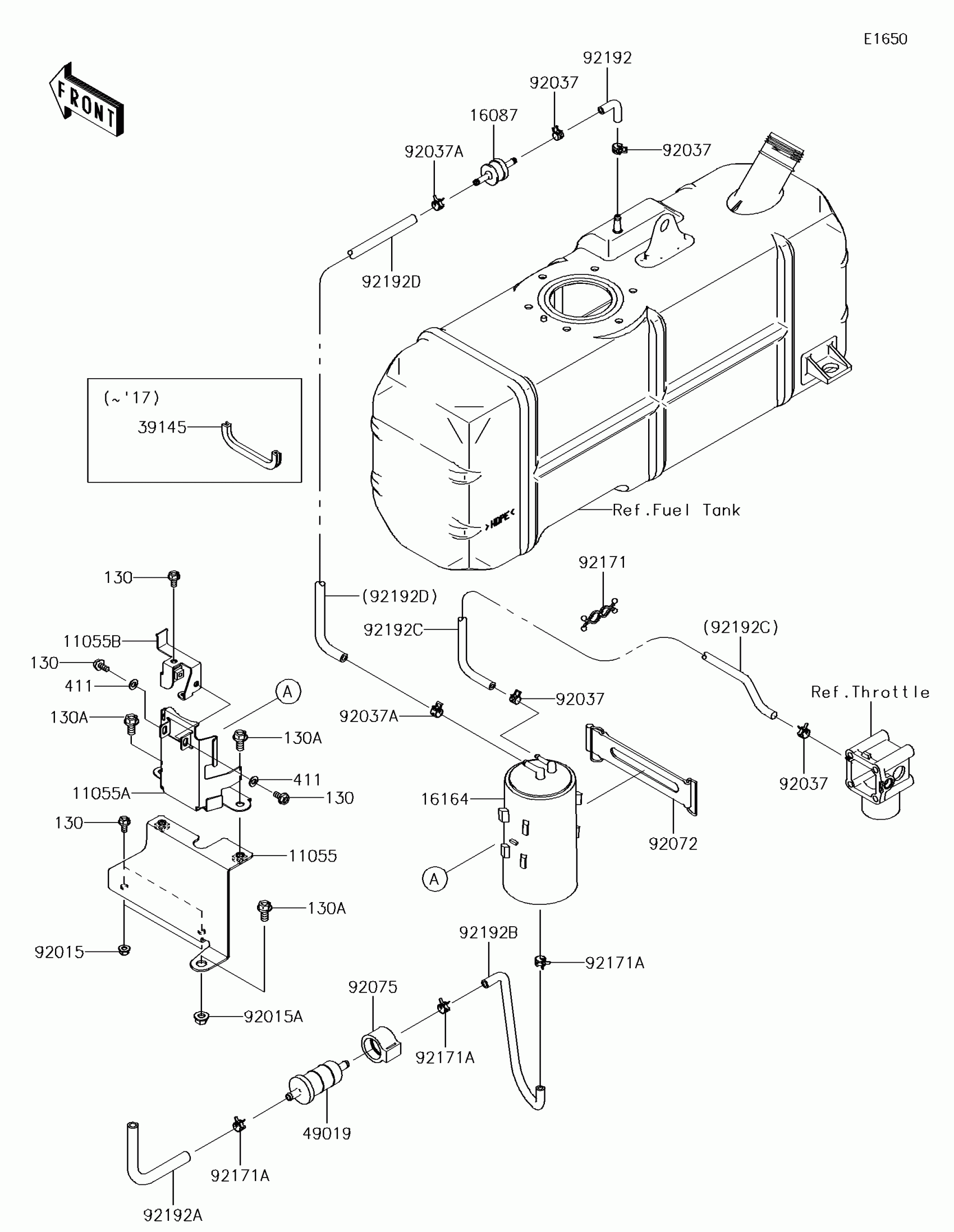

Kawasaki MULE™ 4010 TRANS4x4® CAMO Fuel Evaporative System Diagram

Description

Price

11055

BRACKET,LWR

11055-0262

$25.08

11055A

BRACKET,UPP

11055-0263

$23.24

11055B

BRACKET,UPP

11055-1126

$12.83

16087

VALVE-CHECK

16087-0703

$34.38

16164

CANISTER

16164-0013

$197.62

39145

TRIM-SEAL,L=110

39145-0034

$7.53

49019

FILTER-FUEL

49019-1055

$21.00

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.20

92015A

NUT,8MM

92015-1432

$5.21

92037

CLAMP,TUBE

92037-1461

$3.08

92037A

CLAMP,TUBE

92037-1505

$3.78

92072

BAND,L=168

92072-1306

$10.88

92075

DAMPER,FUEL FILTER

92075-1853

$9.78

92171

CLAMP

92171-0476

$3.51

92171A

CLAMP

92171-0515

$5.56

92192

TUBE,FUEL TANK-CHECK VALVE

92192-0067

$3.08

92192A

TUBE,FILTER-AIR

92192-0609

$5.32

92192B

TUBE,CANISTER-FUEL FILTER

92192-0620

$8.37

92192C

TUBE,4.5X9.5X2000

92192-0908

$30.27

92192D

TUBE

92192-1160

$5.90

130

BOLT-FLANGED,6X12

130BA0612

$1.46

130A

BOLT-FLANGED,8X16

130BA0816

$1.03

411

WASHER-PLAIN,6MM

411AA0600

$2.39
