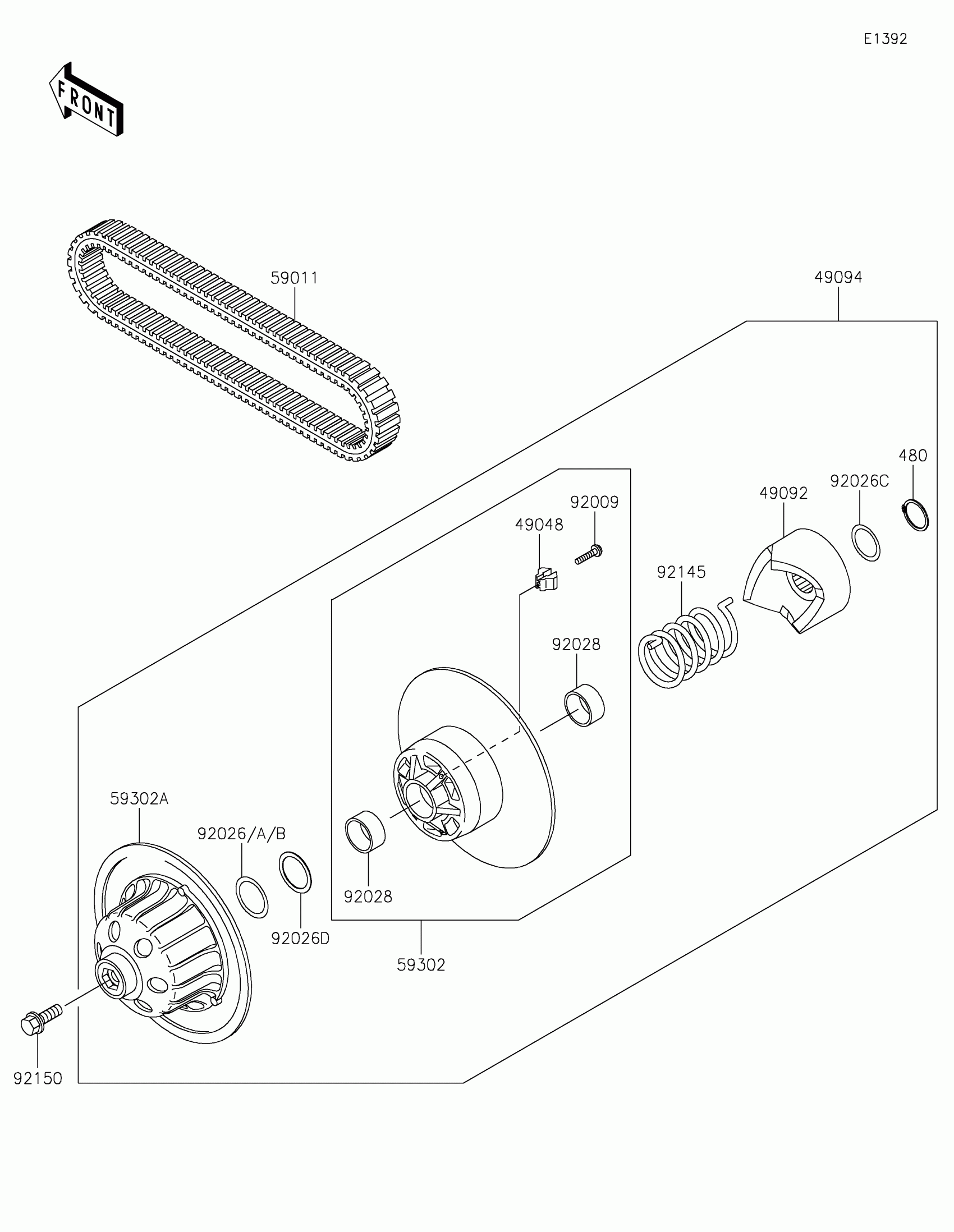

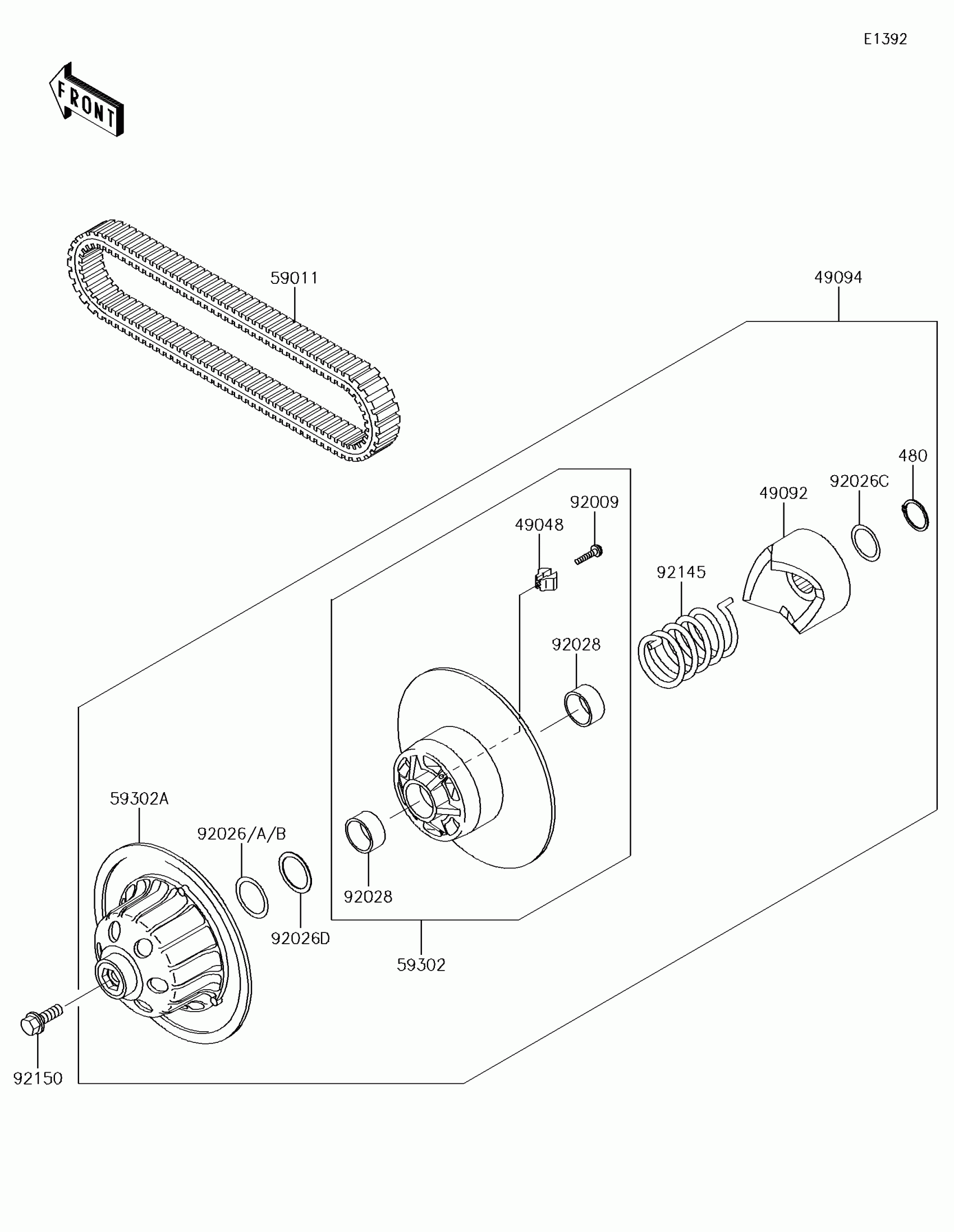

Kawasaki MULE™ 4010 TRANS4x4® CAMO Driven Converter/Drive Belt Diagram

Description

Price

49048

SHOE

49048-1060

$4.93

49092

RAMP

49092-1068

$48.95

49094

CONVERTER-ASSY-DRIVEN

49094-0045

$673.26

59011

BELT,CONVERTER

59011-1077

$120.71

59302

SHEAVE-COMP,MOVABLE

59302-0031

$342.79

59302A

SHEAVE-COMP

59302-0032

$373.41

92009

SCREW,SHOE

92009-1849

$2.03

92026

SPACER,39X50X0.50

92026-1507

$6.11

92026A

SPACER,39X50X0.60

92026-1508

$6.11

92026B

SPACER,39X50X0.80

92026-1510

$6.11

92026C

SPACER,34X44X0.80

92026-1521

$3.97

92026D

SPACER,39X49.5X1.0

92026-1603

$6.07

92028

BUSHING

92028-1864

$7.07

92145

SPRING

92145-1404

$10.59

92150

BOLT,12X35

92150-1009

$6.11

480

CIRCLIP

480J3400

$1.86
