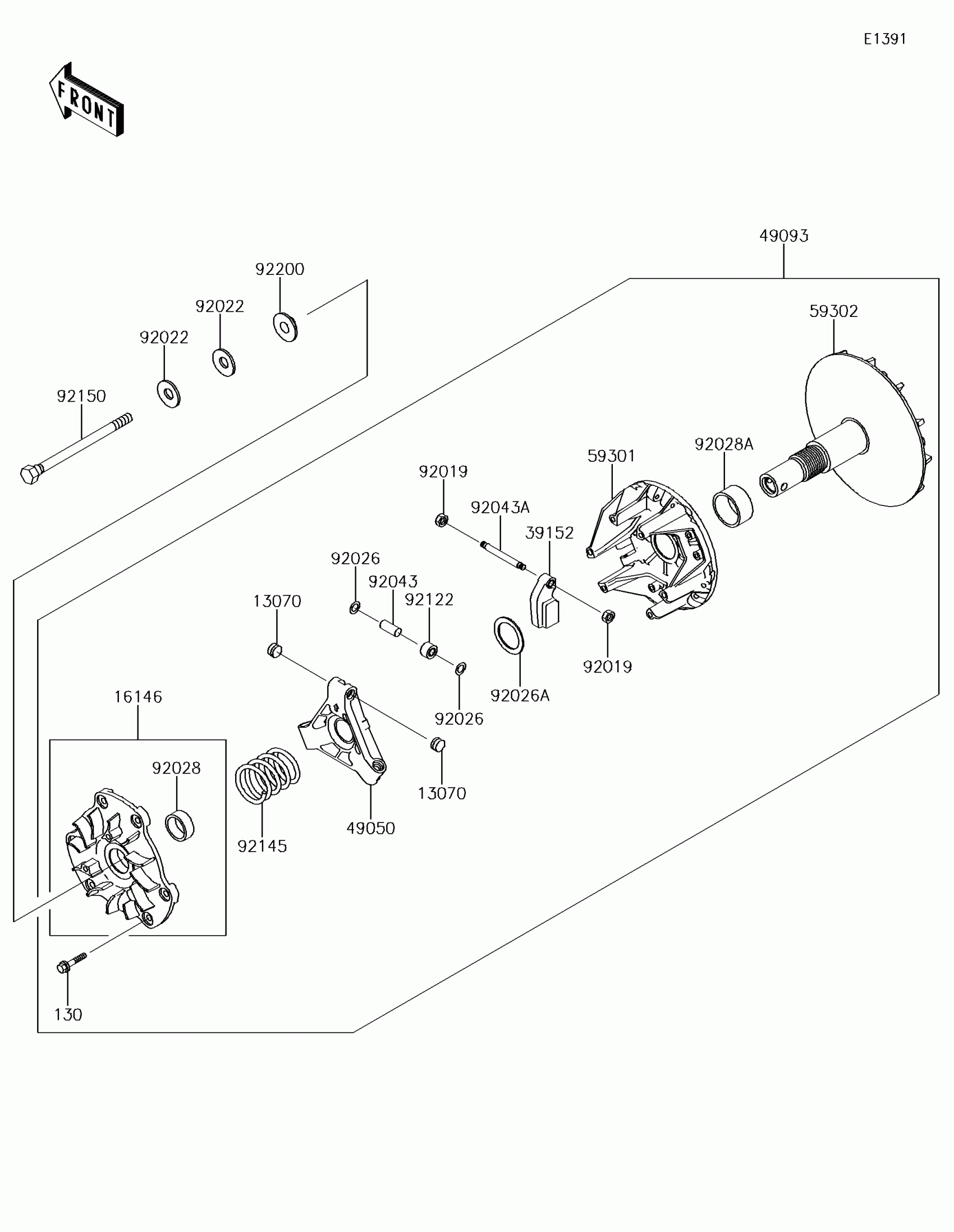

Kawasaki MULE™ 4010 TRANS4x4® CAMO Drive Converter Diagram

#

Description
Price

13070

GUIDE

13070-1330

$24.47

16146

COVER-ASSY

16146-1219

$146.10

39152

WEIGHT-RAMP

39152-1078

$43.17

49050

SPIDER

49050-0018

$122.66

49093

CONVERTER-ASSY-DRIVE

49093-0025

$1,016.01

59301

SHEAVE-MOVABLE

59301-0016

$242.27

59302

SHEAVE-COMP

59302-1085

$314.21

92019

NUT,LOCK,6MM

92019-008

$3.36

92022

WASHER,SPECIAL CONICAL

92022-1901

$5.21

92026

SPACER

92026-1512

$1.39

92026A

SPACER,32.3X44.3X3.6

92026-1591

$10.69

92028

BUSHING

92028-1861

$5.77

92028A

BUSHING

92028-1864

$7.07

92043

PIN

92043-1572

$3.14

92043A

PIN

92043-1573

$10.33

92122

ROLLER

92122-1204

$21.66

92145

SPRING,YELLOW PAINT

92145-0639

$27.34

92150

BOLT,12X163.5

92150-1008

$24.41

92200

WASHER

92200-1401

$13.15

130

BOLT-FLANGED,6X30

130CA0630

$2.05
