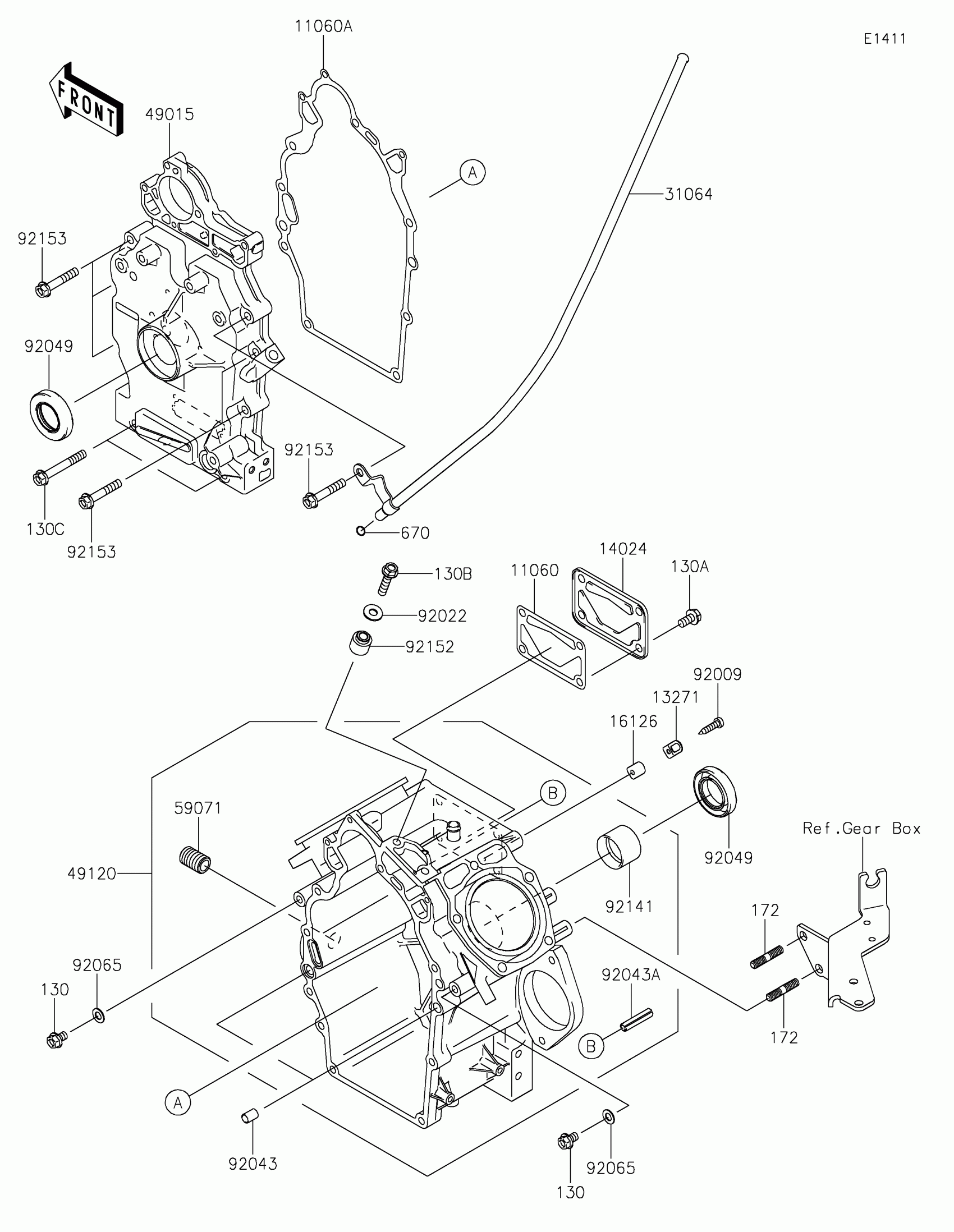

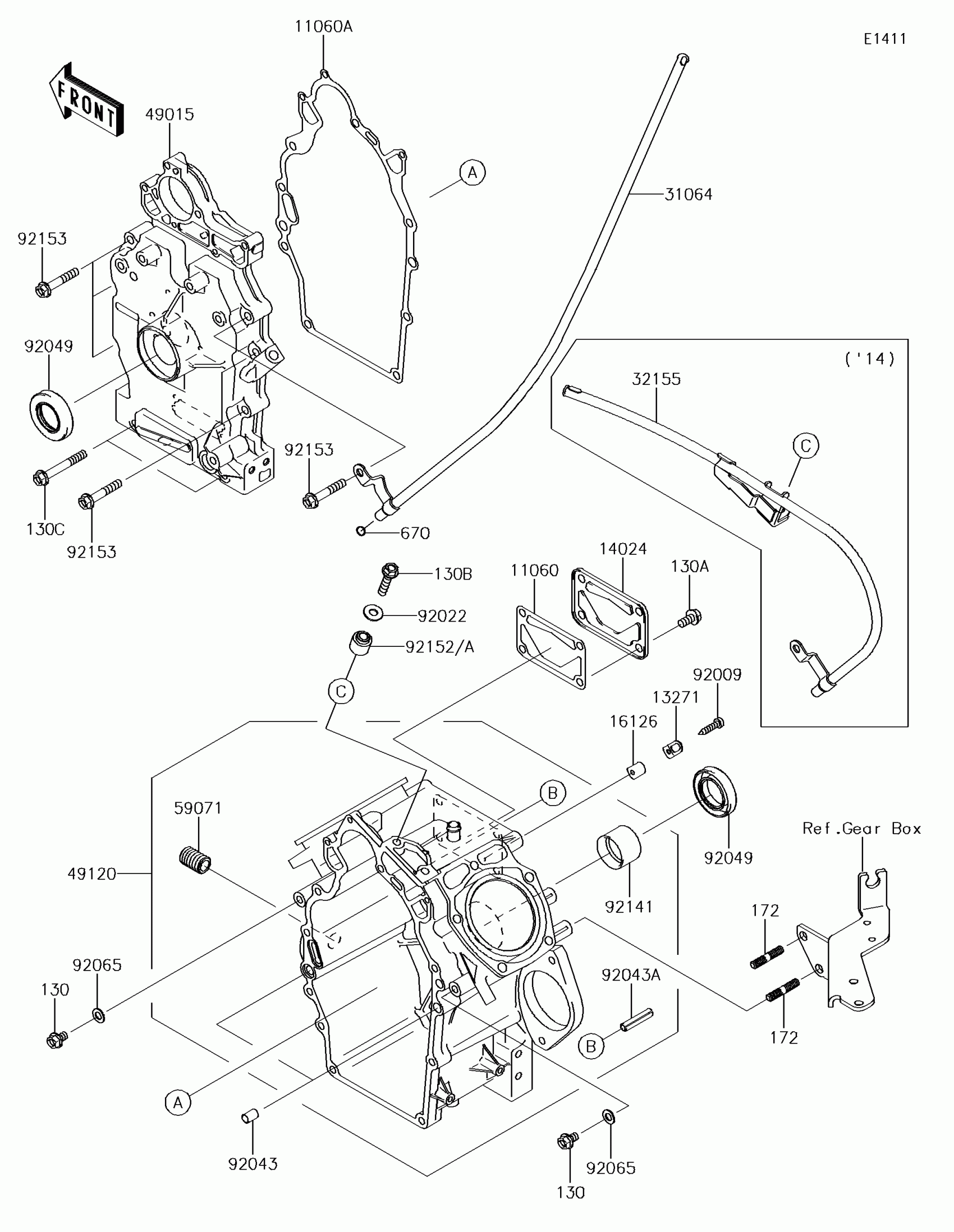

Kawasaki MULE™ 4010 TRANS4x4® CAMO Crankcase Diagram

Description

Price

11060

GASKET,BREATHER,COVER

11060-2089

$2.64

11060A

GASKET,CRANKCASE COVER

11060-2449

$18.17

13271

PLATE

13271-2054

$1.63

14024

COVER

14024-2292

$3.56

16126

VALVE

16126-2146

$0.68

31064

PIPE-COMP

31064-0655

$27.49

49015

COVER-CRANKCASE

49015-6324

$534.73

49120

CRANKCASE-COMP

49120-0847

$1,151.78

59071

JOINT

59071-7025

$2.00

92009

SCREW

92009-2308

$0.49

92022

WASHER,8.5X20X1.6

92022-1561

$3.43

92043

PIN,DOWEL,10X14

92043-1037

$0.76

92043A

PIN,2X25

92043-2227

$0.73

92049

SEAL-OIL

92049-2112

$4.88

92065

GASKET,8.5X16X1

92065-023

$2.74

92141

BEARING-PLANE

92141-2122

$5.66

92152A

COLLAR

92152-1901

$8.31

92153

BOLT,FLANGED,8X45

92153-2130

$1.49

130

BOLT-FLANGED,8X12

130AB0812

$0.76

130A

BOLT-FLANGED,8X16

130BA0816

$1.03

130B

BOLT-FLANGED,8X35

130BA0835

$1.31

130C

BOLT-FLANGED,8X60

130CA0860

$1.49

172

BOLT-STUD,8X25

172BA0825

$2.56

670

O RING,10MM

670B2010

$1.31
