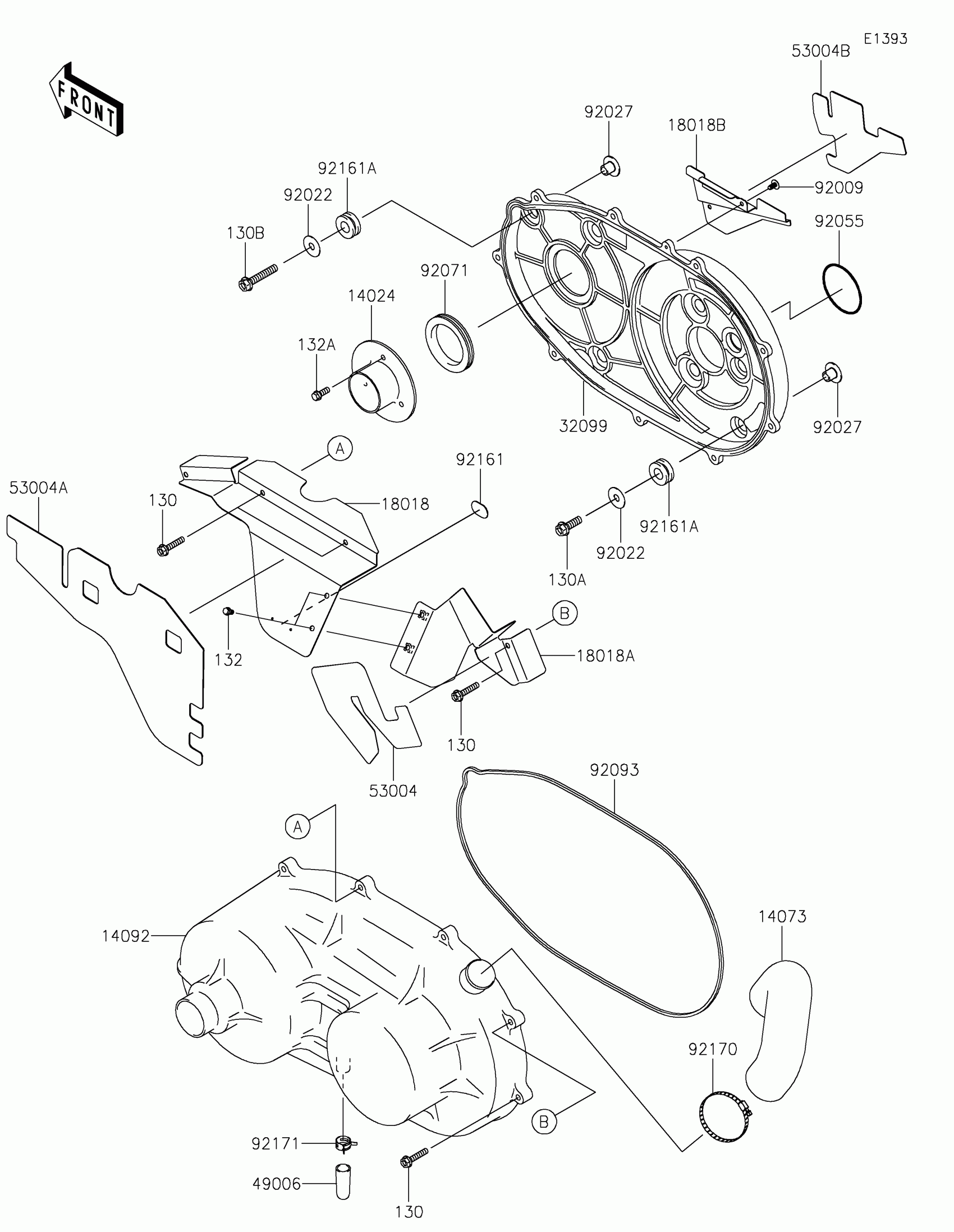

Kawasaki MULE™ 4010 TRANS4x4® CAMO Converter Cover Diagram

Description

Price

14024

COVER,FAN

14024-1554

$42.47

14073

DUCT,EXHAUST

14073-0234

$12.66

14092

COVER,BELT CONVERTER

14092-1035

$158.29

18018

PLATE-HEAT GUARD

18018-0019

$55.23

18018A

PLATE-HEAT GUARD

18018-0020

$46.36

18018B

PLATE-HEAT GUARD

18018-0021

$15.47

32099

CASE,BELT CONVERTER

32099-0730

$166.82

49006

BOOT

49006-1351

$5.98

53004

MAT

53004-0052

$6.83

53004A

MAT

53004-0053

$30.46

53004B

MAT

53004-0054

$5.71

92009

SCREW,TAPPING,5X10

92009-1332

$3.12

92022

WASHER SEAL PLATE

92022-101

$3.85

92027

COLLAR

92027-4015

$8.44

92055

RING-O,CRANKCASE SIDE

92055-1395

$3.87

92071

GROMMET,CONVERTER CASE

92071-1212

$7.94

92093

SEAL,BELT CONVERTER COVER

92093-0582

$13.03

92161

DAMPER

92161-0406

$2.42

92161A

DAMPER

92161-1484

$1.58

92170

CLAMP

92170-1764

$9.09

92171

CLAMP

92171-1277

$2.25

130

BOLT-FLANGED,6X30

130BA0630

$1.31

130A

BOLT-FLANGED,8X25

130BA0825

$2.34

130B

BOLT-FLANGED,8X45

130BA0845

$1.39

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.47

132A

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.21
