Description

Price

11012

CAP

11012-1784

$5.00

11065

CAP

11065-0126

$2.71

13107

SHAFT

13107-0082

$60.07

13168

LEVER

13168-0090

$9.53

13272A

PLATE,SIDE,FR,LH,CAMOUFLAGE

13272-0501-42J

$178.48

13272C

PLATE,SIDE,FR,RH,CAMOUFLAGE

13272-0502-42J

$178.48

13272E

PLATE,SIDE,RR,LH,CAMOUFLAGE

13272-1233-42J

$290.50

13272G

PLATE,SIDE,RR,RH,CAMOUFLAGE

13272-1234-42J

$290.50

27012

HOOK,TAIL GATE

27012-0022

$5.09

32085

STOPPER

32085-7501

$6.61

35011

STAY,CARRIER STOPPER

35011-1648

$29.46

53004

MAT,CARRIER

53004-0031

$118.09

53004A

MAT,CARRIER

53004-0032

$118.09

53004B

MAT

53004-7501

$114.34

53009

HINGE,CARRIER

53009-7501

$47.50

53029

CARRIER,BASE PLATE,F.BLACK

53029-0313-21

$903.91

53045A

HOOK-ASSY,TAIL GATE

53045-0031

$26.84

53062A

GATE-TAIL,CAMOUFLAGE

53062-7503-42J

$674.37

92009

SCREW,TAPPING,6X16

92009-1166

$4.36

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$3.43

92022

WASHER,7X18X1.2

92022-1545

$0.97

92039

RIVET

92039-1150

$3.53

92043

PIN,12X65

92043-1428

$8.01

92075

DAMPER

92075-1817

$4.93

92139

BUSHING,REAR SCREEN

92139-7501

$4.14

92145

SPRING,TENSIONER

92145-1215

$3.67

92161

DAMPER

92161-0258

$3.32

92161A

DAMPER

92161-7510

$3.46

92190

TUBE,13X16X200

92190-1401

$4.63

92210

NUT,FLANGED,8MM

92210-0555

$1.71

130

BOLT-FLANGED,6X30

130BA0630

$1.31

130A

BOLT-FLANGED,8X20

130BB0820

$0.83

130B

BOLT-FLANGED,8X30

130BB0830

$3.56

130C

BOLT-FLANGED,8X50

130BB0850

$3.75

220

SCREW-PAN-CROS,6X10

220AB0610

$1.54

554

PIN-SNAP,12MM

554DA1200

$2.74

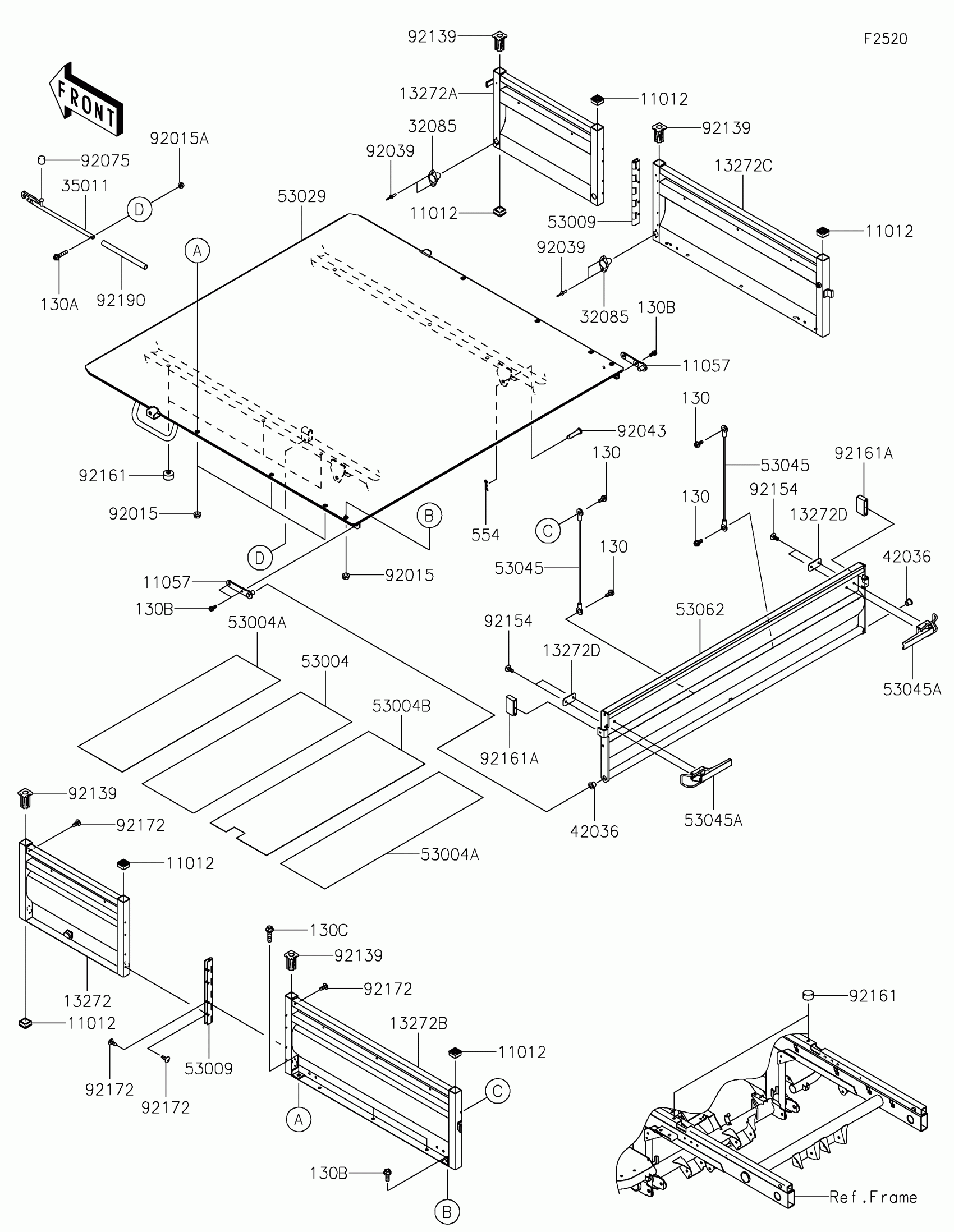

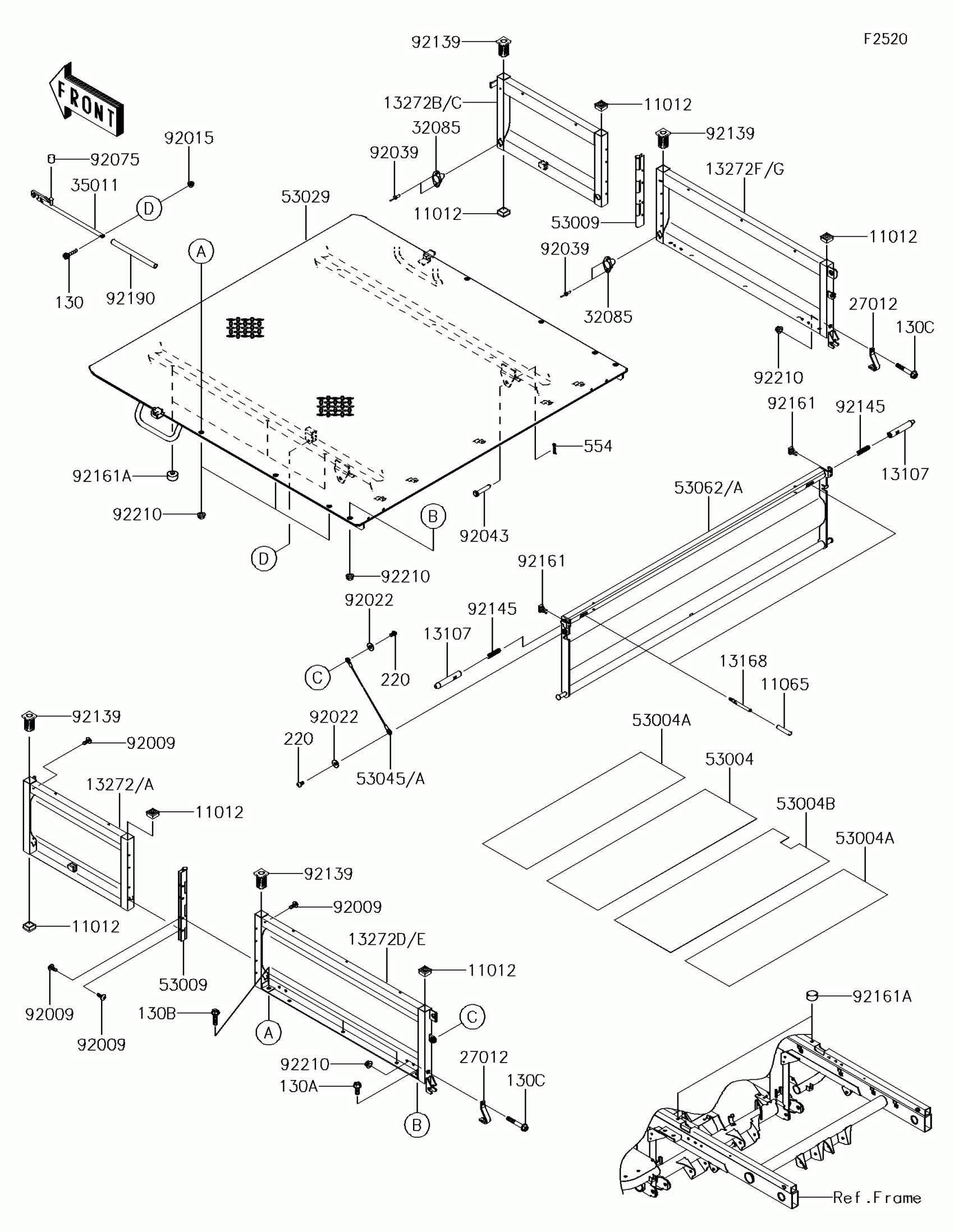

Kawasaki MULE™ 4010 TRANS4x4® CAMO Carrier(s) Diagram
