2013 Kawasaki Mule™ 4010 Diesel 4x4 Generator Diagram

← All diagrams

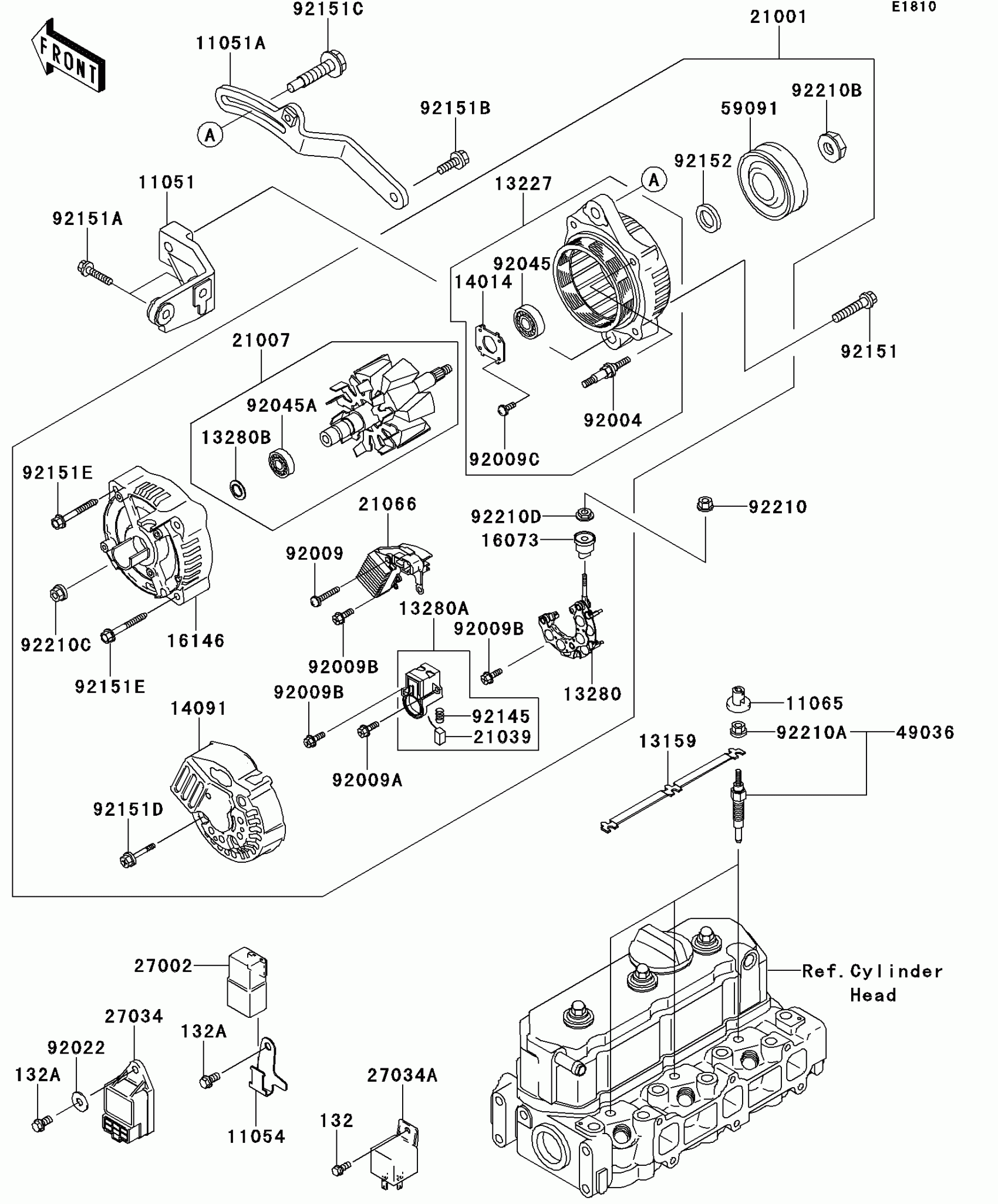

Find the part on the Generator diagram for your 2013 Kawasaki Mule™ 4010 Diesel 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Kawasaki Mule™ 4010 Diesel 4x4 Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11051

BRACKET,LWR

11051-1568

1
Out of stock

11051A

BRACKET,UPP

11051-1569

1
Out of stock

11054

BRACKET

11054-7512

1

$20.03

In stock

11065

CAP,GLOW

11065-1150

1
Out of stock

13159

CONNECTOR

13159-1066

1
Out of stock

13227

HOUSING,ALTERNATOR

13227-1139

1
Out of stock

13280

HOLDER,RECTIFIER

13280-1173

1

$445.85

In stock

13280A

1

$84.50

In stock

13280B

HOLDER,BEARING

13280-1175

1

$7.22

In stock

14014

PLATE-POSITION

14014-1149

1

$13.69

In stock

14091

COVER,REAR END

14091-1207

1
Out of stock

16073

INSULATOR

16073-1122

1
Out of stock

16146

COVER-ASSY,RECTIFIER

16146-1214

1
Out of stock

21001

GENERATOR

21001-1176

1
Out of stock

21007

ROTOR,ALTERNATOR

21007-1368

1
Out of stock

21039

BRUSH

21039-1068

1
Out of stock

21066

REGULATOR-VOLTAGE

21066-1122

1
Out of stock

27002

RELAY-ASSY

27002-1086

1
Out of stock

27034

RELAY,HEATING TIMER

27034-0003

1
Out of stock

27034A

RELAY,GLOW

27034-1066

1
Out of stock

49036

PLUG-GLOW

49036-0001

1
Out of stock

59091

PULLEY,ALTERNATOR

59091-1106

1
Out of stock

92004

STUD,ALTERNATOR HOUSING

92004-1273

1
Out of stock

92009

SCREW

92009-1921

1
Out of stock

92009A

SCREW

92009-1922

1
Out of stock

92009B

SCREW

92009-1923

1
Out of stock

92009C

SCREW,POSITION PLATE

92009-1924

1
Out of stock

92022

WASHER,7X18X1.2

92022-1545

1
Out of stock

92045

BEARING-BALL,373

92045-1398

1
Out of stock

92045A

BEARING-BALL,6002DG6

92045-1399

1
Out of stock

92145

SPRING,ALTERNATOR BRUSH

92145-1312

1
Out of stock

92151

BOLT,10X40

92151-1691

1
Out of stock

92151A

BOLT,8X25

92151-1692

1
Out of stock

92151B

BOLT,8X20

92151-1693

1
Out of stock

92151C

BOLT,8X45

92151-1694

1
Out of stock

92151D

BOLT

92151-1715

1
Out of stock

92151E

BOLT

92151-1716

1
Out of stock

92152

COLLAR

92152-1230

1
Out of stock

92210

NUT,6MM

92210-1210

1
Out of stock

92210A

NUT,GLOW PLUG,4MM

92210-1218

1
Out of stock

92210B

NUT,PULLEY

92210-1232

1
Out of stock

92210C

NUT

92210-1233

1
Out of stock

92210D

NUT

92210-1234

1
Out of stock

132

1

$2.92

In stock

132A

1

$1.73

In stock
