2013 Kawasaki Mule™ 4010 Diesel 4x4 Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 2013 Kawasaki Mule™ 4010 Diesel 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

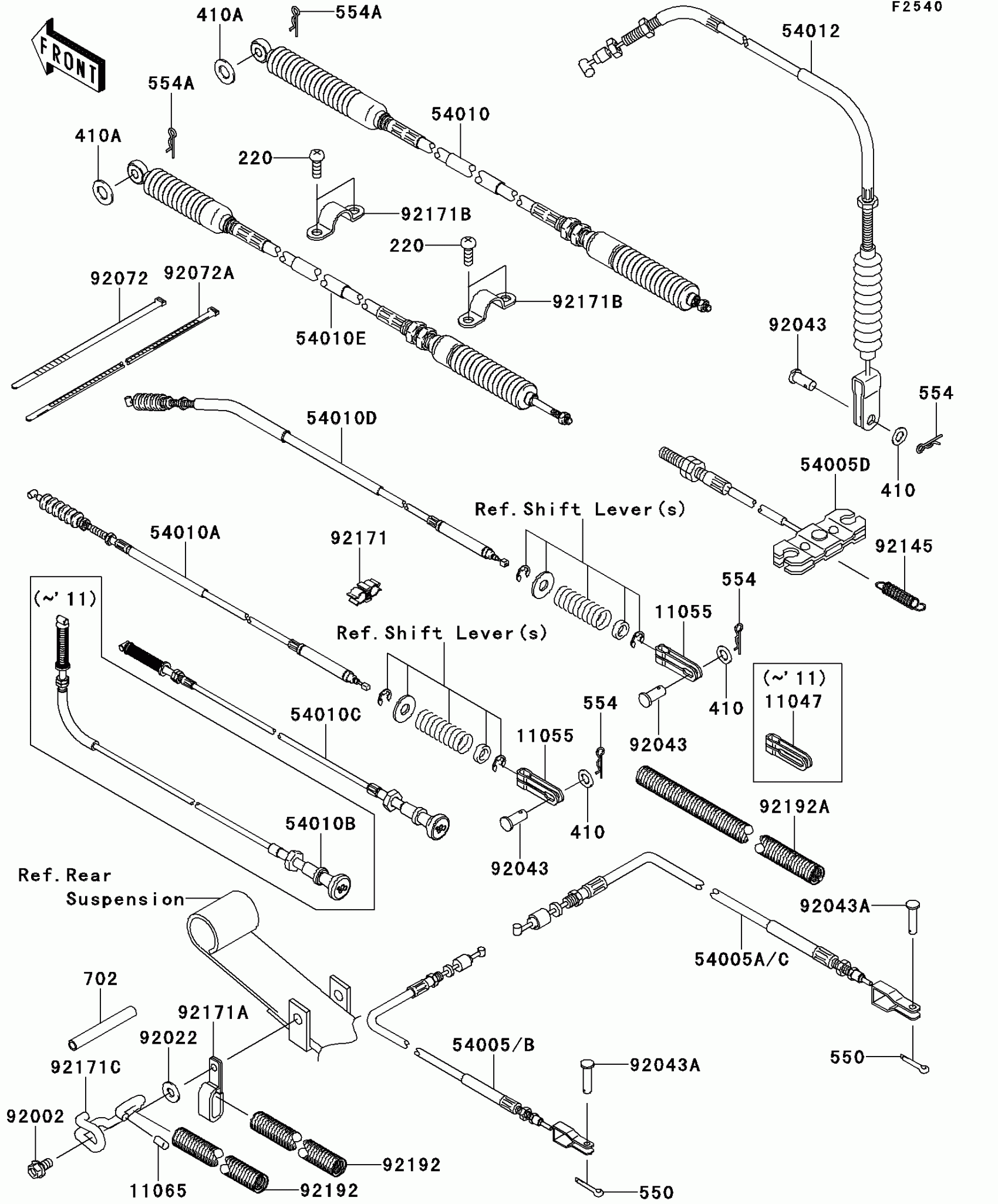

2013 Kawasaki Mule™ 4010 Diesel 4x4 Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11047

BRACKET,DIFF LOCK

11047-1043

1
Out of stock

11055

BRACKET,DIFF LOCK

11055-7505

1

$9.02

In stock

11065

CAP

11065-7505

1
Out of stock

54005

CABLE-BRAKE,PARKING,RR,LH

54005-0023

1
Out of stock

54005A

CABLE-BRAKE,PARKING,RR,RH

54005-0025

1
Out of stock

54005B

CABLE-BRAKE,PARKING,RR,LH

54005-0306

1
Out of stock

54005C

CABLE-BRAKE,PARKING,RR,RH

54005-0308

1
Out of stock

54005D

CABLE-BRAKE,PARKING,FR

54005-1198

1
Out of stock

54010

CABLE,SHIFT CONTROL

54010-0006

1
Out of stock

54010A

CABLE,2-4WD

54010-0044

1
Out of stock

54010B

CABLE,HOOD

54010-0089

1
Out of stock

54010C

CABLE,HOOD

54010-0131

1
Out of stock

54010D

CABLE,DIFF LOCK

54010-1120

1
Out of stock

54010E

CABLE,HI-LOW

54010-1124

1
Out of stock

54012

CABLE-THROTTLE

54012-1613

1

$47.75

In stock

92002

BOLT,8X14

92002-1589

1
Out of stock

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

1
Out of stock

92043

PIN,6X11

92043-092

1
Out of stock

92043A

PIN

92043-1039

1
Out of stock

92072

BAND,L=188

92072-1239

1
Out of stock

92072A

BAND,L=368.3

92072-3872

1
Out of stock

92145

SPRING

92145-7506

1
Out of stock

92171

CLAMP

92171-0129

1

$3.33

In stock

92171A

CLAMP,CABLE

92171-0176

1

$4.81

In stock

92171B

CLAMP

92171-1203

1
Out of stock

92171C

CLAMP,BRAKE CABLE

92171-1210

1
Out of stock

92192

TUBE,CORRUGATED,13X16.7X240

92192-1243

1
Out of stock

92192A

TUBE,PROTECTOR,13.2X17.5X350

92192-3715

1
Out of stock

220

SCREW-PAN-CROS,5X14

220AA0514

1
Out of stock

410

WASHER-PLAIN-SMALL

410AA0600

1
Out of stock

410A

WASHER-PLAIN-SMALL,8MM

410AA0800

1
Out of stock

550

PIN-COTTER,2.0X22

550AA2022

1
Out of stock

554

PIN-SNAP,1.2X21.2

554DA0600

1
Out of stock

554A

PIN-SNAP

554DA0800

1
Out of stock

702

TUBE-RUBBER,5X8X55

702A0555

1
Out of stock
