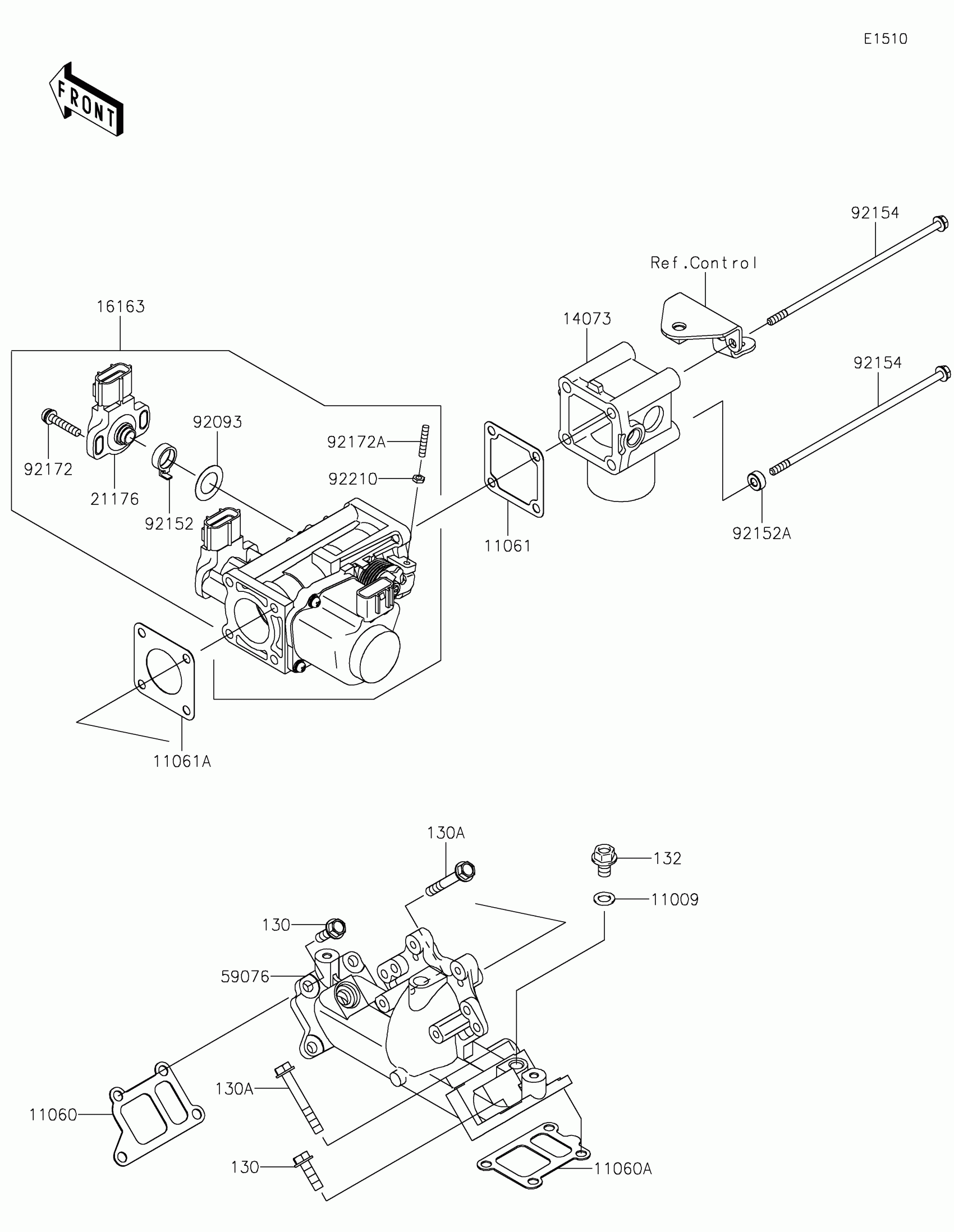

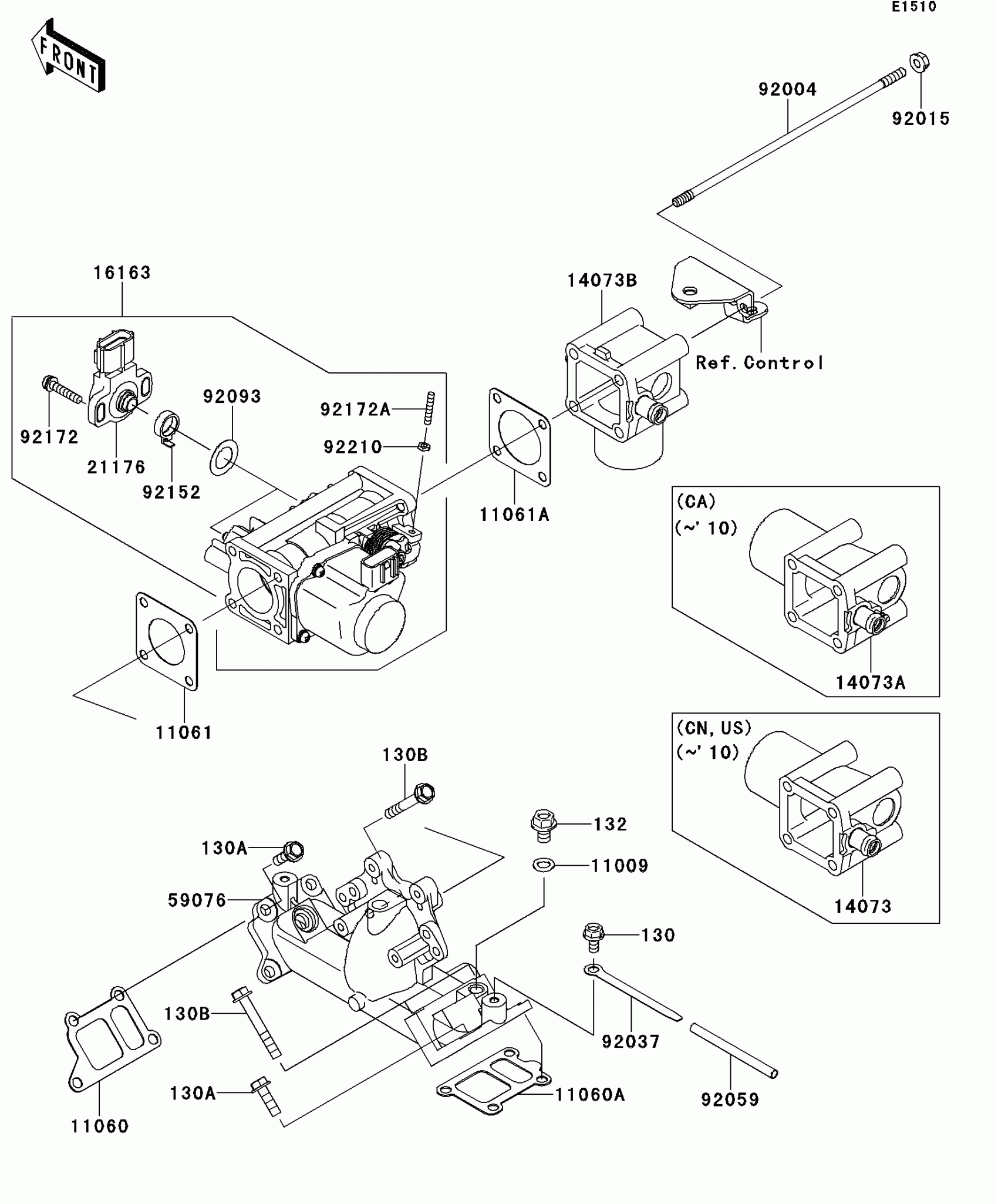

Kawasaki MULE™ 4010 4x4 Throttle Diagram

Description

Price

11009

GASKET,8.2X14X1.0

11009-1344

$2.11

11060

GASKET,INTAKE MANIFOLD

11060-2087

$2.28

11060A

GASKET,INTAKE MANIFOLD

11060-2088

$1.95

11061

GASKET

11061-2179

$2.56

11061A

GASKET

11061-2180

$2.56

14073B

DUCT

14073-2100

$114.62

16163

THROTTLE-ASSY

16163-2072

Unavailable

21176

SENSOR

21176-2112

$144.15

59076

MANIFOLD-INTAKE

59076-2092

$281.73

92004

STUD,6X200

92004-2161

$5.02

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92037

CLAMP

92037-2006

$1.00

92059

TUBE,5X6X75

92059-2011

$0.81

92093

SEAL

92093-2133

$6.30

92152

COLLAR

92152-2093

$5.63

92172

SCREW

92172-0254

$2.09

92172A

SCREW

92172-2106

$4.03

92210

NUT

92210-2120

$1.39

130

BOLT-FLANGED,6X12

130AA0612

$0.63

130A

BOLT-FLANGED,6X20

130AA0620

$1.28

130B

BOLT-FLANGED,6X45

130AA0645

$0.85

132

BOLT-FLANGED-SMALL,8X12

132BB0812

$1.54
