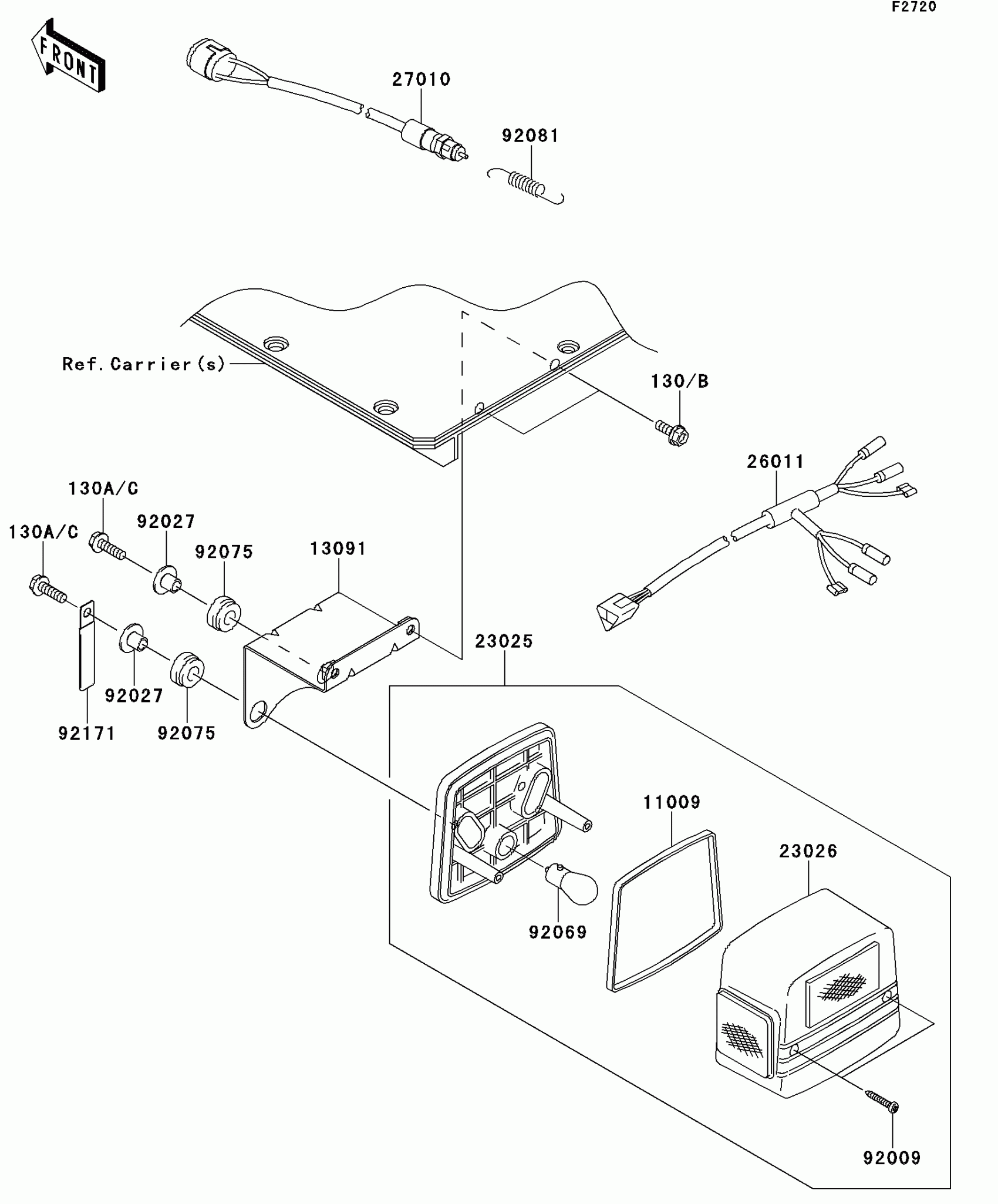

Kawasaki MULE™ 4010 4x4 Taillight(s) Diagram

Description

Price

11009

GASKET,TAIL LAMP

11009-1215

$6.98

13091

HOLDER,TAIL LAMP

13091-1743

$11.29

23025

LAMP-TAIL

23025-1042

$114.34

23026

LENS,TAIL LAMP

23026-1019

$47.04

26011

WIRE-LEAD

26011-1756

$69.57

27010

SWITCH,BRAKE LAMP

27010-1301

$42.42

92009

SCREW,TAPPING,4X25

92009-1069

$3.53

92027

COLLAR

92027-194

$4.37

92069

BULB,12V 21/5W

92069-1011

$6.02

92075

DAMPER

92075-277

$2.20

92081

SPRING,HOOK RETURN

92081-1466

$6.75

92171

CLAMP,L=60

92171-0652

$2.15

130

BOLT-FLANGED,6X16

130BA0616

$1.12

130A

BOLT-FLANGED,6X20

130BA0620

$1.49

130B

BOLT-FLANGED,6X16

130BB0616

$1.73

130C

BOLT-FLANGED,6X20

130BB0620

$0.50
