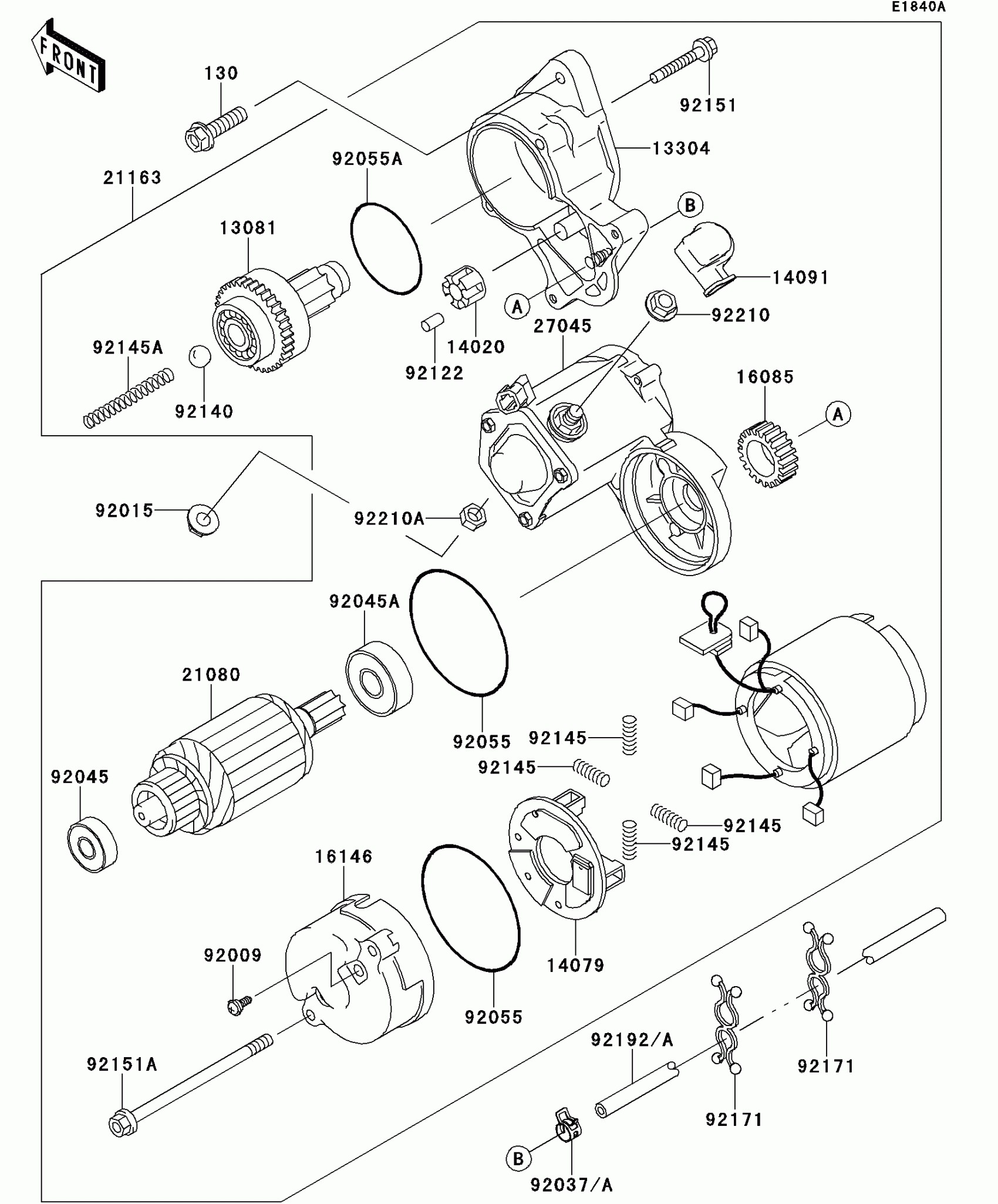

Kawasaki MULE™ 4010 4x4 Starter Motor(FD620DE485833-) Diagram

Description

Price

13081

CLUTCH-ASSY

13081-2231

$133.68

13304

HOUSING-ASSY

13304-2253

$284.55

14020

RETAINER

14020-2112

$10.73

14079

HOLDER-ASSY

14079-2064

$84.26

14091

COVER

14091-2080

$5.34

16085

GEAR

16085-2055

$41.60

16146

COVER-ASSY

16146-2243

$103.79

21080

ARMATURE

21080-2070

$428.25

21163

STARTER-ELECTRIC

21163-2134

$712.18

27045

SWITCH-ASSY

27045-2020

$445.77

92009

SCREW

92009-2455

$2.29

92015

NUT,8MM

92015-1143

$0.57

92037A

CLAMP

92037-2113

$0.97

92045

BEARING-BALL,60102RKMDSH2C3

92045-2257

$26.00

92045A

BEARING-BALL

92045-2258

$34.29

92055

RING-O

92055-2199

$7.51

92055A

RING-O

92055-2200

$4.42

92122

ROLLER

92122-2057

$2.00

92140

BALL

92140-2061

$1.98

92145

SPRING

92145-2096

$3.25

92145A

SPRING

92145-2097

$3.25

92151

BOLT

92151-2167

$2.00

92151A

BOLT

92151-2168

$12.58

92171

CLAMP

92171-0476

$3.51

92192A

TUBE,4.7X9.5X1000

92192-0937

$6.00

92210

NUT

92210-2084

$5.39

92210A

NUT

92210-2085

$3.80

130

BOLT-FLANGED,8X30

130CA0830

$0.86
