2018 Kawasaki Mule™ 4010 4x4 SE Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2018 Kawasaki Mule™ 4010 4x4 SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

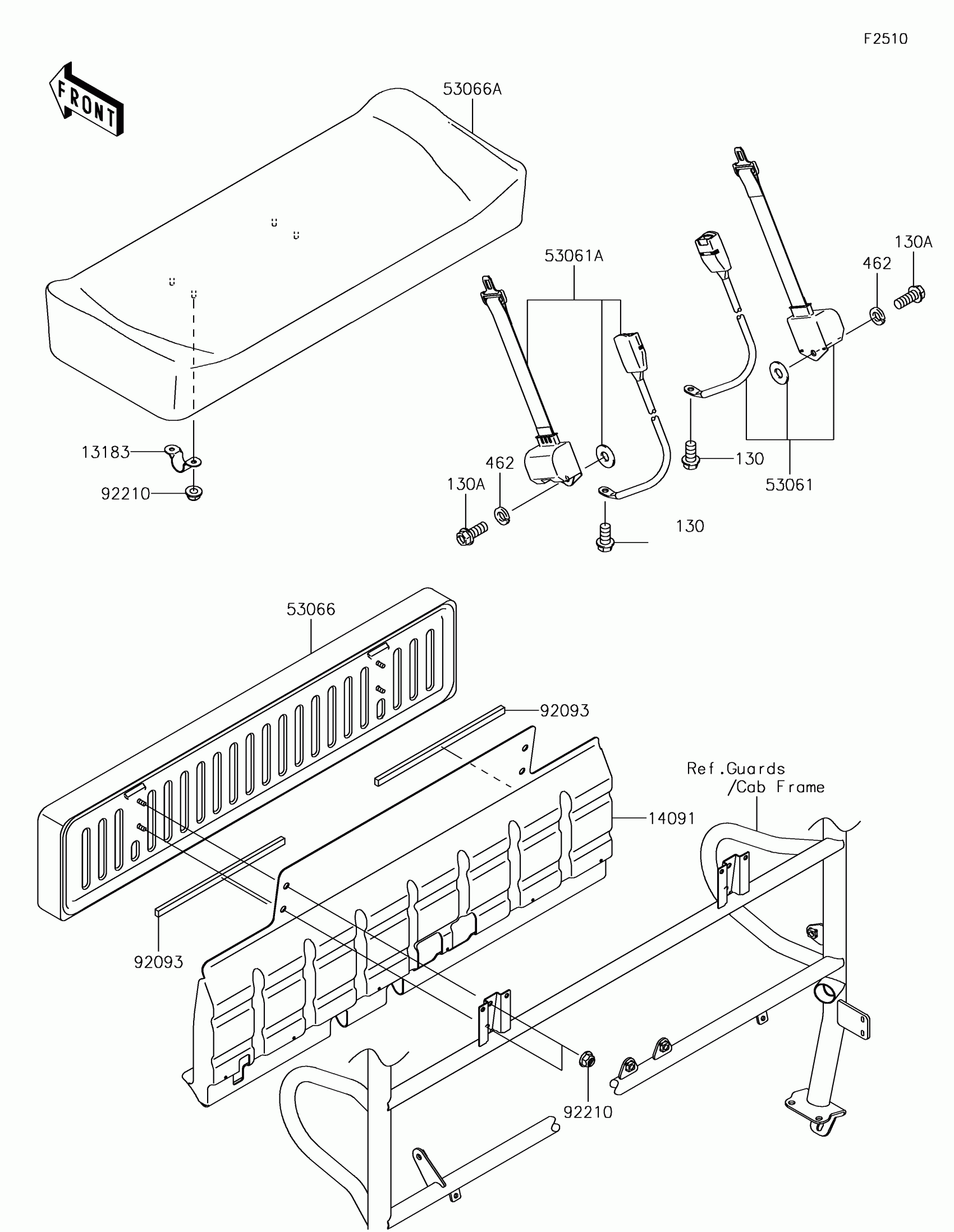

2018 Kawasaki Mule™ 4010 4x4 SE Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13183

PLATE,SEAT

13183-1400

1
Out of stock

14091

COVER,SEAT BACK

14091-0529

1
Out of stock

53061

BELT-SEAT,FR,RH

53061-0315

1

$114.22

In stock

53061A

BELT-SEAT,FR,LH

53061-0316

1

$114.22

In stock

53066

SEAT-ASSY,BACK,BLACK

53066-0241-MA

1

$488.61

In stock

53066A

SEAT-ASSY,FR,LWR,BLACK

53066-0274-MA

1
Out of stock

92093

SEAL,L=408

92093-0024

1
Out of stock

92210

NUT,FLANGED,LOCK,8MM

92210-0005

1
Out of stock

130

BOLT-FLANGED,12X20

130BA1220

1

$2.97

In stock

130A

BOLT-FLANGED,12X25

130BB1225

1

$4.01

In stock

462

WASHER-SPRING,12MM

462DB1200

1
Out of stock
