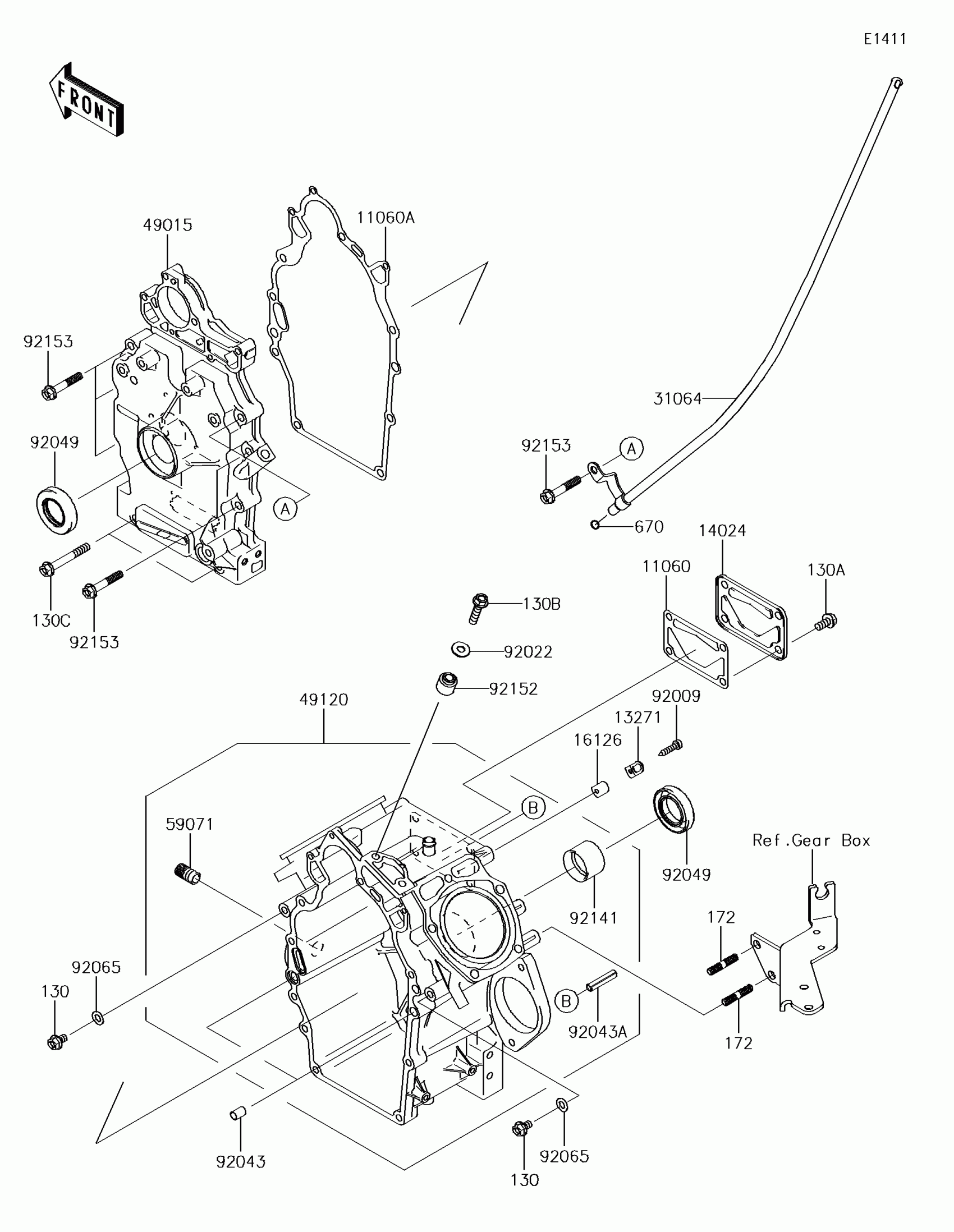

Kawasaki MULE™ 4010 4x4 SE Crankcase Diagram

Description

Price

11060

GASKET,BREATHER,COVER

11060-2089

$2.54

11060A

GASKET,CRANKCASE COVER

11060-2449

$15.68

13271

PLATE

13271-2054

$1.63

14024

COVER

14024-2292

$3.56

16126

VALVE

16126-2146

$0.59

31064

PIPE-COMP

31064-0655

$26.38

49015

COVER-CRANKCASE

49015-6324

$534.73

49120

CRANKCASE-COMP

49120-0847

$1,151.78

59071

JOINT

59071-0733

$2.00

92009

SCREW

92009-2308

$0.46

92022

WASHER,8.5X20X1.6

92022-1561

$3.29

92043

PIN,DOWEL,10X14

92043-1037

$0.66

92043A

PIN,2X25

92043-2227

$0.73

92049

SEAL-OIL

92049-2112

$4.61

92065

GASKET,8.5X16X1

92065-023

$2.63

92141

BEARING-PLANE

92141-2122

$5.26

92152

COLLAR

92152-1901

$8.31

92153

BOLT,FLANGED,8X45

92153-2130

$1.28

130

BOLT-FLANGED,8X12

130AB0812

$0.66

130A

BOLT-FLANGED,8X16

130BA0816

$0.89

130B

BOLT-FLANGED,8X35

130BA0835

$1.13

130C

BOLT-FLANGED,8X60

130CA0860

$1.28

172

BOLT-STUD,8X25

172BA0825

$2.46

670

O RING,10MM

670B2010

$1.13
