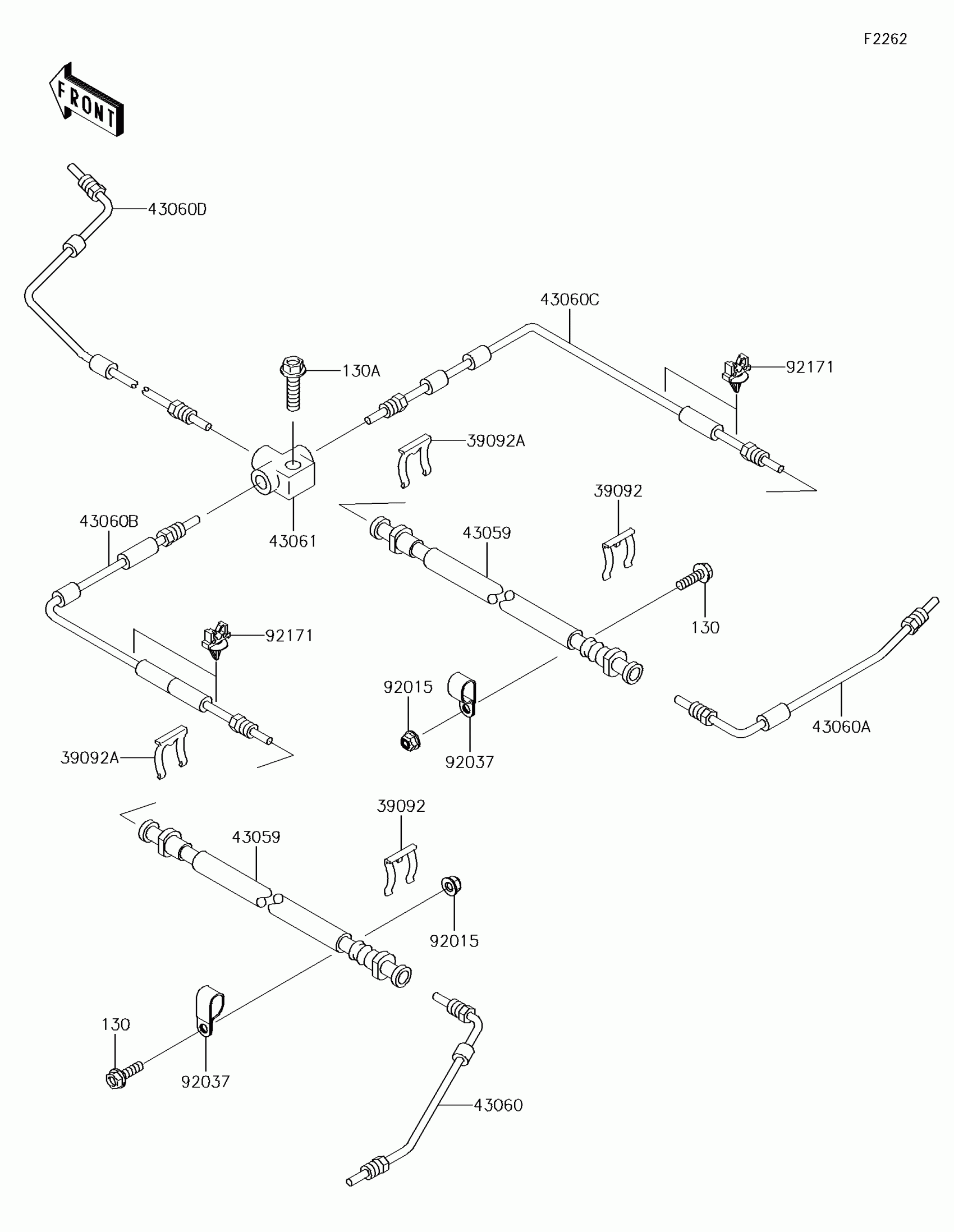

Kawasaki MULE™ 4010 4x4 SE Brake Piping Diagram

Description

Price

39092

PIN-HAIR

39092-1052

$6.33

39092A

PIN-HAIR

39092-1059

$3.31

43059

HOSE-BRAKE,RR

43059-1490

$13.79

43060

PIPE-BRAKE,RR,LH

43060-1083

$19.14

43060A

PIPE-BRAKE,RR,RH

43060-1084

$24.26

43060B

PIPE-BRAKE,MIDDLE,LH

43060-1086

$28.58

43060C

PIPE-BRAKE,MIDDLE,RH

43060-1113

$61.90

43060D

PIPE-BRAKE,FR

43060-7506

$40.04

43061

JOINT-BRAKE

43061-1063

$36.46

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$3.43

92037

CLAMP

92037-1608

$6.44

92171

CLAMP

92171-1312

$2.68

130

BOLT-FLANGED,6X20

130AA0620

$1.49

130A

BOLT-FLANGED,8X30

130AA0830

$0.78
