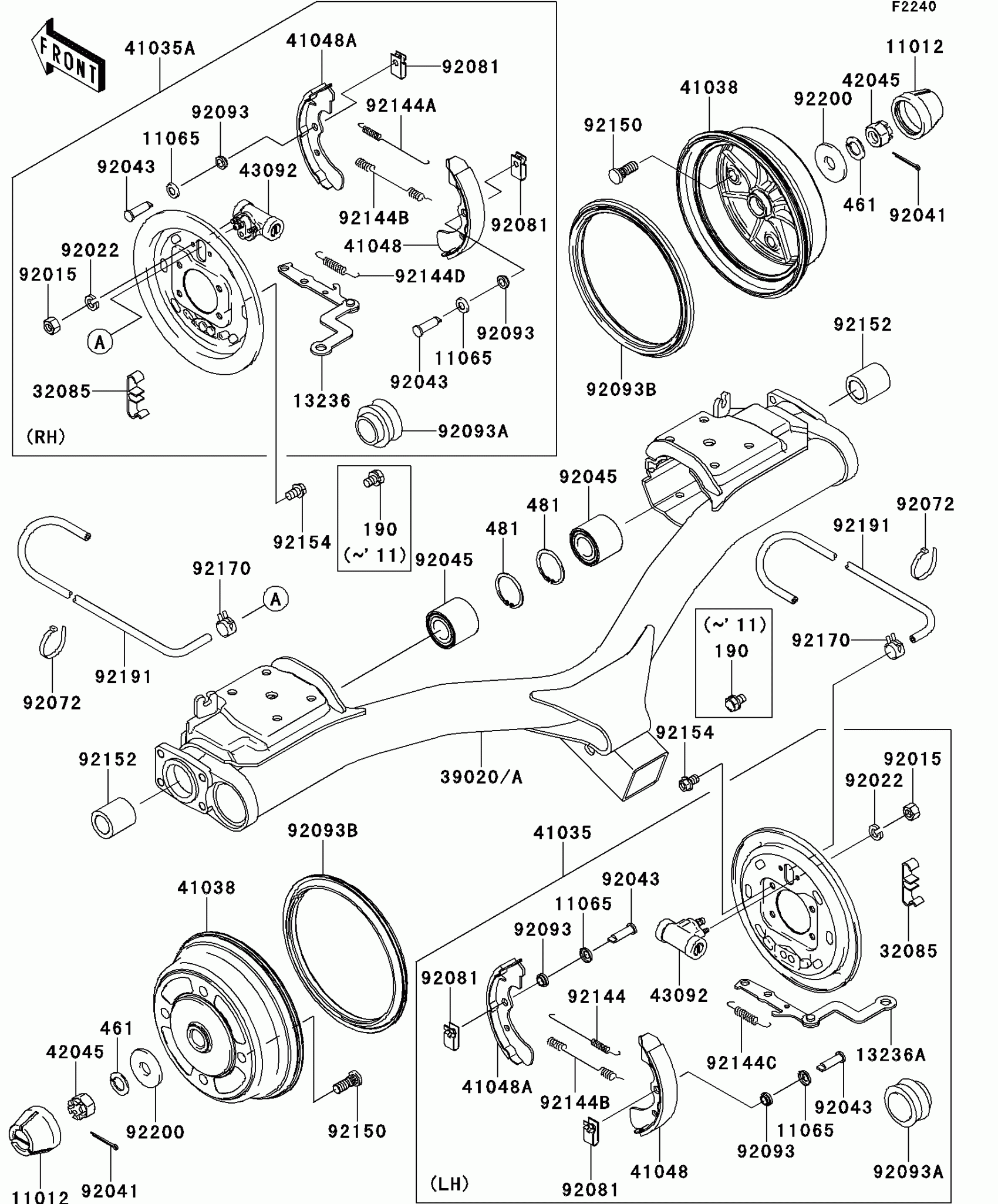

Kawasaki MULE™ 4010 4x4 Rear Hubs/Brakes Diagram

#

Description
Price

11012

CAP,WHEEL

11012-1969

$4.27

11065

CAP

11065-1175

$3.71

13236

LEVER-COMP,RR BRAKE PANEL,RH

13236-1355

$31.64

13236A

LEVER-COMP,RR BRAKE PANEL,LH

13236-1356

$31.20

32085

STOPPER,REAR BRAKE LEVER

32085-1298

$10.63

39020

BRACKET-COMP-REAR SUSP

39020-0004

$726.20

39020A

BRACKET-COMP-REAR SUSP

39020-1056

$892.32

41035

PANEL-ASSY-BRAKE,RR,LH

41035-7506

$478.71

41035A

PANEL-ASSY-BRAKE,RR,RH

41035-7508

$478.71

41038

DRUM,REAR BRAKE

41038-0035

$299.24

41048

SHOE-BRAKE

41048-7502

$18.32

41048A

SHOE-BRAKE

41048-7503

$18.32

42045

NUT,CASTLE,18MM

42045-018

$7.01

43092

CYLINDER,REAR WHEEL

43092-1053

$80.67

92015

NUT,6MM

92015-1729

$1.96

92022

WASHER,SPRING,6MM

92022-1951

$1.96

92041

COTTER,4.0X35

92041-1053

$2.99

92043

PIN

92043-1636

$3.21

92045

BEARING-BALL,25BWD02CA68

92045-0107

$82.22

92072

BAND,L=123

92072-030

$3.81

92081

SPRING,SHOE CLAMP

92081-1904

$6.13

92093

SEAL

92093-1532

$6.56

92093A

SEAL

92093-1533

$10.36

92093B

SEAL,BS184.8X13.5ZS

92093-1543

$100.83

92144

SPRING,BRAKE

92144-1299

$6.33

92144A

SPRING,BRAKE

92144-1300

$6.33

92144B

SPRING,BRAKE

92144-1301

$6.33

92144C

SPRING,ROD,LH

92144-1302

$6.33

92144D

SPRING,ROD,RH

92144-1303

$5.80

92150

BOLT

92150-1366

$6.15

92152

COLLAR,25.1X38X40.8

92152-1276

$25.57

92154

BOLT,FLANGED,10X16

92154-0803

$2.80

92170

CLAMP

92170-2042

$1.00

92191

TUBE,4.7X9.5X1100

92191-1525

$7.71

92200

WASHER,18.5X52X4.5

92200-1474

$6.18

190

BOLT-UPSET-WS,10X16

190BA1016

$3.55

461

WASHER-SPRING,18MM

461DA1800

$2.03

481

CIRCLIP-TYPE-C,52MM

481J5200

$3.72
