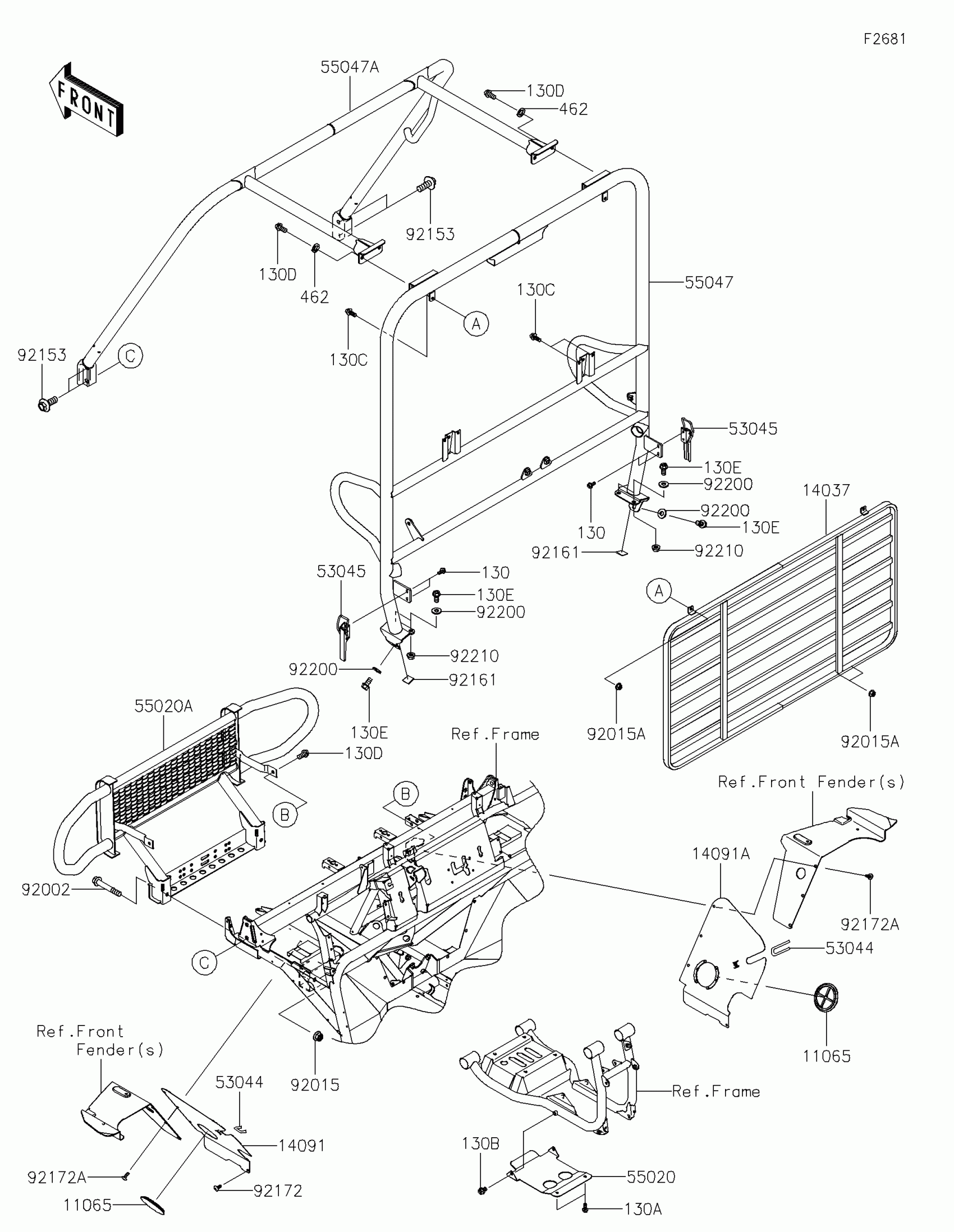

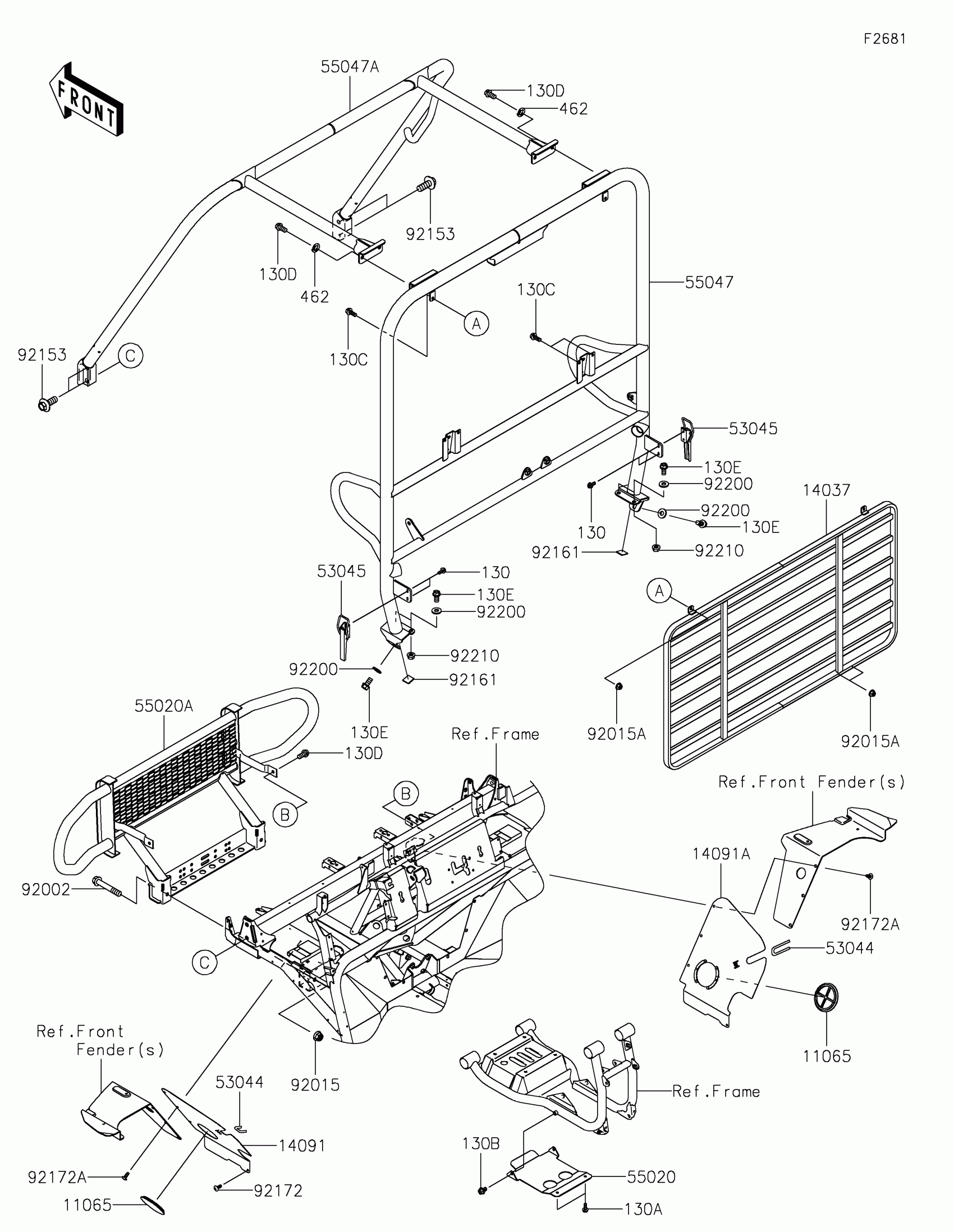

Kawasaki MULE™ 4010 4x4 FE Guards/Cab Frame Diagram

Description

Price

11065

CAP,F.BLACK

11065-1053-6Z

$6.40

14037

SCREEN,REAR GUARD,T.BLACK

14037-0810-388

$231.50

14091

COVER,FR,LH

14091-1758

$77.00

14091A

COVER,FR,RH

14091-1759

$77.00

53044

TRIM

53044-1137

$10.25

53045

HOOK-ASSY

53045-7501

$21.71

55020

GUARD,GEAR CASE

55020-2295

$30.99

55020A

GUARD,FR

55020-2299

$257.60

55047

BAR-COMP,T.BLACK

55047-0384-388

$629.06

55047A

BAR-COMP,FR,T.BLACK

55047-7514-388

$376.40

92002

BOLT,FLANGED,12X75

92002-1661

$10.44

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92015A

NUT,FLANGED,LOCK,8MM

92015-1668

$3.24

92153

BOLT,FLANGED,14X36

92153-1282

$7.51

92161

DAMPER

92161-0020

$4.42

92172

SCREW,TAPPING,6X16

92172-0739

$0.73

92172A

SCREW,6X16

92172-0826

$1.62

92200

WASHER,10.2X23X2.5

92200-0211

$2.68

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.85

130

BOLT-FLANGED,6X14

130BA0614

$0.97

130A

BOLT-FLANGED,6X16

130BA0616

$0.97

130B

BOLT-FLANGED,8X12

130BA0812

$0.79

130C

BOLT-FLANGED,8X20

130BA0820

$3.04

130D

BOLT-FLANGED,10X20

130BA1020

Unavailable

130E

BOLT-FLANGED,10X25

130BA1025

$2.71

462

WASHER-SPRING,10MM

462DA1000

$4.08
