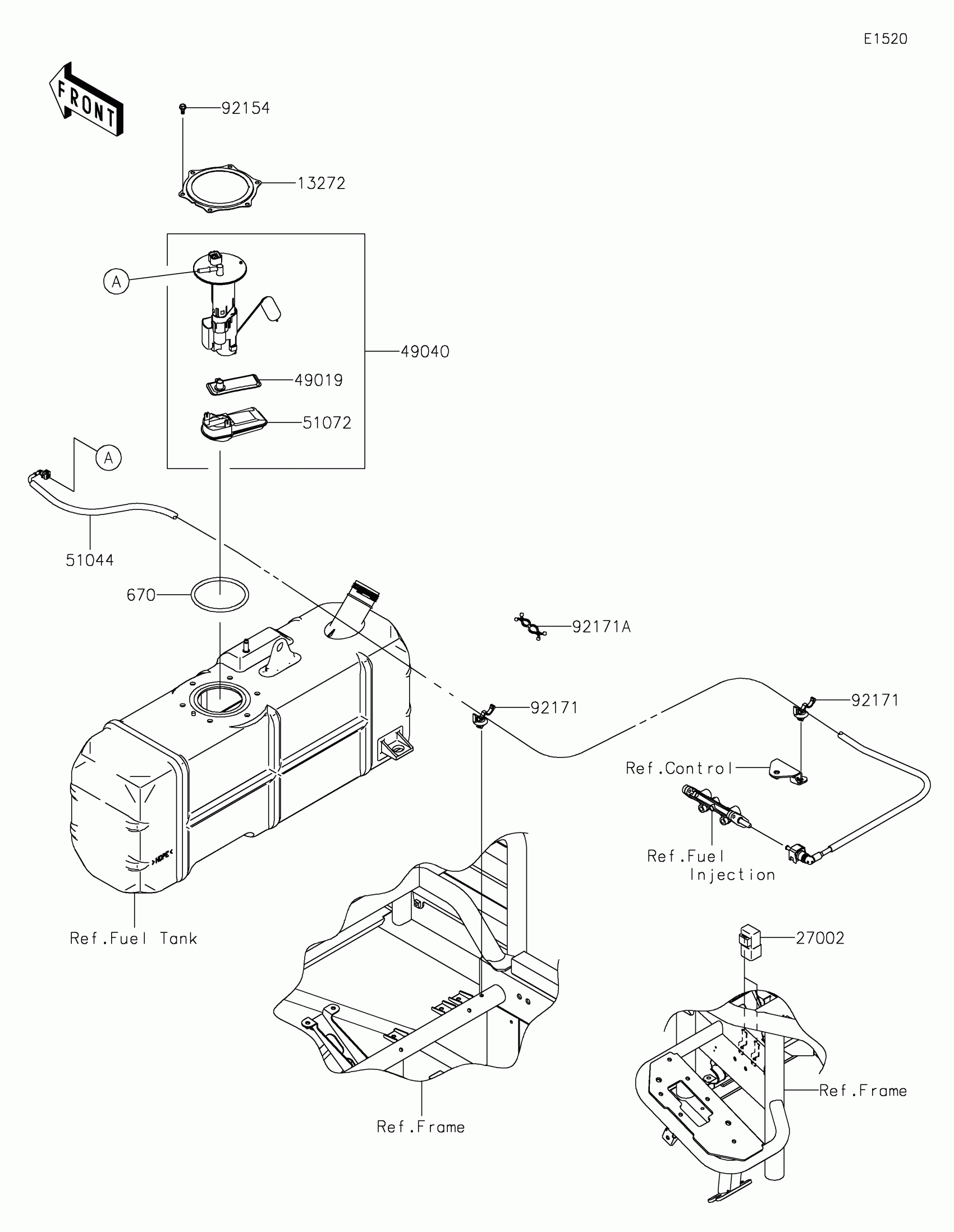

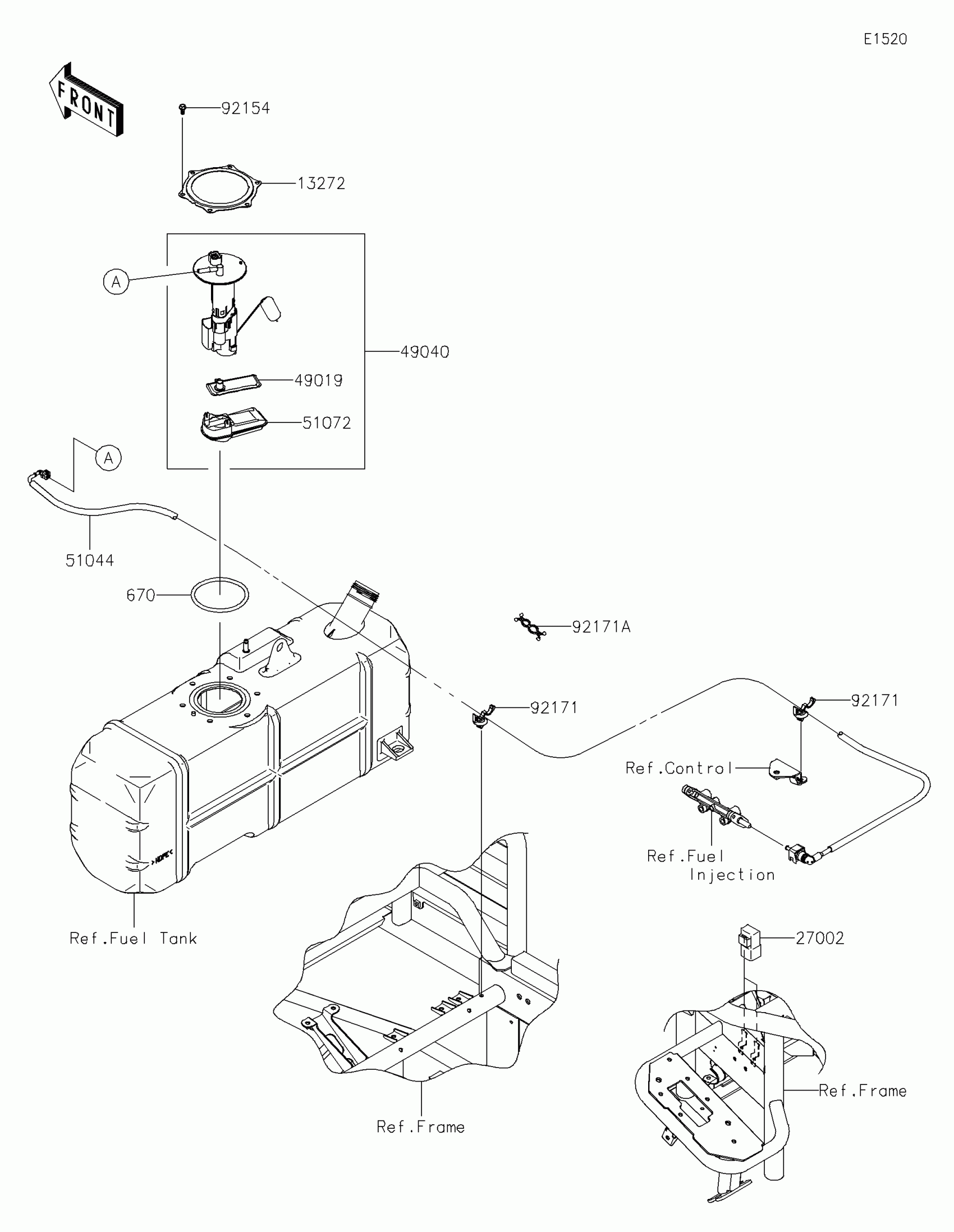

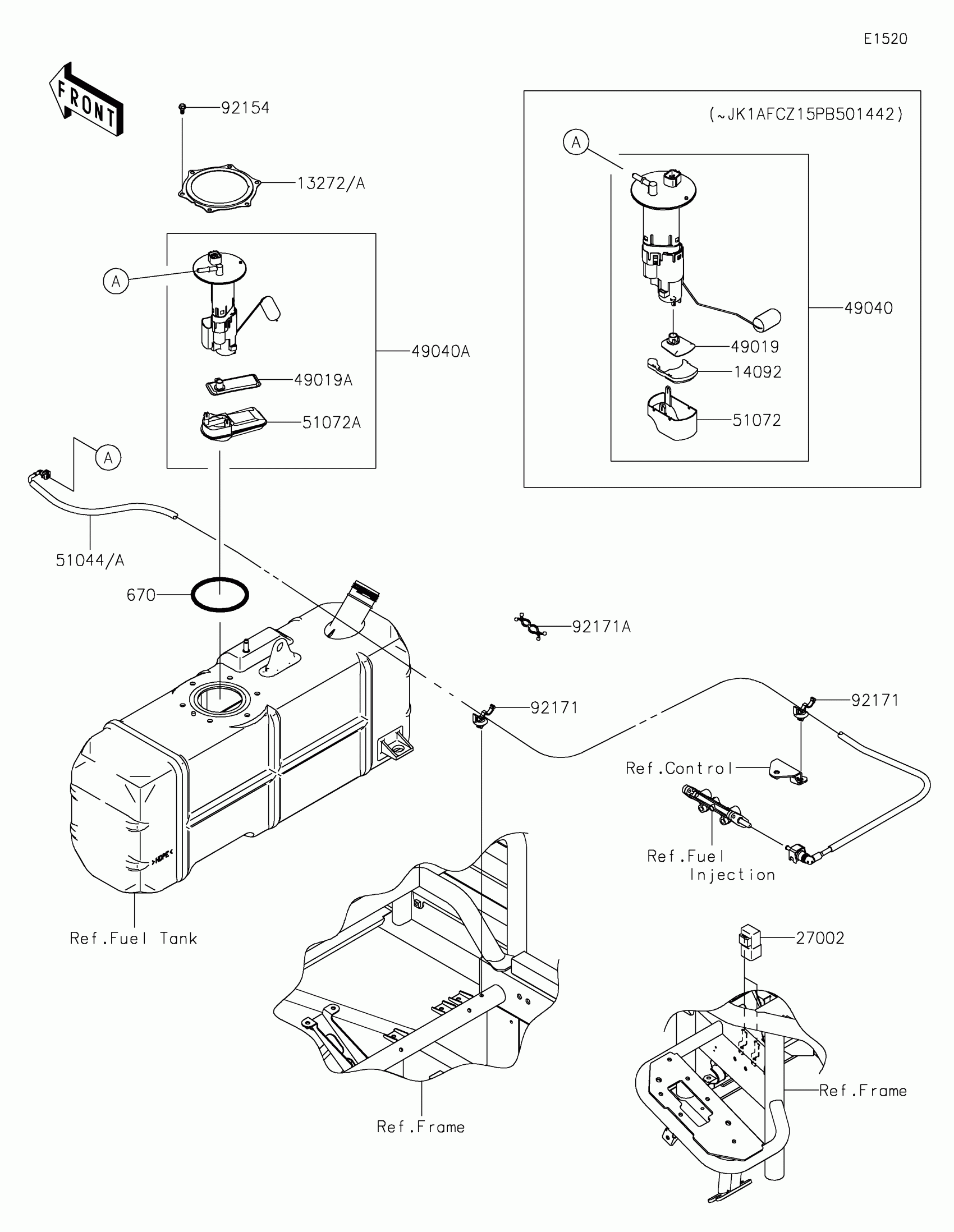

Kawasaki MULE™ 4010 4x4 FE Fuel Pump Diagram

Description

Price

13272

PLATE

13272-2501

$5.20

13272A

PLATE

13272-4226

$11.73

14092

COVER

14092-1044

$31.19

27002

RELAY-ASSY

27002-1088

$37.25

49019

FILTER-FUEL

49019-0013

$13.34

49019A

FILTER-FUEL

49019-0034

$25.74

49040

PUMP-FUEL

49040-0718

$807.97

49040A

PUMP-FUEL

49040-0830

$840.67

51044

TUBE-ASSY,FUEL

51044-0926

$159.58

51044A

TUBE-ASSY,FUEL

51044-1256

$217.06

51072

CHAMBER-FUEL

51072-0003

$46.89

51072A

CHAMBER-FUEL

51072-0008

$5.96

92154

BOLT,FUEL PUMP

92154-1326

$0.81

92171

CLAMP

92171-0453

$3.12

92171A

CLAMP

92171-0476

$3.51

670

O RING

670E5090

$27.18
