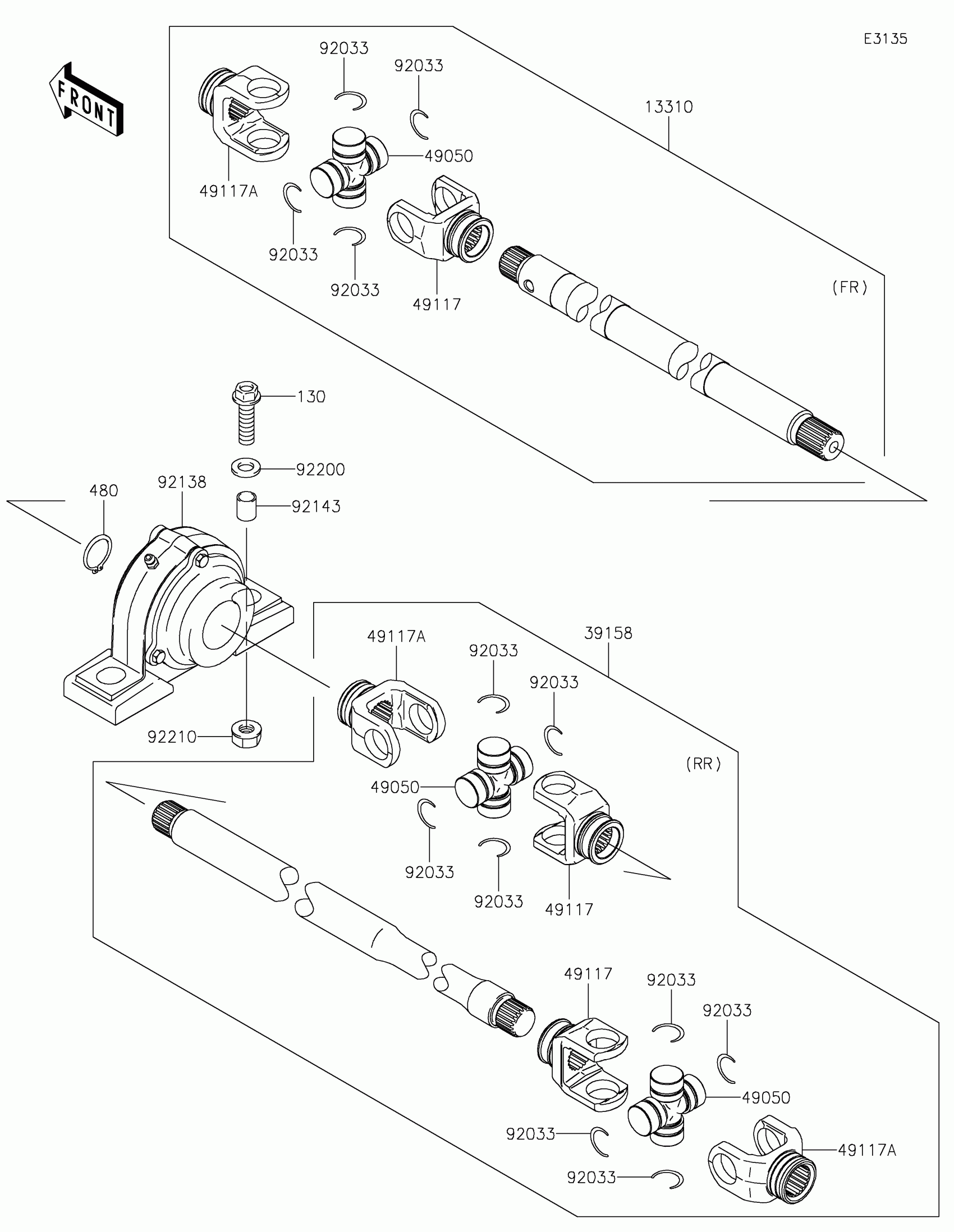

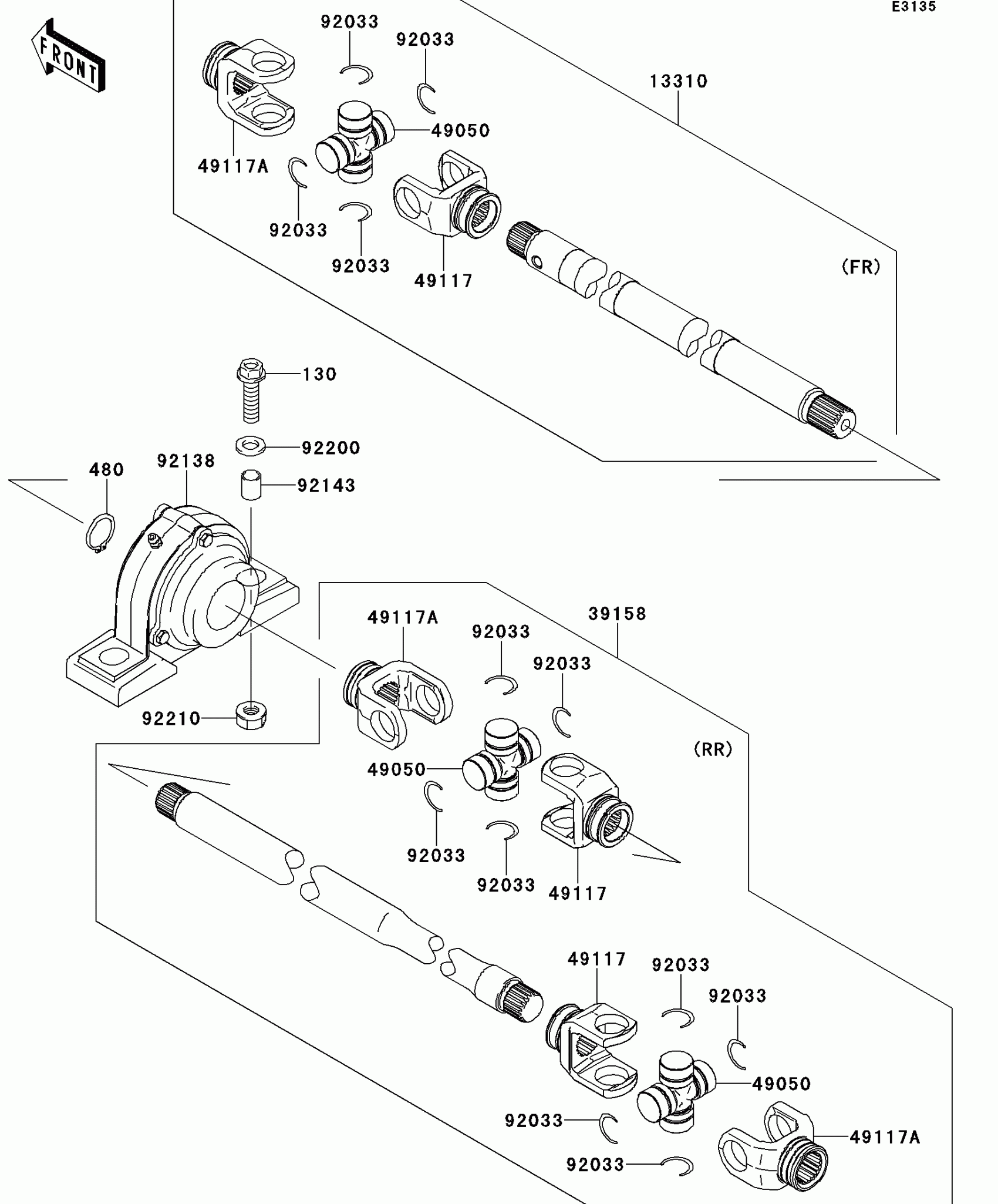

Kawasaki MULE™ 4010 4x4 Drive Shaft-Propeller Diagram

Description

Price

13310

SHAFT-ASSY

13310-1027

Unavailable

39158

SHAFT-ASSY-DRIVE

39158-1111

Unavailable

49050

SPIDER

49050-1075

$74.89

49117

YOKE,DRIVE

49117-1095

Unavailable

49117A

YOKE,DRIVE

49117-1096

Unavailable

92033

RING-SNAP

92033-1030

$3.29

92138

BEARING-COMP

92138-0001

Unavailable

92143

COLLAR,10.3X12.7X15

92143-1634

$7.56

92200

WASHER,10.5X19X2.3

92200-1042

$3.12

92210

NUT,LOCK,10MM

92210-1204

$3.43

130

BOLT-FLANGED,10X35

130BB1035

$5.44

480

CIRCLIP-TYPE-C,25MM

480J2500

$1.71
