Description

Price

11012

CAP

11012-1648

$26.99

11012A

CAP,GEAR CASE

11012-1649

$114.65

13088

PLATE-FRICTION,T=2.8

13088-1075

$9.71

13088A

PLATE-FRICTION,T=2.4

13088-1078

$9.71

13089

PLATE-CLUTCH

13089-1083

$10.14

13101

GEAR-ASSY

13101-1190

$794.66

13101A

GEAR-ASSY,BEVEL

13101-5096

$814.14

14055

CASE-GEAR,FR

14055-1114

$207.53

41046

HOUSING-BEARING

41046-1089

$160.26

49006

BOOT,UJ INNER

49006-0086

$67.48

49006A

BOOT,DOJ OUTER

49006-0087

$53.54

49035

PIN-SPRING

49035-1056

$3.53

59266

JOINT-BALL

59266-0034

$939.34

92005

FITTING,BREATHER

92005-1127

$16.10

92015

NUT,8MM

92015-1402

$3.72

92015A

NUT,25MM

92015-1768

$23.73

92022

WASHER

92022-1941

$4.17

92022A

WASHER,TOOTHED

92022-1990

$5.42

92022B

WASHER,25.3X32X0.5

92022-225

$4.37

92025

SHIM,25.2X29.8X1.70

92025-1072

$9.02

92025A

SHIM,25.2X29.8X1.72

92025-1073

$9.02

92025B

SHIM,25.2X29.8X1.74

92025-1074

$9.02

92025C

SHIM,25.2X29.8X1.76

92025-1075

$9.02

92025D

SHIM,25.2X29.8X1.78

92025-1076

$9.02

92025E

SHIM,25.2X29.8X1.80

92025-1077

$9.02

92025F

SHIM,35.3X46X1.00

92025-1849

$4.02

92025G

SHIM,35.3X46X0.10

92025-1850

$4.47

92025H

SHIM,35.3X46X0.15

92025-1851

$4.02

92025I

SHIM,35.3X46X0.50

92025-1856

$4.47

92025J

SHIM,35.3X46X0.80

92025-1857

$4.02

92025K

SHIM,T=0.10

92025-1919

$5.54

92025L

SHIM,T=0.15

92025-1920

$5.54

92025M

SHIM,T=0.50

92025-1921

$8.07

92025N

SHIM,T=0.80

92025-1922

$7.56

92025O

SHIM,T=1.00

92025-1923

$7.20

92025P

SHIM,T=1.20

92025-1924

$7.20

92026

SPACER

92026-1337

$9.92

92026A

SPACER,29X40X1.0

92026-1338

$4.93

92027

COLLAR,25.2X29.8X10.2

92027-1401

$10.93

92027A

COLLAR,25.2X29.8X10.3

92027-1402

$10.93

92027B

COLLAR,25.2X29.8X10.4

92027-1403

$10.93

92027C

COLLAR,25.2X29.8X10.5

92027-1404

$10.93

92027D

COLLAR,25.2X29.8X10.6

92027-1405

$10.93

92027E

COLLAR,25.2X29.8X10.7

92027-1406

$10.93

92027F

COLLAR,25.2X29.8X10.8

92027-1407

$10.93

92027G

COLLAR,25.2X29.8X10.9

92027-1408

$10.93

92027H

COLLAR,25.2X29.8X11.0

92027-1409

$10.93

92027I

COLLAR,25.2X29.8X11.1

92027-1410

$10.93

92027J

COLLAR,25.2X29.8X11.2

92027-1411

$10.93

92028

BUSHING

92028-1699

$17.51

92033

RING-SNAP,T=1.5

92033-1249

$3.94

92037

CLAMP,TUBE

92037-147

$5.84

92037A

CLAMP,HOSE

92037-1827

$5.93

92043

PIN,8X18

92043-1400

$4.85

92049

SEAL-OIL,TC35X55X8

92049-1298

$7.14

92049A

SEAL-OIL,TC30487

92049-1309

$7.14

92055

RING-O,19.5X1.5

92055-055

$3.43

92055A

RING-O,25.7X2.4

92055-1136

$3.97

92055B

RING-O,24.7MM

92055-1160

$3.72

92055C

RING-O,65.2X2.4

92055-1408

$5.21

92055D

RING-O,46X2.5

92055-1409

$3.72

92055E

RING-O,154.1X2.5

92055-1410

$7.04

92065

GASKET,10.5X16X1

92065-058

$3.16

92066

PLUG

92066-1303

$10.27

92067

PLUG,DRAIN,10X12

92067-001

$3.50

92116

BEARING-ROLLER,4T30205

92116-1003

$33.21

92143

COLLAR

92143-1703

$11.42

92144

SPRING

92144-1671

$9.85

92150

BOLT,8X20

92150-1109

$3.85

92180

SHIM,32X48X0.8

92180-1121

$5.42

92180A

SHIM,32X48X1.0

92180-1122

$5.42

92180B

SHIM,32X48X1.2

92180-1123

$5.42

92180C

SHIM,32X48X1.4

92180-1124

$5.42

92180D

SHIM,32X48X1.6

92180-1125

$5.42

92191

TUBE

92191-1628

$38.28

115

BOLT-SMALL-UPSET,8X30

115CA0830

$3.85

120

BOLT-SOCKET,6X16

120CA0616

$2.05

130

BOLT-FLANGED,8X30

130CA0830

$1.00

130A

BOLT-FLANGED,10X35

130CA1035

$5.35

172

BOLT-STUD,8X22

172BA0822

$1.83

601

BEARING-BALL,#6007C3

601B6007

$25.09

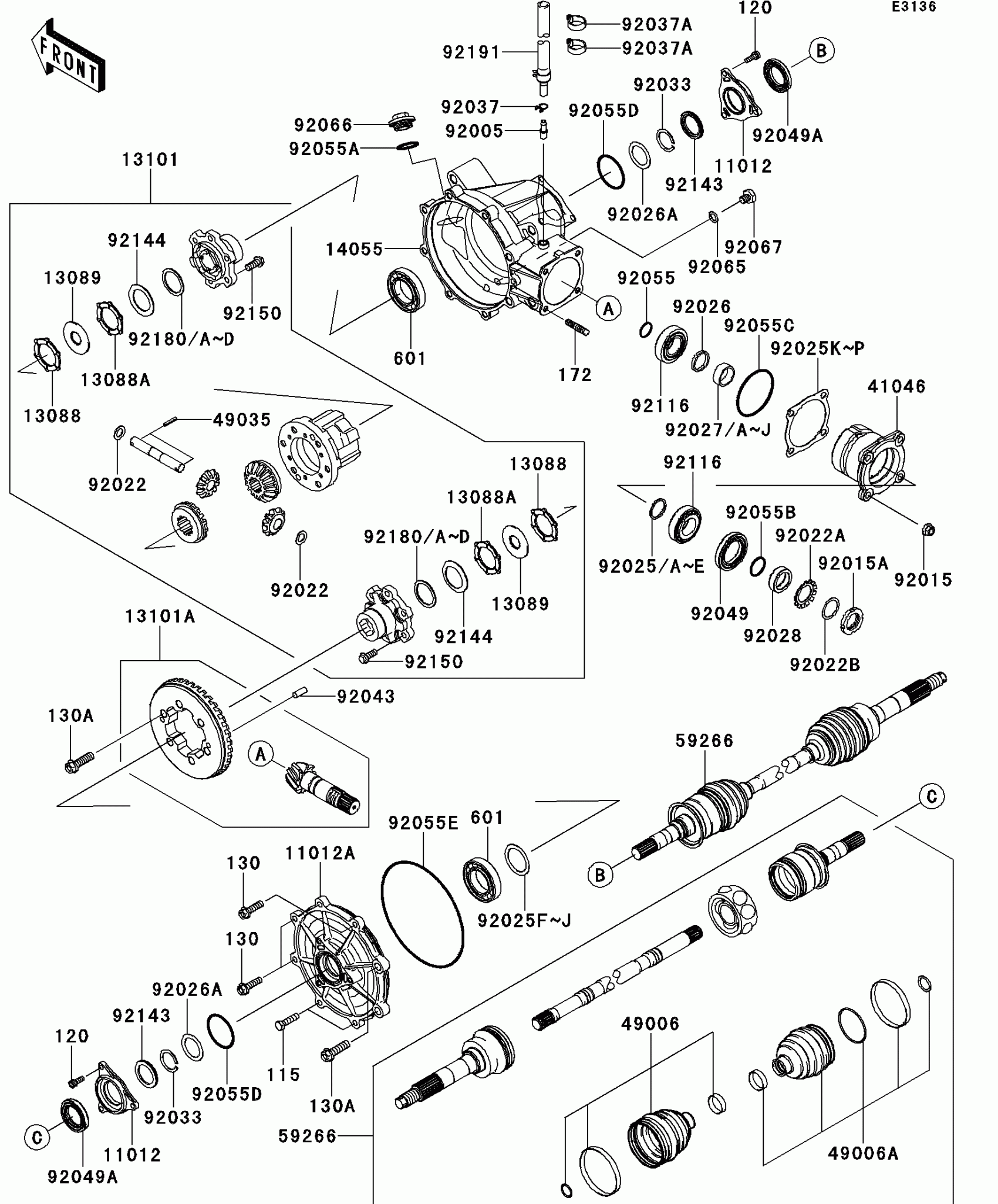

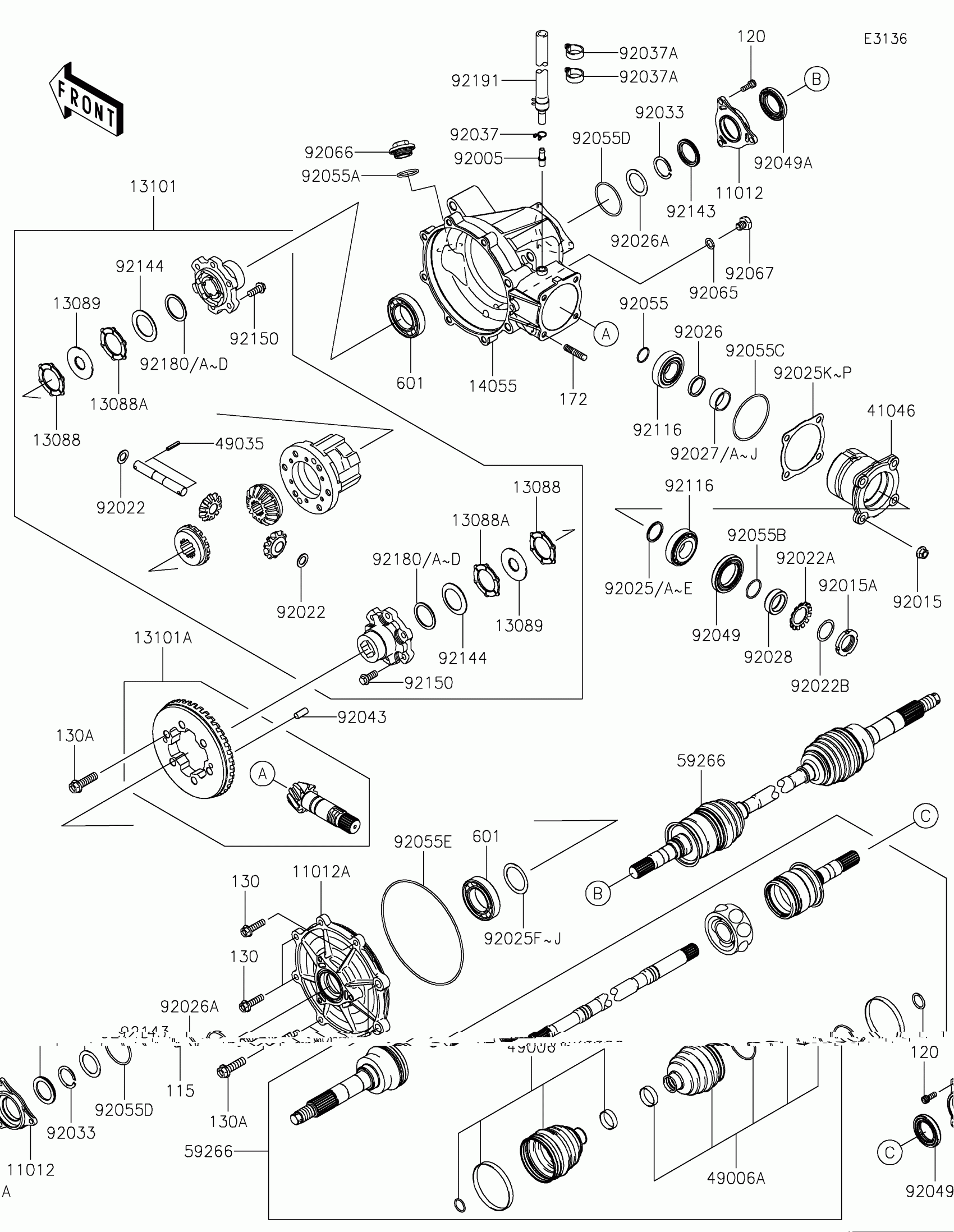

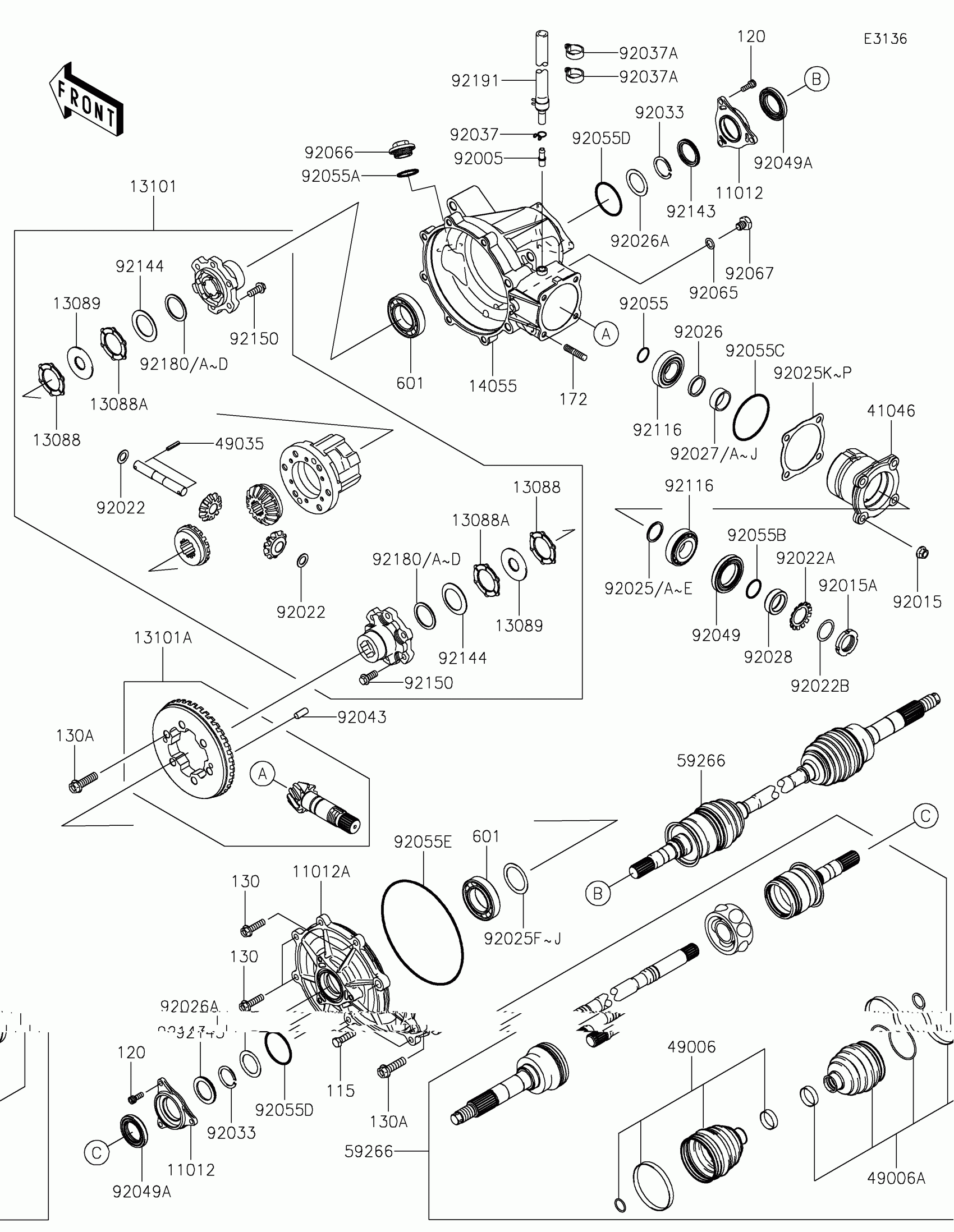

Kawasaki MULE™ 4010 4x4 Drive Shaft-Front Diagram
