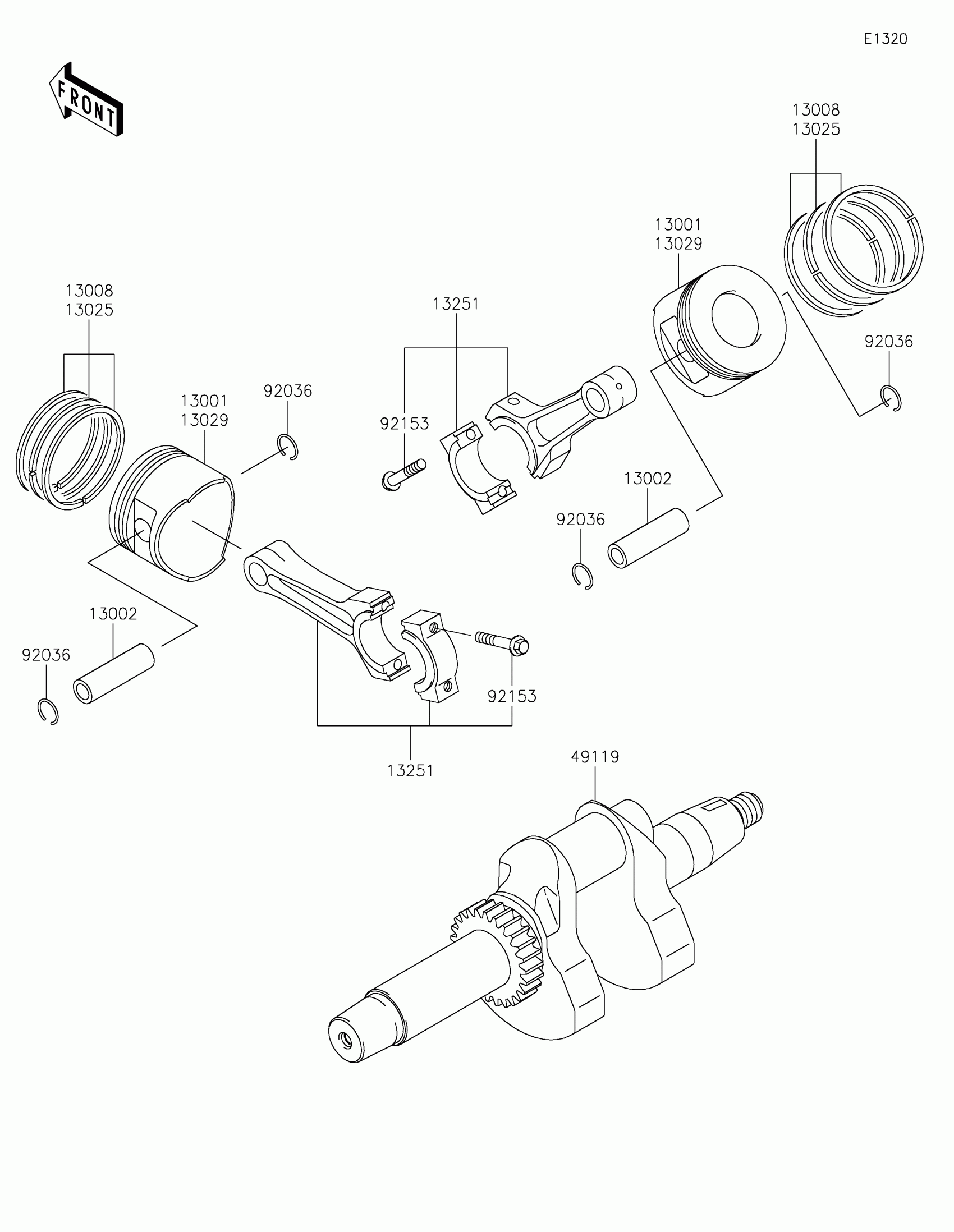

Kawasaki MULE™ 4010 4x4 Crankshaft/Piston(s) Diagram

#

Description
Price

13001

PISTON-ENGINE,STD

13001-2196

$40.66

13002

PIN-PISTON

13002-1013

$5.25

13008

RING-SET-PISTON,STD

13008-6025

$32.28

13025

RING-SET-PISTON L,0.50

13025-6008

$32.28

13029

PISTON-ENGINE L,0.50

13029-2141

$51.39

13251

ROD-ASSY-CONNECTING

13251-2086

Unavailable

49119

CRANKSHAFT-ASSY

49119-2200

$606.43

59051

GEAR-SPUR

59051-2112

$31.28

92036

CIRCLIP,PISTON PIN

92036-021

$0.53

92153

BOLT,7X35.2

92153-2054

Unavailable

551

PIN-DOWEL,4X8

551A0408

$0.80
