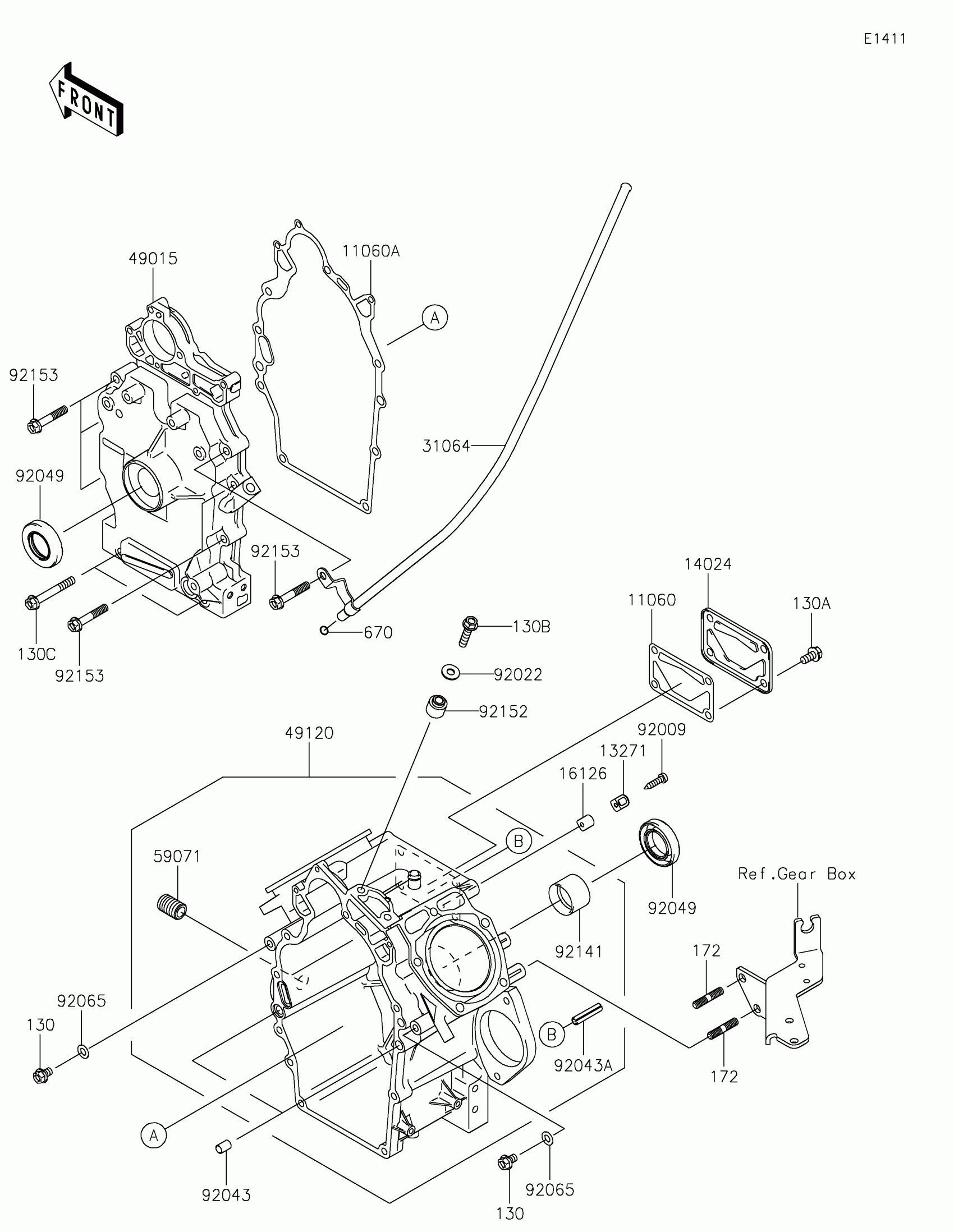

Kawasaki MULE™ 4010 4x4 Crankcase Diagram

#

Description
Price

11009

GASKET

11009-3028

$0.65

11060

GASKET,BREATHER,COVER

11060-2089

$2.54

11060A

GASKET,CRANKCASE COVER

11060-2449

$15.68

13183

PLATE

13183-2120

$0.46

14024

COVER

14024-2292

$3.56

16126

VALVE

16126-2146

$0.59

32155

PIPE,F.BLACK

32155-2004-9H

$43.03

32155A

PIPE,F.BLACK

32155-2005-9H

Unavailable

49015

COVER-CRANKCASE

49015-6282

Unavailable

49120

CRANKCASE-COMP

49120-6201

Unavailable

59071

JOINT

59071-2079

$5.80

92009

SCREW

92009-2308

$0.46

92043

PIN,DOWEL,10X14

92043-1037

$0.66

92049

SEAL-OIL

92049-2112

$4.61

92141

BEARING-PLANE

92141-2122

$5.26

92153

BOLT,FLANGED,8X45

92153-2130

$1.28

92170

CLAMP

92170-2002

$0.81

92192

TUBE,BRETHER

92192-2140

$7.51

130

BOLT-FLANGED,8X16

130AA0816

$0.71

130A

BOLT-FLANGED,8X12

130AB0812

$0.66

130B

BOLT-FLANGED,8X16

130BA0816

$0.89

130C

BOLT-FLANGED,8X60

130CA0860

$1.28

172

BOLT-STUD,8X25

172BA0825

$2.46

670

O RING,10MM

670B2010

$1.13
