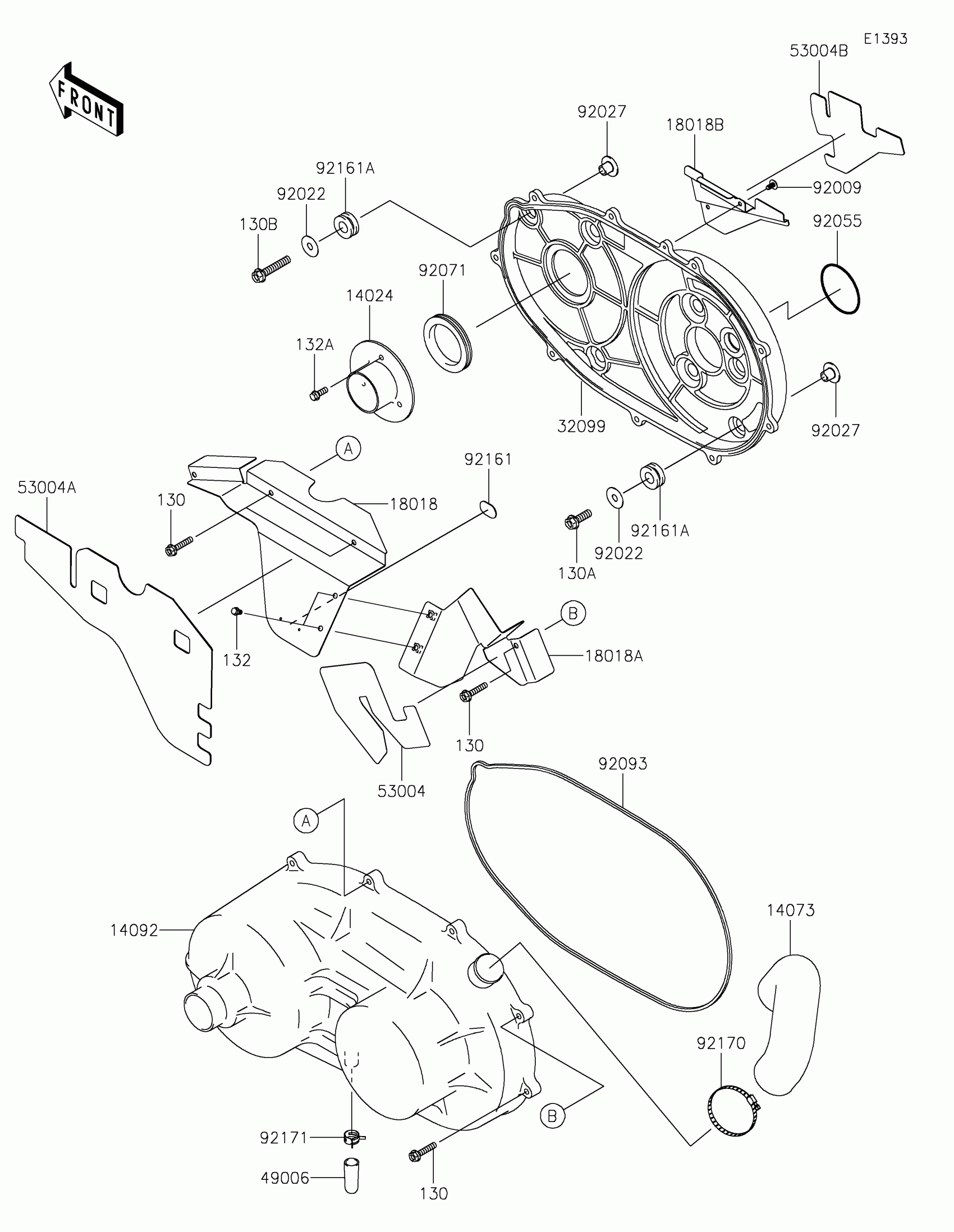

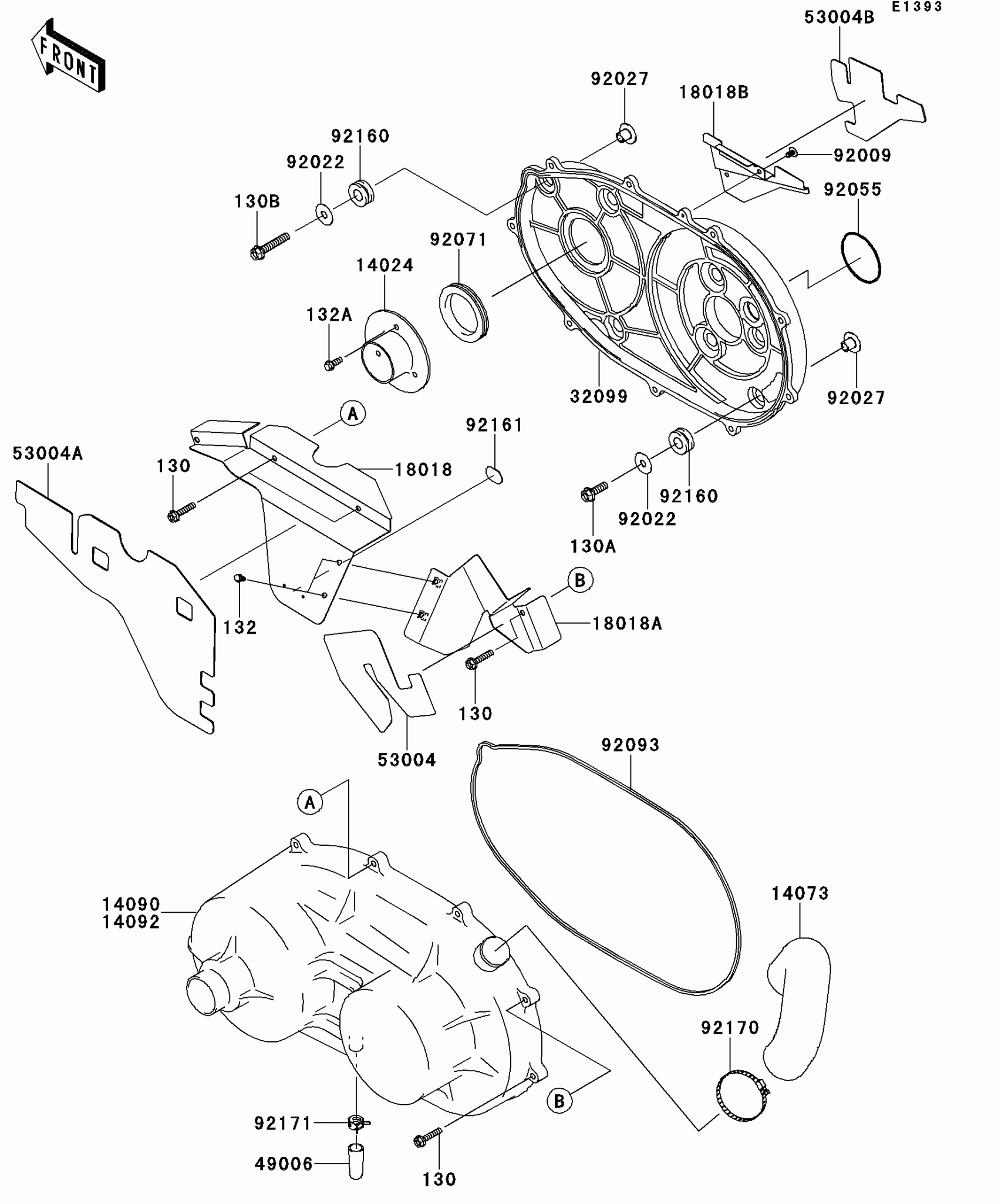

Kawasaki MULE™ 4010 4x4 Converter Cover Diagram

#

Description
Price

14024

COVER,FAN

14024-1554

$42.47

14073

DUCT,EXHAUST

14073-0234

$12.66

14090

COVER,BELT CONVERTER

14090-1239

$168.33

14092

COVER,BELT CONVERTER

14092-1035

$158.29

18018

PLATE-HEAT GUARD

18018-0019

$55.23

18018A

PLATE-HEAT GUARD

18018-0020

$46.36

18018B

PLATE-HEAT GUARD

18018-0021

$15.47

32099

CASE,BELT CONVERTER

32099-1140

Unavailable

49006

BOOT

49006-1351

$5.98

53004

MAT

53004-0043

Unavailable

53004A

MAT

53004-0044

Unavailable

53004B

MAT

53004-0045

Unavailable

92009

SCREW,TAPPING,5X10

92009-1332

$3.12

92022

WASHER SEAL PLATE

92022-101

$3.85

92027

COLLAR

92027-4015

$8.44

92055

RING-O,CRANKCASE SIDE

92055-1395

$3.87

92071

GROMMET,CONVERTER CASE

92071-1212

$7.94

92093

SEAL,BELT CONVERTER COVER

92093-0582

$13.03

92160

DAMPER

92160-1012

$4.37

92161

DAMPER

92161-0406

$2.42

92170

CLAMP

92170-1764

$9.09

92171

CLAMP

92171-1277

$2.25

130

BOLT-FLANGED,6X30

130BB0630

$3.52

130A

BOLT-FLANGED,8X25

130BB0825

$3.53

130B

BOLT-FLANGED,8X45

130BB0845

$2.63

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.47

132A

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.21
