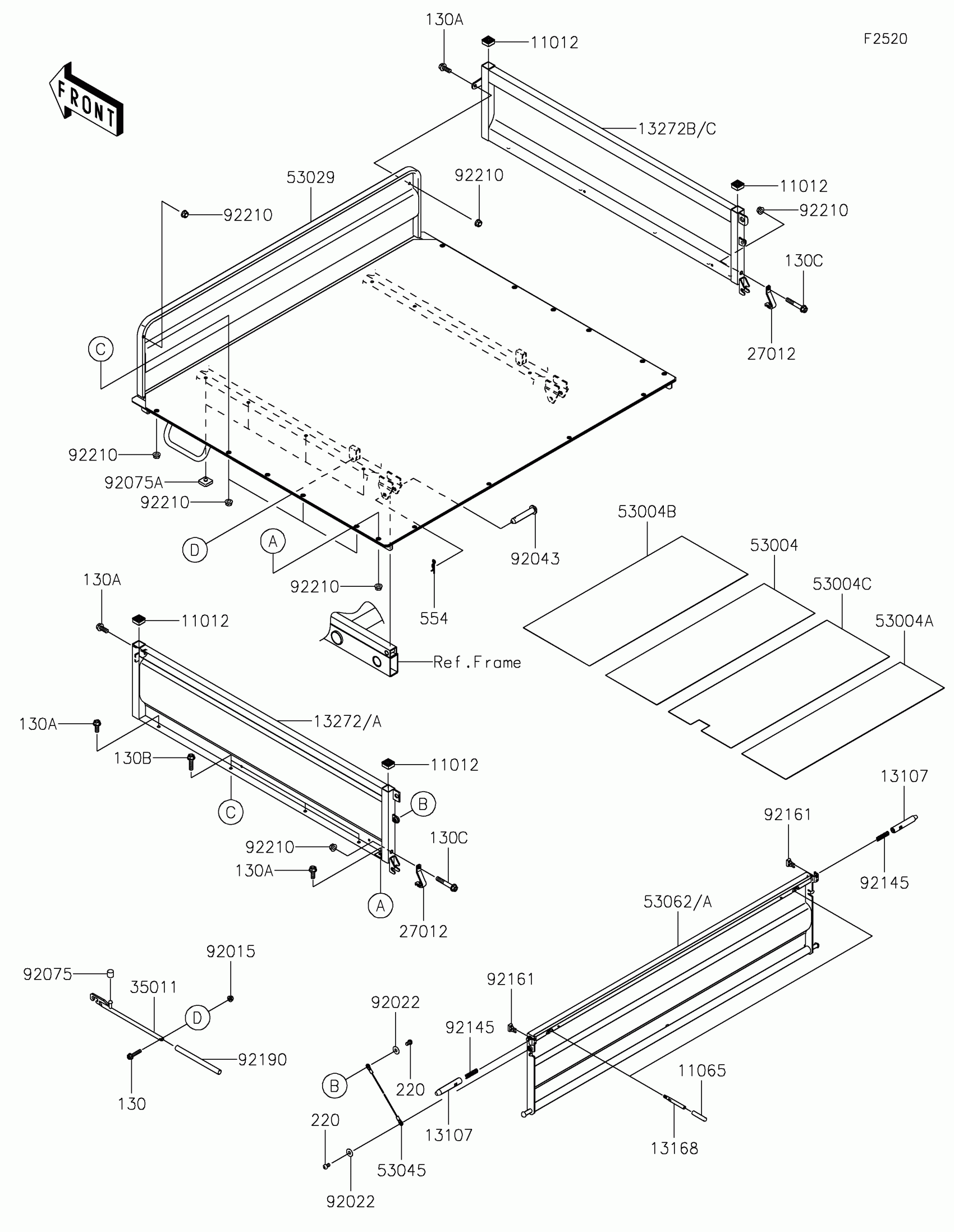

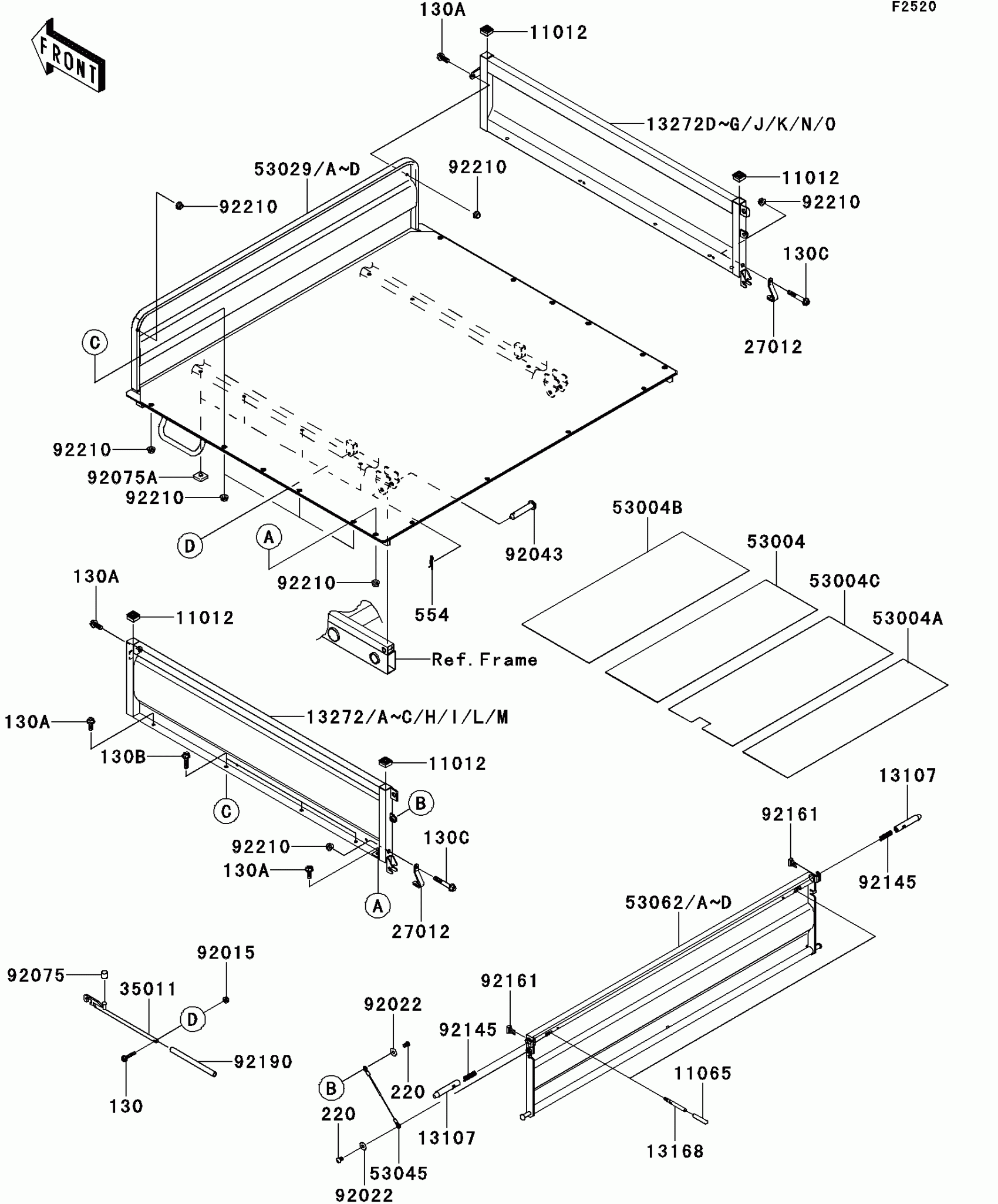

Kawasaki MULE™ 4010 4x4 Carrier(s) Diagram

#

Description
Price

11012

CAP

11012-1784

$4.74

11065

CAP

11065-0126

$2.34

13107

SHAFT

13107-0082

$58.67

13168

LEVER

13168-0090

$9.15

13272

PLATE,SIDE,LH,BLACK

13272-0209-10

$251.09

13272A

PLATE,SIDE,LH,D.R.RED

13272-0209-16M

$269.32

13272D

PLATE,SIDE,RH,BLACK

13272-0210-10

$251.09

13272E

PLATE,SIDE,RH,D.R.RED

13272-0210-16M

$235.38

13272L

PLATE,SIDE,LH,D.R.RED

13272-1231-16M

$243.35

13272M

PLATE,SIDE,LH,S.GREEN

13272-1231-42F

$246.53

13272N

PLATE,SIDE,RH,D.R.RED

13272-1232-16M

$243.35

13272O

PLATE,SIDE,RH,S.GREEN

13272-1232-42F

$246.53

27012

HOOK,TAIL GATE

27012-0022

$4.81

35011

STAY,CARRIER STOPPER

35011-1648

$29.46

53004

MAT,CARRIER

53004-0031

$118.09

53004A

MAT,CARRIER

53004-0032

$118.09

53004B

MAT,CARRIER

53004-0034

$118.09

53004C

MAT

53004-1159

$118.64

53029

CARRIER,BASE PLATE,BLACK

53029-0063-10

$1,100.73

53029A

CARRIER,BASE PLATE,D.R.RED

53029-0063-16M

$1,150.04

53029C

CARRIER,BASE PLATE,T.BLACK

53029-0063-388

$1,034.69

53045

HOOK-ASSY,TAIL GATE

53045-0004

$26.21

53062

GATE-TAIL,BLACK

53062-0001-10

$405.17

53062A

GATE-TAIL,D.R.RED

53062-0001-16M

$405.17

53062D

GATE-TAIL,S.GREEN

53062-0001-42F

$424.62

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92022

WASHER,7X18X1.2

92022-1545

$0.84

92043

PIN,12X65

92043-1428

$7.69

92075

DAMPER

92075-1817

$4.67

92075A

DAMPER

92075-1882

$6.18

92145

SPRING,TENSIONER

92145-1215

$3.52

92161

DAMPER

92161-0258

$3.18

92190

TUBE,13X16X200

92190-1401

$4.63

92210

NUT,FLANGED,8MM

92210-0555

$1.47

130

BOLT-FLANGED,6X30

130BA0630

$1.13

130A

BOLT-FLANGED,8X20

130BB0820

$0.71

130B

BOLT-FLANGED,8X30

130BB0830

$3.42

130C

BOLT-FLANGED,8X50

130BB0850

$3.60

220

SCREW-PAN-CROS,6X10

220AB0610

$1.33

554

PIN-SNAP,12MM

554DA1200

$2.63
