Description

Price

11021

CASE-ASSY

11021-0016

$480.20

11060

GASKET,GEAR CASE

11060-1311

$7.42

13048

CAM-DAMPER

13048-1089

$51.47

13091

HOLDER,GEAR CASE

13091-1620

$42.05

13091A

HOLDER,CAM DAMPER

13091-1810

$47.36

13107

SHAFT,BEVEL GEAR

13107-1523

$214.55

14091

COVER

14091-0939

$29.40

14091A

COVER

14091-1672

$15.34

21176

SENSOR,SPEED

21176-1104

$116.50

41046

HOUSING-BEARING

41046-1083

$134.70

49022

GEAR-BEVEL,18T

49022-1204

Unavailable

49022A

GEAR-BEVEL,15T

49022-1205

$218.99

92015

NUT,8MM

92015-1402

$3.72

92015A

NUT,16MM

92015-1581

$15.43

92015B

NUT,30MM

92015-1858

$33.58

92015C

NUT,12MM

92015-1920

$5.78

92022

WASHER,12X24X2.3

92022-1890

$4.42

92025

SHIM,20.3X28X1.3

92025-1533

$7.12

92025A

SHIM,20.3X28X0.7

92025-1534

$4.47

92025B

SHIM,20.3X28X0.15

92025-1573

$4.85

92025C

SHIM,20.3X28X0.20

92025-1574

$4.85

92025D

SHIM,20.3X28X1.1

92025-1575

$4.47

92025E

SHIM,T=1.00

92025-1858

$5.10

92025F

SHIM,T=0.10

92025-1859

$5.10

92025G

SHIM,T=0.15

92025-1860

$4.62

92025H

SHIM,T=0.50

92025-1861

$4.62

92025I

SHIM,T=0.80

92025-1862

$4.62

92025J

SHIM,T=1.20

92025-1863

$4.62

92043

PIN,DOWEL,10X14

92043-1037

$0.76

92045

BEARING-BALL,6205CM

92045-1200

Unavailable

92045A

BEARING-BALL,6006CM

92045-1201

$23.68

92049

SEAL-OIL

92049-1288

$7.14

92055

RING-O,66.5MM

92055-1287

$5.21

92055A

RING-O,63.6X2.4

92055-1294

$7.55

92055B

RING-O

92055-1718

$2.00

92143

COLLAR

92143-1600

$16.15

92145

SPRING

92145-1542

$17.03

92172

SCREW,SET,58X10

92172-0316

$23.93

92180

SHIM,20.3X28X0.8

92180-0288

$5.75

92180A

SHIM,20.3X28X0.9

92180-0289

$7.23

92180B

SHIM,20.3X28X1.0

92180-0290

$5.75

92180C

SHIM,20.3X28X1.2

92180-0291

$5.75

132

BOLT-FLANGED-SMALL,8X70

132BA0870

$5.44

132A

BOLT-FLANGED-SMALL,6X20

132BD0620

$3.28

172

BOLT-STUD,8X30

172BA0830

$2.12

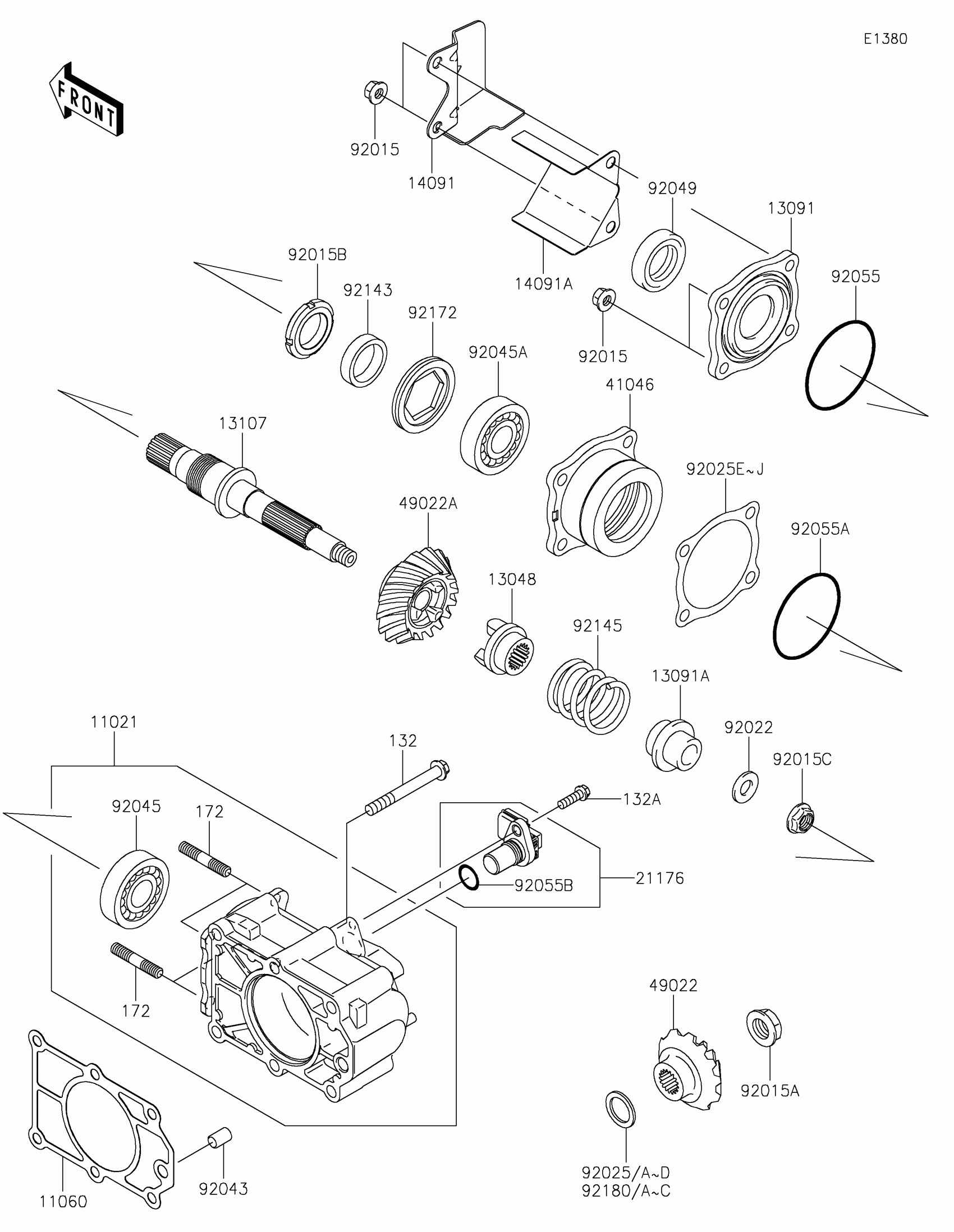

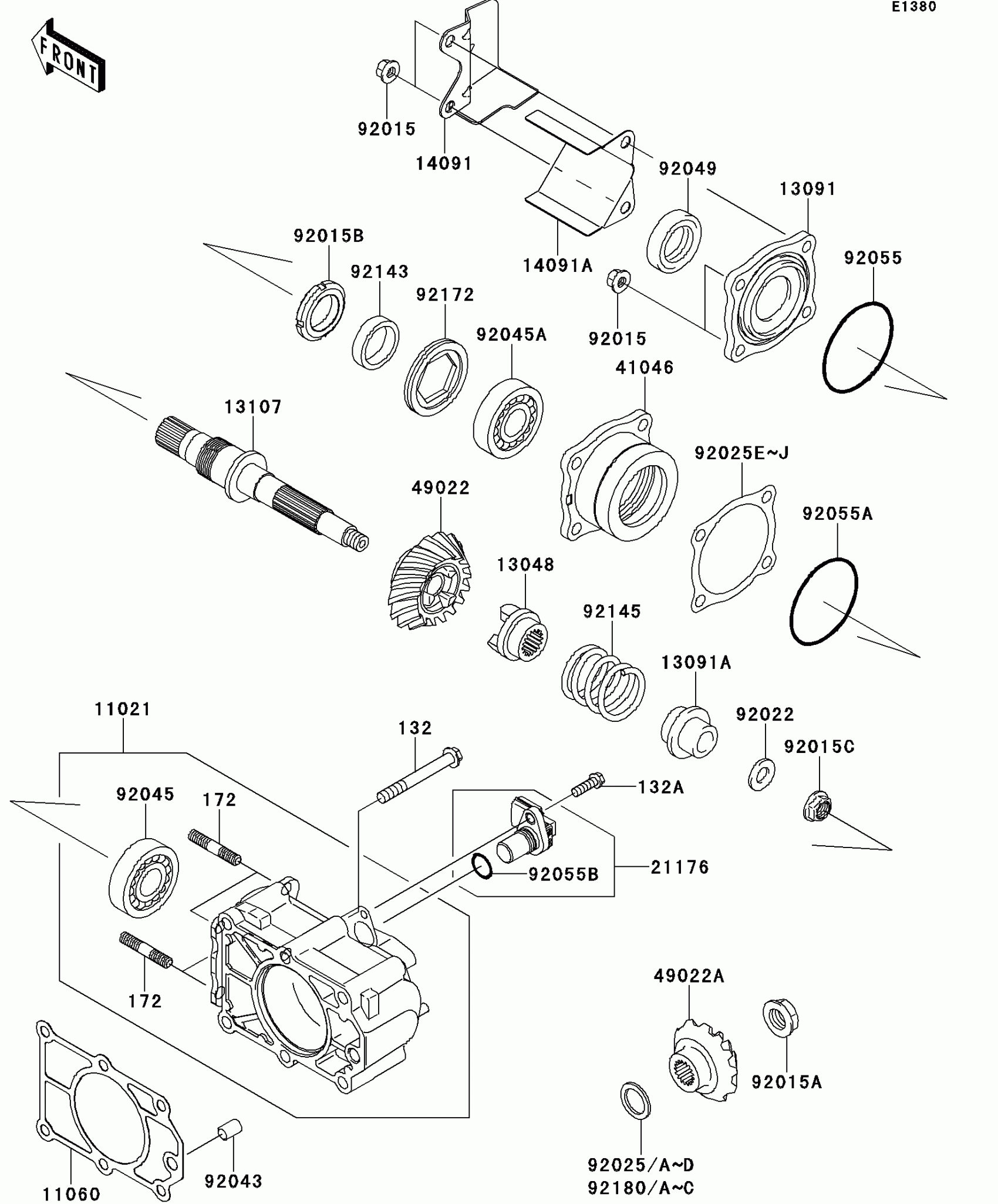

Kawasaki MULE™ 4010 4x4 Bevel Gear Case Diagram

GEAR-BEVEL,18T

BEARING-BALL,6205CM
