2013 Kawasaki Mule™ 4000 Starter Motor Diagram

← All diagrams

Find the part on the Starter Motor diagram for your 2013 Kawasaki Mule™ 4000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

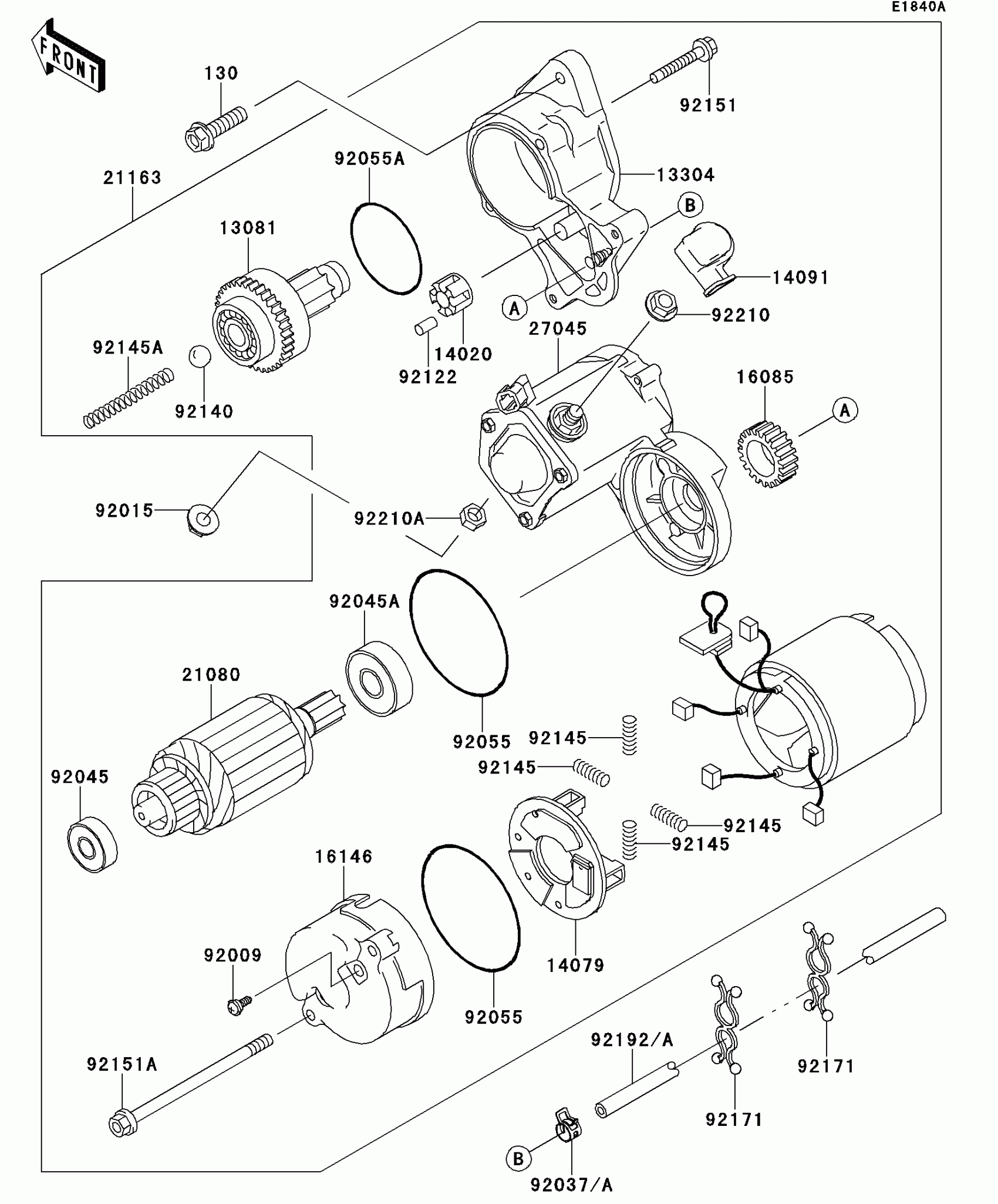

2013 Kawasaki Mule™ 4000 Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13081

CLUTCH-ASSY

13081-2231

1
Out of stock

13304

HOUSING-ASSY

13304-2253

1
Out of stock

14020

RETAINER

14020-2112

1
Out of stock

14079

HOLDER-ASSY

14079-2064

1
Out of stock

14091

COVER

14091-2080

1
Out of stock

16085

GEAR

16085-2055

1
Out of stock

16146

COVER-ASSY

16146-2243

1
Out of stock

21080

ARMATURE

21080-2070

1
Out of stock

21163

STARTER-ELECTRIC

21163-2134

1
Out of stock

27045

SWITCH-ASSY

27045-2020

1
Out of stock

92009

SCREW

92009-2455

1
Out of stock

92015

NUT,8MM

92015-1143

1
Out of stock

92037A

CLAMP

92037-2113

1
Out of stock

92045

BEARING-BALL,60102RKMDSH2C3

92045-2257

1
Out of stock

92045A

BEARING-BALL

92045-2258

1
Out of stock

92055

RING-O

92055-2199

1
Out of stock

92055A

RING-O

92055-2200

1
Out of stock

92122

ROLLER

92122-2057

1
Out of stock

92140

BALL

92140-2061

1
Out of stock

92145

SPRING

92145-2096

1
Out of stock

92145A

SPRING

92145-2097

1
Out of stock

92151

BOLT

92151-2167

1
Out of stock

92151A

BOLT

92151-2168

1
Out of stock

92171

CLAMP

92171-0476

1
Out of stock

92192A

TUBE,4.7X9.5X1000

92192-0937

1
Out of stock

92210

NUT

92210-2084

1
Out of stock

92210A

NUT

92210-2085

1
Out of stock

130

BOLT-FLANGED,8X30

130CA0830

1
Out of stock
