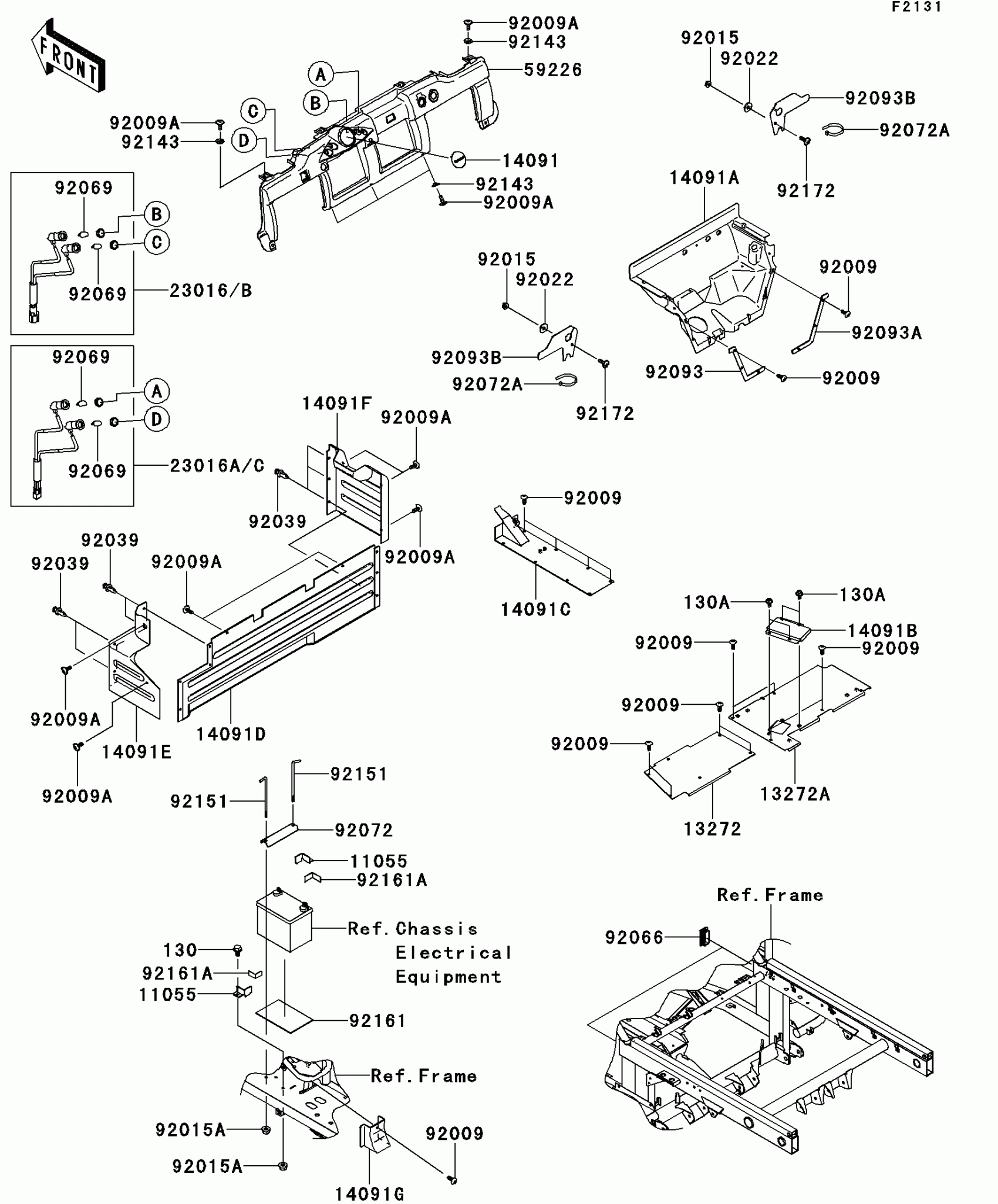

Kawasaki MULE™ 4000 Frame Fittings(P9F-PBF) Diagram

#

Description
Price

11055

BRACKET

11055-0433

$3.77

13272

PLATE

13272-0284

$104.14

13272A

PLATE

13272-0285

$123.48

14091

COVER,SPEEDOMETER,F.BLACK

14091-0929-6Z

$8.62

14091A

COVER,FLOOR

14091-1378

$98.40

14091B

COVER

14091-1666

$20.39

14091C

COVER,FLOOR,CNT,FR

14091-1692

$87.14

14091D

COVER,FRONT SEAT,CNT

14091-7531

$113.24

14091E

COVER,FRONT SEAT,LH

14091-7541

$34.21

14091F

COVER,FRONT SEAT,RH

14091-7542

$49.47

14091G

COVER,PARKING CABLE

14091-7551

$13.47

23016B

LAMP-ASSY,PARKING&WATER TEMP

23016-0035

$87.81

23016C

LAMP-ASSY,DFI&OIL PRESSURE

23016-0036

$87.81

59226

PANEL-CONTROL,F.BLACK

59226-0012-6Z

$124.59

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X16

92009-1621

$3.60

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92015A

NUT,FLANGED,8MM

92015-1406

$4.45

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$1.49

92039

RIVET

92039-1229

$0.88

92066

PLUG

92066-7505

$4.51

92069

BULB,12V 1.7W,T10

92069-1059

$4.96

92072

BAND

92072-0112

$11.81

92072A

BAND,L=368.3

92072-3872

$1.59

92093

SEAL,FRONT FENDER,LH

92093-1293

$9.64

92093A

SEAL,FRONT FENDER,RH

92093-1294

$10.00

92093B

SEAL,LOWER COVER

92093-1295

$22.57

92143

COLLAR

92143-1087

$4.31

92151

BOLT,BATTERY

92151-1897

$6.69

92161

DAMPER

92161-0578

$4.25

92161A

DAMPER

92161-0580

$2.40

92172

SCREW,6X18

92172-0002

$2.80

130

BOLT-FLANGED,8X14

130BA0814

$2.16

130A

BOLT-FLANGED,6X10

130BB0610

$2.49
