2007 Kawasaki Mule 3020 Turf Optional Parts Diagram

← All diagrams

Find the part on the Optional Parts diagram for your 2007 Kawasaki Mule 3020 Turf, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

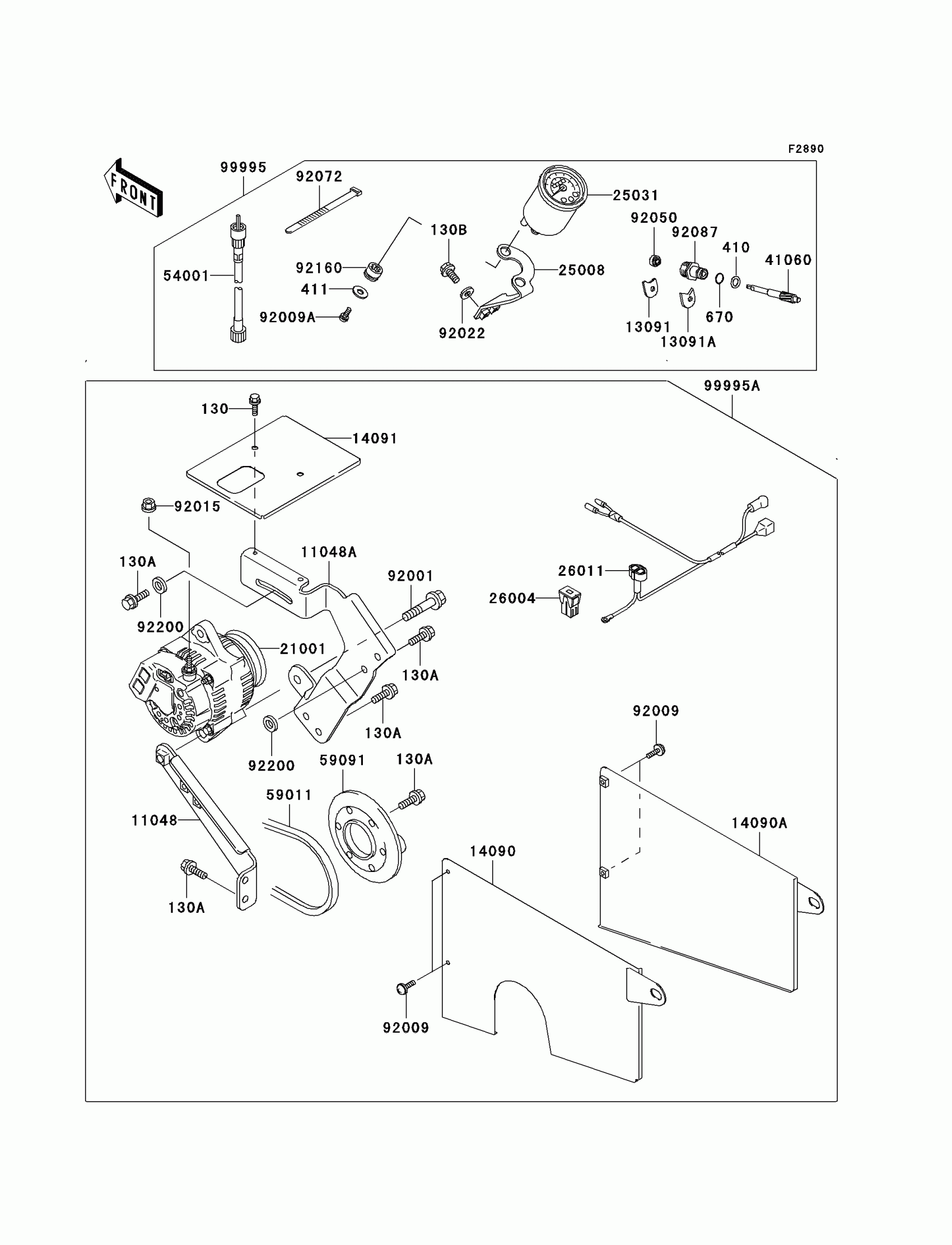

2007 Kawasaki Mule 3020 Turf Optional Parts Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130C0608

1
Out of stock

130A

BOLT-FLANGED,8X20

130H0820

1
Out of stock

130B

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock

410

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

411

WASHER PLAIN 8MM

411B0800

1
Out of stock

670

O RING,10MM

670D1510

1
Out of stock

11048

BRACKET,ENGINE,LWR

11048-1243

1
Out of stock

11048A

BRACKET,GENERATOR

11048-1244

1
Out of stock

13091

HOLDER,TACHOMETER2.3T

13091-1008

1
Out of stock

13091A

HOLDER,TACHOMETR,3.2T

13091-1009

1
Out of stock

14090

COVER,ENCLOSURE,LH

14090-1354

1

$58.06

In stock

14090A

COVER,ENCLOSURE,RH

14090-1355

1

$58.06

In stock

14091

COVER,GENERATOR

14091-1377

1
Out of stock

21001

GENERATOR

21001-1129

1
Out of stock

25008

BRACKET-METER

25008-1228

1
Out of stock

25031

METER-ASSY,MPH

25031-1190

1
Out of stock

26004

FUSE-ASSY,50A

26004-1096

1
Out of stock

26011

WIRE-LEAD,GENERATOR

26011-1758

1
Out of stock

41060

GEAR-METER SCREW

41060-1148

1

$60.75

In stock

54001

CABLE-SPEEDOMETER

54001-1248

1
Out of stock

59011

BELT

59011-2056

1
Out of stock

59091

PULLEY

59091-2053

1
Out of stock

92001

BOLT,BLACK,10X47

92001-1522

1
Out of stock

92009

SCREW,6X16

92009-1621

1
Out of stock

92009A

SCREW,5X12

92009-3740

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92022

WASHER,6.5X16X1.0

92022-1093

1
Out of stock

92050

SEAL-OIL

92050-075

1
Out of stock

92072

BAND,L=140

92072-1293

1
Out of stock

92087

GUIDE,TACHOMETER GEAR

92087-010

1
Out of stock

92160

DAMPER

92160-1461

1
Out of stock

92200

WASHER,8.5X20X2.3

92200-1055

1
Out of stock

99995

KIT.,SPEEDOMETER

99995-1480

1
Out of stock

99995A

KIT.,ALTERNATOR

99995-1481

1
Out of stock
