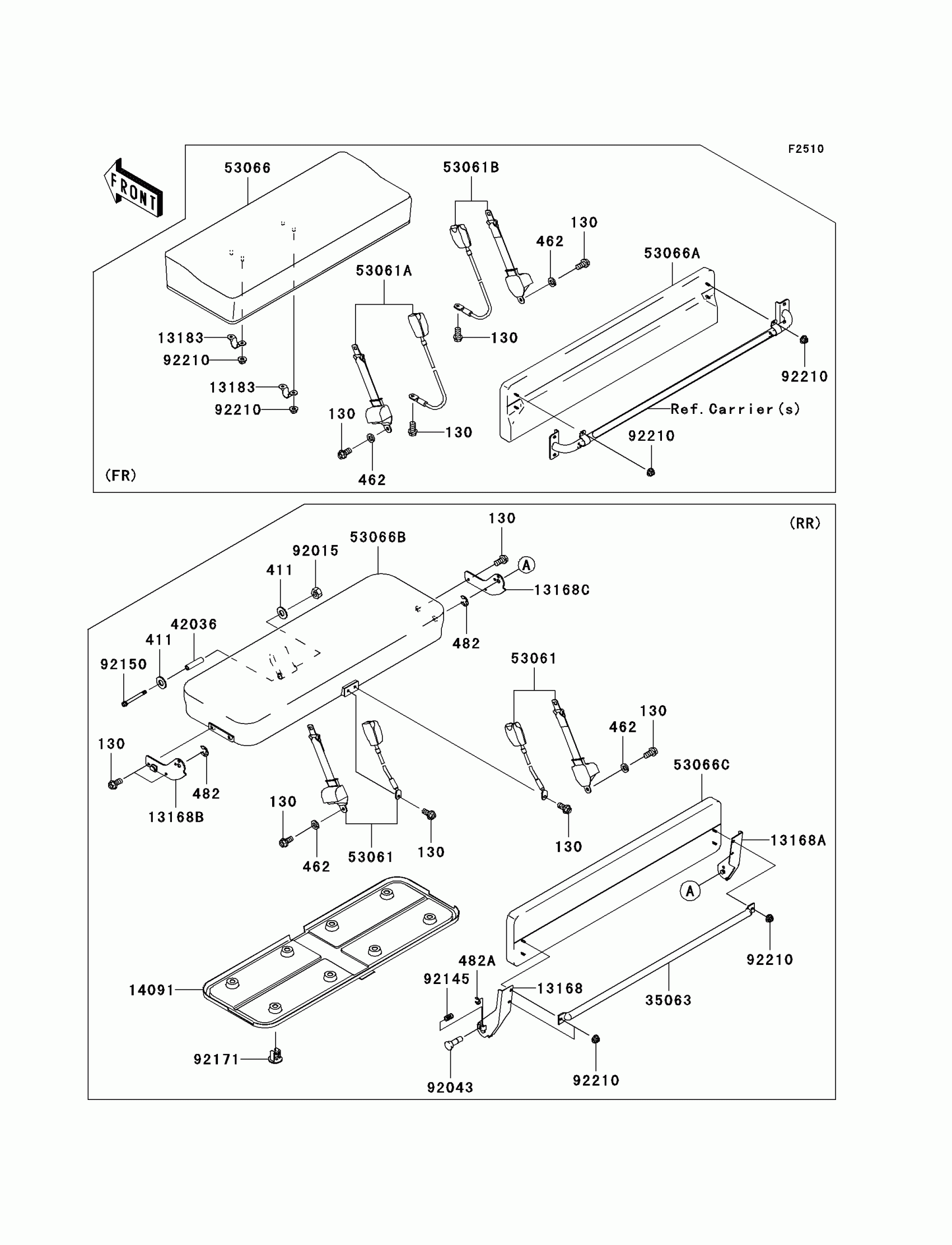

Kawasaki Mule 3010 Trans4x4 Seat Diagram

#

Description
Price

130

BOLT-FLANGED,10X20

130J1020

Unavailable

411

WASHER-PLAIN

411F1200

$3.53

462

WASHER-SPRING,10MM

462K1000

Unavailable

482

CIRCLIP-TYPE-E,12MM

482J0200

$3.53

482A

CIRCLIP 8MM

482J8000

$1.11

13168

LEVER,SEAT,TOP,LH

13168-7502

$59.56

13168A

LEVER,SEAT,TOP,RH

13168-7503

$59.56

13168B

LEVER,SEAT,LWR,LH

13168-7504

$48.68

13168C

LEVER,SEAT,LWR,RH

13168-7505

$48.68

13183

PLATE,SEAT

13183-1400

$5.74

14091

COVER,REAR SEAT,BOTTOM

14091-7528

$142.65

35063

STAY,REAR BACK

35063-7510

$150.47

42036

SLEEVE,12.1X20X85

42036-7501

$9.75

53061

BELT-SEAT,RR

53061-7502

Unavailable

53061A

BELT-SEAT,FR,LH

53061-7503

$56.97

53061B

BELT-SEAT,FR,RH

53061-7504

$56.97

53066

SEAT-ASSY,FR,LWR,GRAY

53066-7502-338

Unavailable

53066A

SEAT-ASSY,FR,BACK,GRAY

53066-7503-338

$262.78

53066B

SEAT-ASSY,RR,LWR,GRAY

53066-7504-338

$599.47

53066C

SEAT-ASSY,RR,BACK,GRAY

53066-7506-338

$262.78

92015

NUT,LOCK,12MM,BLACK

92015-1190

$7.25

92043

PIN

92043-7503

$3.73

92145

SPRING

92145-7507

$1.32

92150

BOLT,FLANGED,12X117

92150-1895

$12.17

92171

CLAMP

92171-7509

Unavailable

92210

NUT,FLANGED,LOCK,8MM

92210-0005

$3.58
