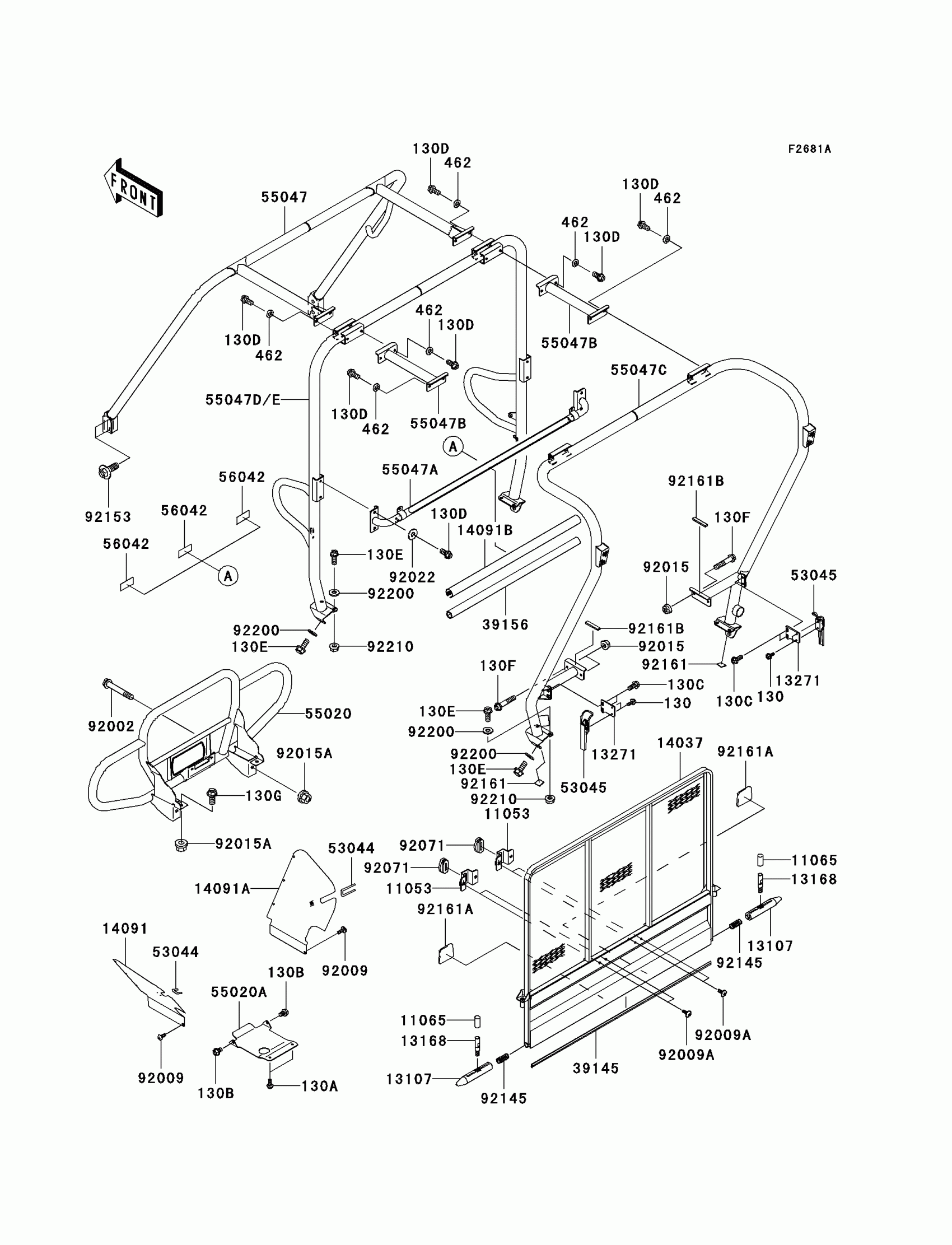

Kawasaki Mule 3010 Trans4x4 Guards/Cab Frame(J7F/J8F) Diagram

#

Description
Price

130

BOLT-FLANGED,6X14

130BB0614

$1.77

130A

BOLT-FLANGED,6X16

130BB0616

$1.49

130B

BOLT-FLANGED,8X12

130BB0812

$0.63

130C

BOLT-FLANGED,8X20

130BB0820

$0.71

11053

BRACKET,SCREEN

11053-7528

$5.24

11065

CAP

11065-7503

$1.46

13107

SHAFT

13107-7501

$10.42

13168

LEVER

13168-7506

$8.00

13271

PLATE,HOOK

13271-7540

$11.25

14037

SCREEN,REAR CAB,T.BLACK

14037-7501-388

$221.60

14091

COVER,FR,LH

14091-1142

$75.65

14091A

COVER,FR,RH

14091-1143

$86.23

14091B

COVER

14091-7559

$32.94

39145

TRIM-SEAL,L=1157

39145-7502

$29.61

39156

PAD

39156-7506

$11.07

53044

TRIM

53044-1137

$10.25

53045

HOOK-ASSY

53045-7501

$21.71

55020

GUARD,FR,W.BLACK

55020-7505-388

$648.66

55020A

GUARD,GEAR CASE

55020-7506

$30.99

55047

BAR-COMP,FR,W.BLACK

55047-7501-388

$445.22

55047A

BAR-COMP,FRONT SEAT,T.BLACK

55047-7503-388

$67.25

55047B

BAR-COMP,TOP,T.BLACK

55047-7504-388

$51.22

55047C

BAR-COMP,RR,W.BLACK

55047-7509-388

$753.30

55047E

BAR-COMP,CNT,T.BLACK

55047-7512-388

Unavailable

56042

ADHESIVE

56042-7502

$1.29

92002

BOLT,FLANGED,12X75

92002-1661

$10.44

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,6X14

92009-1662

$2.99

92015

NUT,FLANGED,10MM

92015-1428

$3.81

92015A

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92022

WASHER,10.5X26X2.3,BLACK

92022-1396

$2.59

92071

GROMMET

92071-7505

$1.62

92145

SPRING,TENSIONER

92145-1215

$3.52

92153

BOLT,FLANGED,14X36

92153-1282

$7.51

92161

DAMPER

92161-0020

$4.42

92161A

DAMPER

92161-0061

$1.73

92161B

DAMPER

92161-7514

$1.27

92200

WASHER,10.2X23X2.5

92200-7506

$3.51

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.85

130D

BOLT-FLANGED,10X20

130BB1020

$4.50

130E

BOLT-FLANGED,10X25

130BB1025

$4.63

130F

BOLT-FLANGED,10X50

130BB1050

$3.25

130G

BOLT-FLANGED,12X25

130CA1225

$5.91

462

WASHER-SPRING,10MM

462K1000

Unavailable
