2007 Kawasaki Mule 3010 Trans4x4 Chassis Electrical Equipment Diagram

← All diagrams

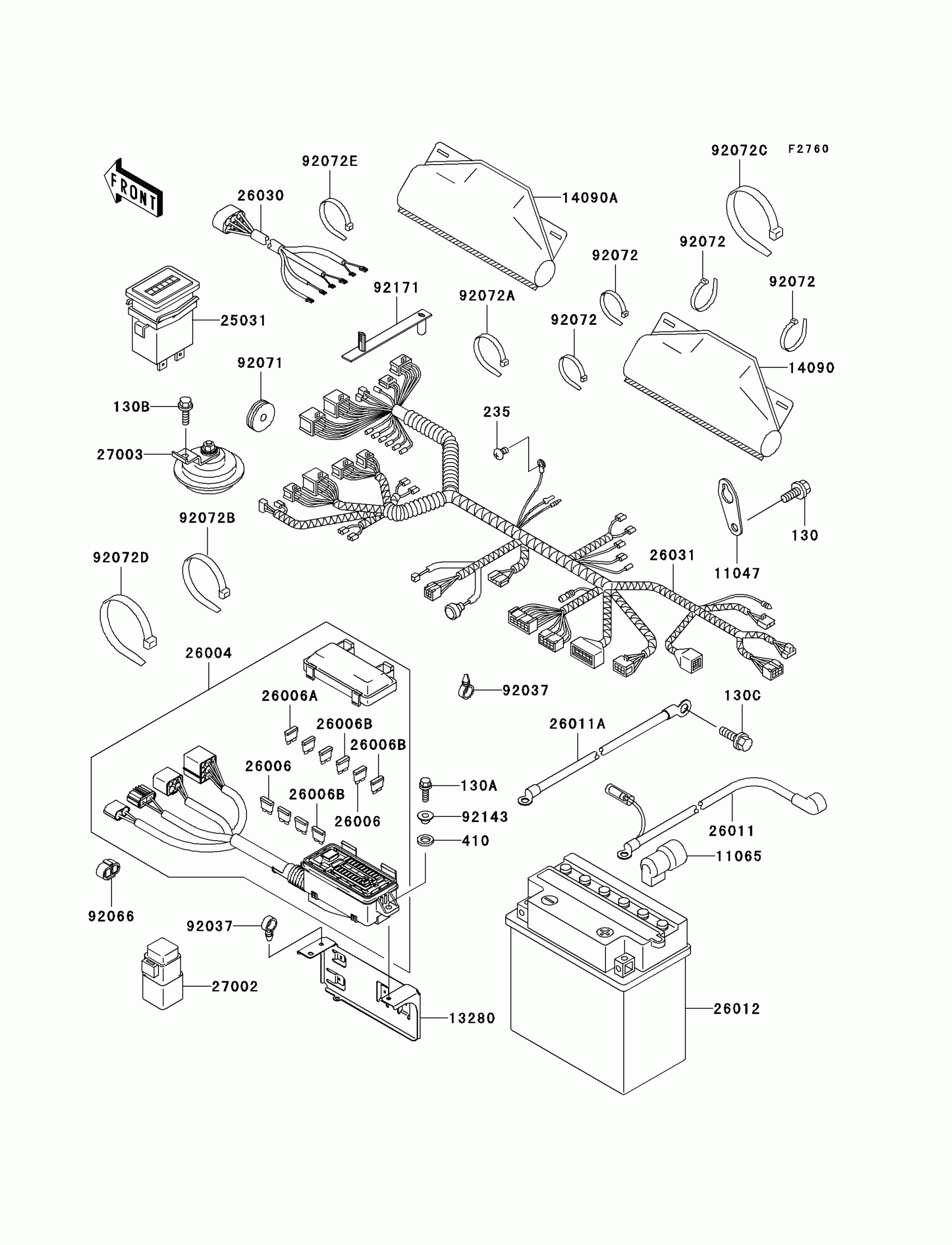

Find the part on the Chassis Electrical Equipment diagram for your 2007 Kawasaki Mule 3010 Trans4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Kawasaki Mule 3010 Trans4x4 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X16

130G0816

1
Out of stock

130A

BOLT-FLANGED,6X18

130J0618

1
Out of stock

130B

BOLT-FLANGED

130J0620

1
Out of stock

130C

BOLT-FLANGED,8X12

130J0812

1
Out of stock

235

SCREW-PAN-WP-CROS,6X10

235B0610

1
Out of stock

410

WASHER-PLAIN-SMALL,10MM,BLACK

410F1000

1
Out of stock

11047

BRACKET,F.BLACK

11047-2056-9H

1
Out of stock

11065

CAP,BATTERY(+)

11065-7502

1
Out of stock

13280

HOLDER

13280-1220

1
Out of stock

14090

COVER,COUPLER

14090-1331

1
Out of stock

14090A

COVER,COUPLER

14090-1611

1
Out of stock

25031

METER-ASSY,HOUR

25031-7505

1
Out of stock

26004

FUSE-ASSY

26004-0004

1
Out of stock

26006

FUSE,MINI BLADE,5A,TAN

26006-1077

1
Out of stock

26006A

FUSE,MINI BLADE,20A,YELLOW

26006-1079

1
Out of stock

26006B

FUSE,MINI BLADE,30A,GREEN

26006-1080

1
Out of stock

26011

WIRE-LEAD,BATTERY(+)

26011-7515

1
Out of stock

26011A

WIRE-LEAD,BATTERY(-)

26011-7516

1
Out of stock

26012

BATTERY,YTX20L-BS,12V 18AH

26012-3728

1
Out of stock

26030

HARNESS

26030-2322

1
Out of stock

26031

HARNESS,MAIN

26031-7504

1
Out of stock

27002

RELAY-ASSY

27002-1068

1
Out of stock

27003

HORN

27003-1276

1
Out of stock

92037

CLAMP,HOSE

92037-1827

1
Out of stock

92066

PLUG

92066-1539

1
Out of stock

92071

GROMMET

92071-1136

1
Out of stock

92072

BAND,L=123

92072-030

1
Out of stock

92072A

BAND,L=149

92072-031

1
Out of stock

92072B

BAND,L=202

92072-1195

1
Out of stock

92072C

BAND,L=365

92072-1197

1
Out of stock

92072D

BAND,L=250

92072-1237

1
Out of stock

92072E

BAND,L=188

92072-1239

1
Out of stock

92143

COLLAR

92143-1057

1
Out of stock

92171

CLAMP

92171-1365

1
Out of stock
