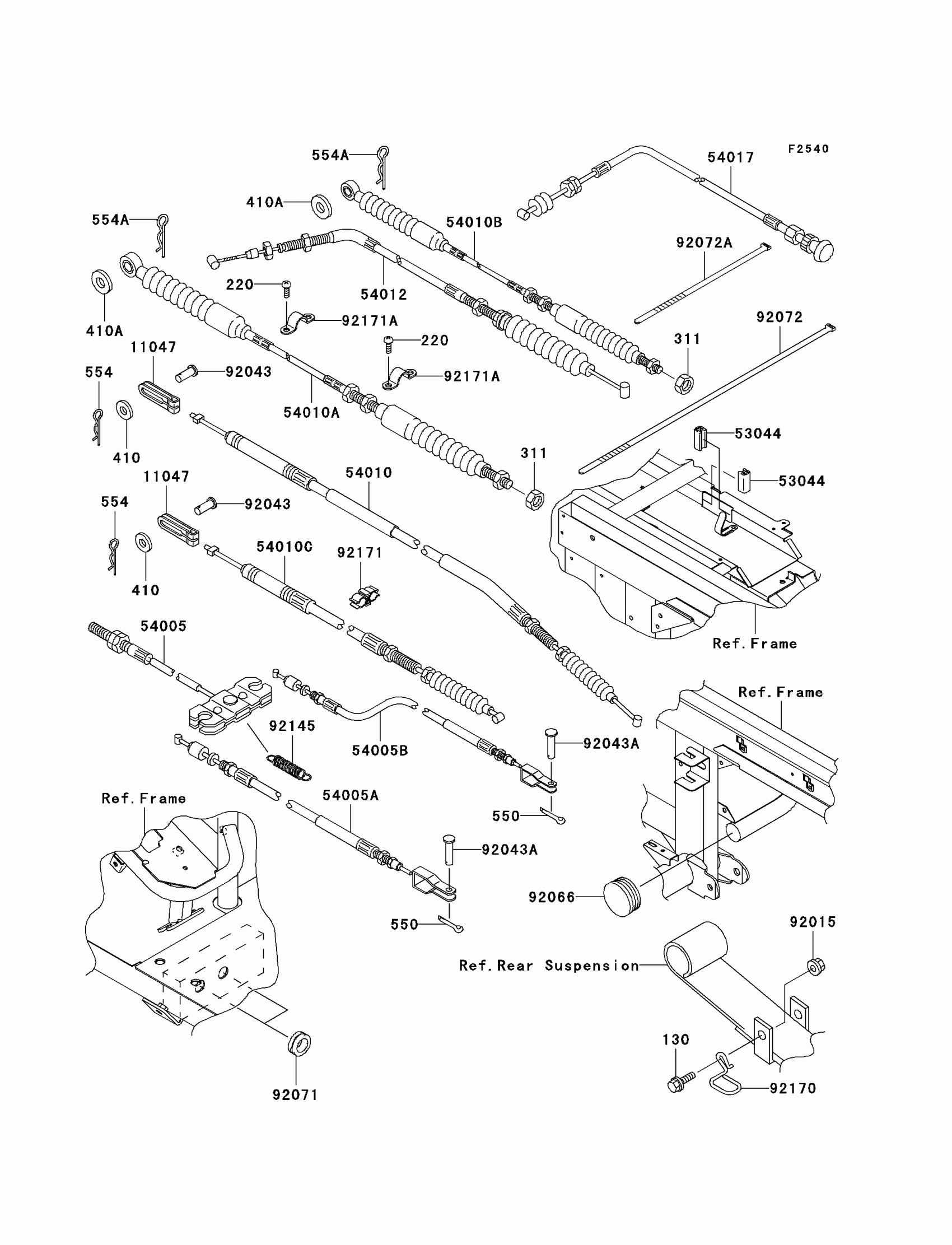

Kawasaki Mule 3010 Trans4x4 Cables Diagram

#

Description
Price

130

BOLT-FLANGED,6X20

130D0620

Unavailable

220

SCREW-PAN-CROS,5X14

220D0514

Unavailable

311

NUT 6MM

311B0600

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$0.96

410A

W-PLAIN-S,8MM

410E0800

$0.74

550

PIN-COTTER,2.0X22

550D2022

$1.73

554

PIN,SNAP

554A0600

Unavailable

554A

PIN-SNAP,8MM

554A0800

Unavailable

11047

BRACKET,DIFF LOCK

11047-1043

Unavailable

53044

TRIM,L=22

53044-7503

$7.83

54005

CABLE-BRAKE,PARKING,FR

54005-1198

$10.30

54005A

CABLE-BRAKE,PARKING,RR,LH

54005-7501

$38.43

54005B

CABLE-BRAKE,PARKING,RR,RH

54005-7502

$35.05

54010

CABLE,DIFF LOCK

54010-7504

$98.33

54010A

CABLE,SHIFT CONTROL

54010-7505

$188.86

54010B

CABLE,HI-LOW

54010-7506

$136.24

54010C

CABLE,2-4WD

54010-7507

$56.11

54012

CABLE-THROTTLE

54012-7505

$47.97

54017

CABLE-STARTER

54017-7502

$45.75

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92043

PIN,6X11

92043-092

$4.69

92043A

PIN

92043-1039

$9.91

92066

PLUG

92066-7503

$1.75

92071

GROMMET

92071-1027

$4.65

92072

BAND,L=365

92072-1197

$7.84

92072A

BAND,L=188

92072-1239

$1.73

92145

SPRING

92145-7506

$9.34

92170

CLAMP,CABLE

92170-1372

$9.73

92171

CLAMP

92171-0129

$4.18

92171A

CLAMP

92171-1203

$2.58
