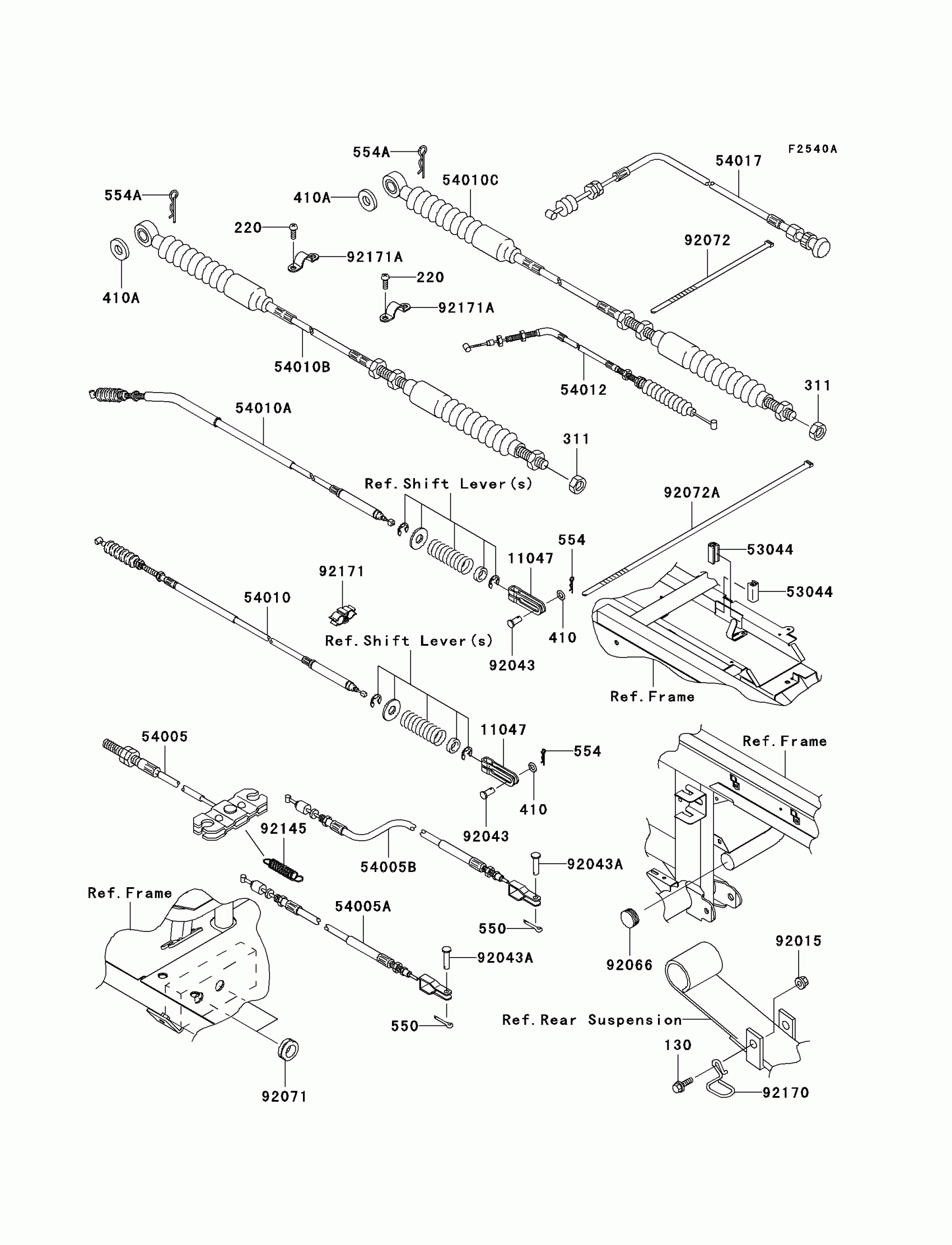

Kawasaki Mule 3010 Trans4x4 Cables(JK1AFCJ1 6B506427-) Diagram

Description

Price

130

BOLT-FLANGED,6X20

130AA0620

$1.49

220

SCREW-PAN-CROS,5X14

220AA0514

$3.52

311

NUT 6MM

311B0600

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

410A

W-PLAIN-S,8MM

410E0800

$0.84

550

PIN-COTTER,2.0X22

550D2022

$2.08

554

PIN,SNAP

554A0600

Unavailable

554A

PIN-SNAP,8MM

554A0800

Unavailable

11047

BRACKET,DIFF LOCK

11047-1043

Unavailable

53044

TRIM,L=22

53044-7503

$7.69

54005

CABLE-BRAKE,PARKING,FR

54005-1198

$8.16

54005A

CABLE-BRAKE,PARKING,RR,LH

54005-7501

Unavailable

54005B

CABLE-BRAKE,PARKING,RR,RH

54005-7502

$32.10

54010

CABLE,2-4WD

54010-0045

$52.02

54010A

CABLE,DIFF LOCK

54010-7504

$100.24

54010B

CABLE,SHIFT CONTROL

54010-7505

$192.86

54010C

CABLE,HI-LOW

54010-7506

$133.66

54012

CABLE-THROTTLE

54012-7505

$36.72

54017

CABLE-STARTER

54017-7502

$41.52

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$3.43

92043

PIN,6X11

92043-092

$4.17

92043A

92043-1039

$7.86

92066

PLUG

92066-7503

$1.51

92071

GROMMET

92071-1027

Unavailable

92072

BAND,L=188

92072-1239

$1.51

92072A

BAND,L=368.3

92072-3872

$1.39

92145

SPRING

92145-7506

$9.07

92170

CLAMP,CABLE

92170-1372

$9.42

92171

CLAMP

92171-0129

$3.33

92171A

CLAMP

92171-1203

$2.12
