Find the part on the Generator diagram for your 2007 Kawasaki Mule 3010 Diesel 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

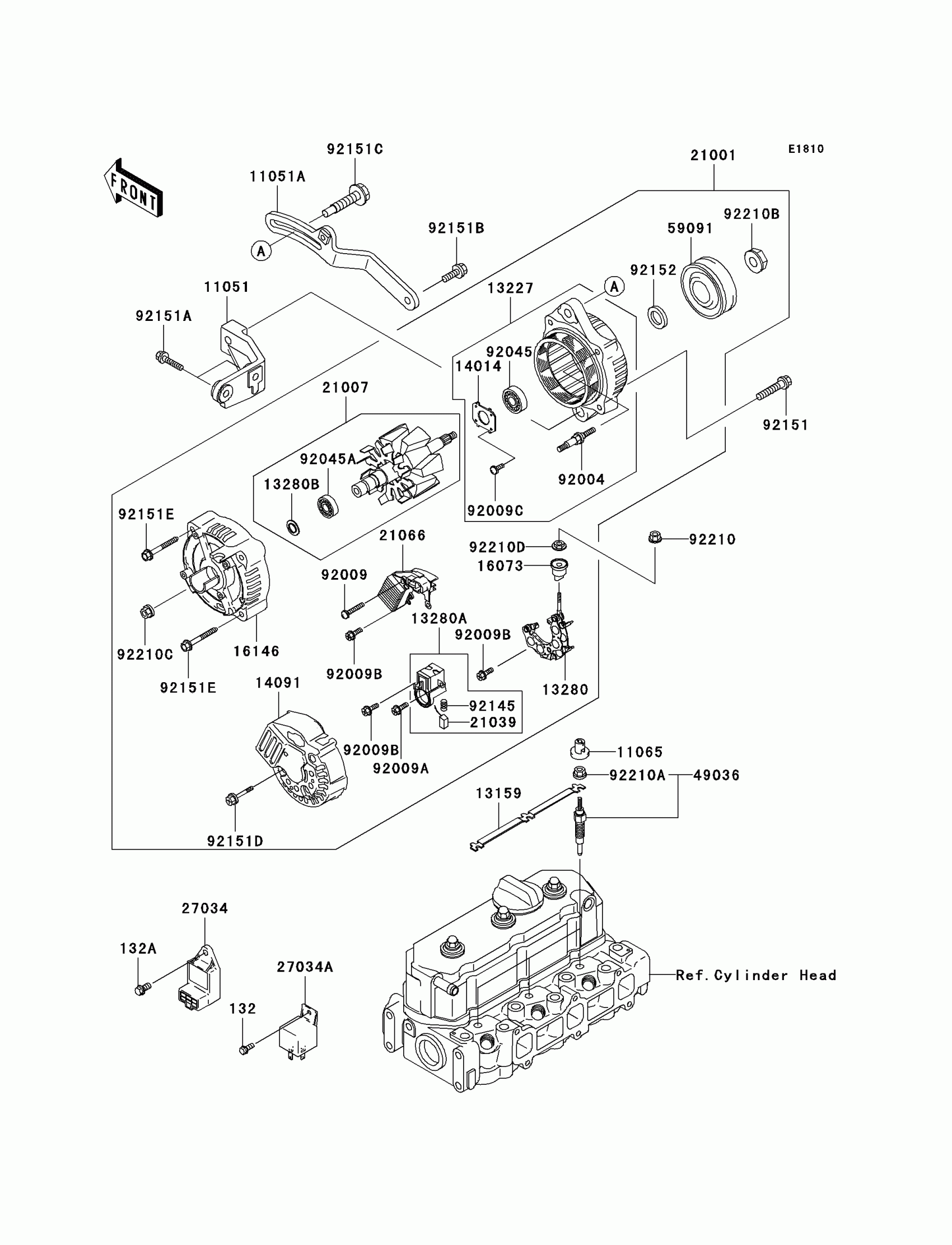

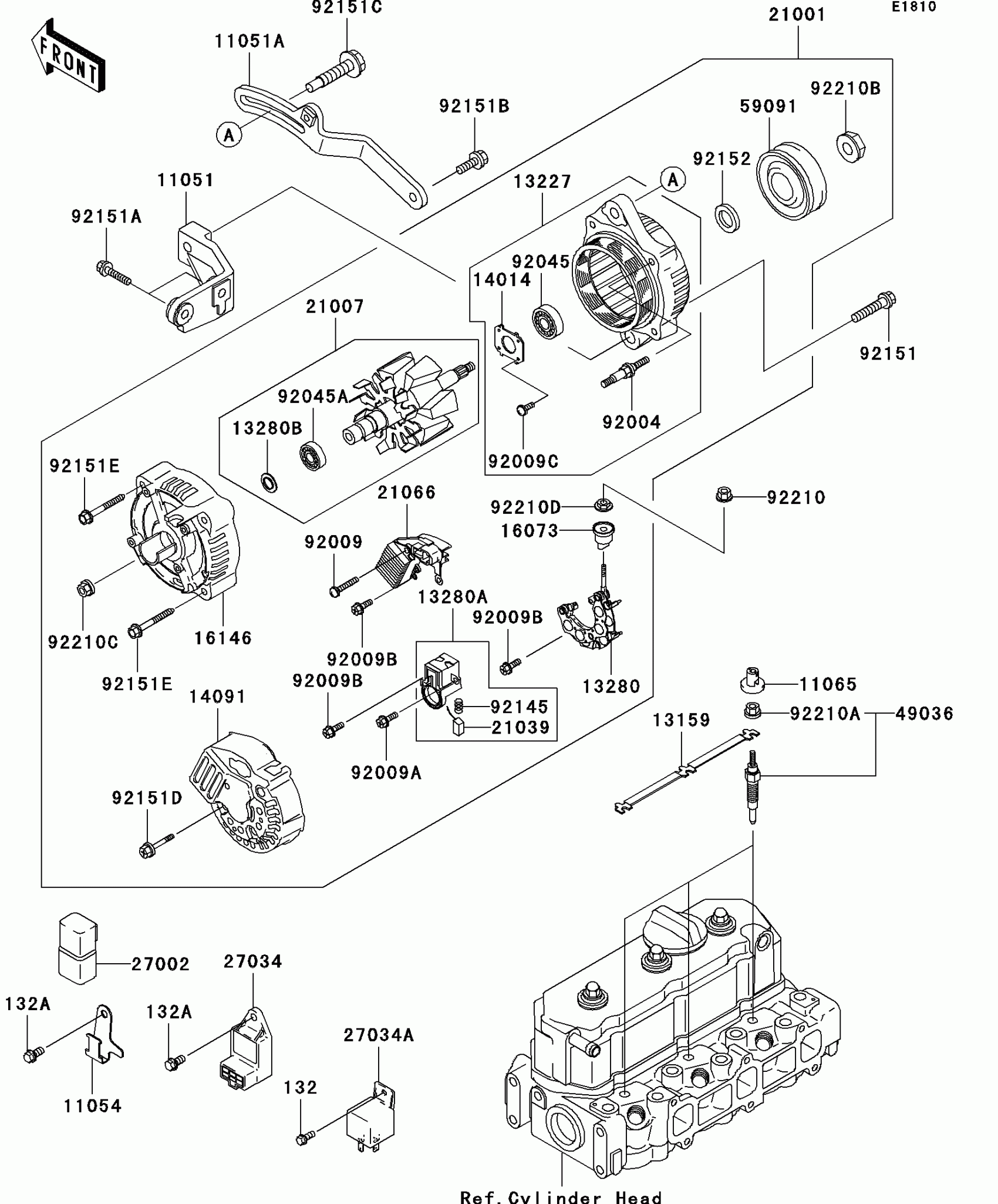

2007 Kawasaki Mule 3010 Diesel 4X4 Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11051

BRACKET,LWR

11051-1568

1
Out of stock

11051A

BRACKET,UPP

11051-1569

1
Out of stock

11065

CAP,GLOW

11065-1150

1
Out of stock

13159

CONNECTOR

13159-1066

1
Out of stock

13227

HOUSING,ALTERNATOR

13227-1139

1
Out of stock

13280

HOLDER,RECTIFIER

13280-1173

1

$445.85

In stock

13280A

1

$84.50

In stock

13280B

HOLDER,BEARING

13280-1175

1

$7.22

In stock

14014

PLATE-POSITION

14014-1149

1

$13.69

In stock

14091

COVER,REAR END

14091-1207

1
Out of stock

16073

INSULATOR

16073-1122

1
Out of stock

16146

COVER-ASSY,RECTIFIER

16146-1214

1
Out of stock

21001

GENERATOR

21001-1176

1
Out of stock

21007

ROTOR,ALTERNATOR

21007-1368

1
Out of stock

21039

BRUSH

21039-1068

1
Out of stock

21066

REGULATOR-VOLTAGE

21066-1122

1
Out of stock

27034

RELAY,HEATING TIMER

27034-1065

1
Out of stock

27034A

RELAY,GLOW

27034-1066

1
Out of stock

49036

PLUG-GLOW

49036-1051

1
Out of stock

59091

PULLEY,ALTERNATOR

59091-1106

1
Out of stock

92004

STUD,ALTERNATOR HOUSING

92004-1273

1
Out of stock

92009

SCREW

92009-1921

1
Out of stock

92009A

SCREW

92009-1922

1
Out of stock

92009B

SCREW

92009-1923

1
Out of stock

92009C

SCREW,POSITION PLATE

92009-1924

1
Out of stock

92045

BEARING-BALL,373

92045-1398

1
Out of stock

92045A

BEARING-BALL,6002DG6

92045-1399

1
Out of stock

92145

SPRING,ALTERNATOR BRUSH

92145-1312

1
Out of stock

92151

BOLT,10X40

92151-1691

1
Out of stock

92151A

BOLT,8X25

92151-1692

1
Out of stock

92151B

BOLT,8X20

92151-1693

1
Out of stock

92151C

BOLT,8X45

92151-1694

1
Out of stock

92151D

BOLT

92151-1715

1
Out of stock

92151E

BOLT

92151-1716

1
Out of stock

92152

COLLAR

92152-1230

1
Out of stock

92210

NUT,6MM

92210-1210

1
Out of stock

92210A

NUT,GLOW PLUG,4MM

92210-1218

1
Out of stock

92210B

NUT,PULLEY

92210-1232

1
Out of stock

92210C

NUT

92210-1233

1
Out of stock

92210D

NUT

92210-1234

1
Out of stock

132

BOLT-FLANGED-SMALL,5X12

132J0512

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X12

132J0612

1
Out of stock
