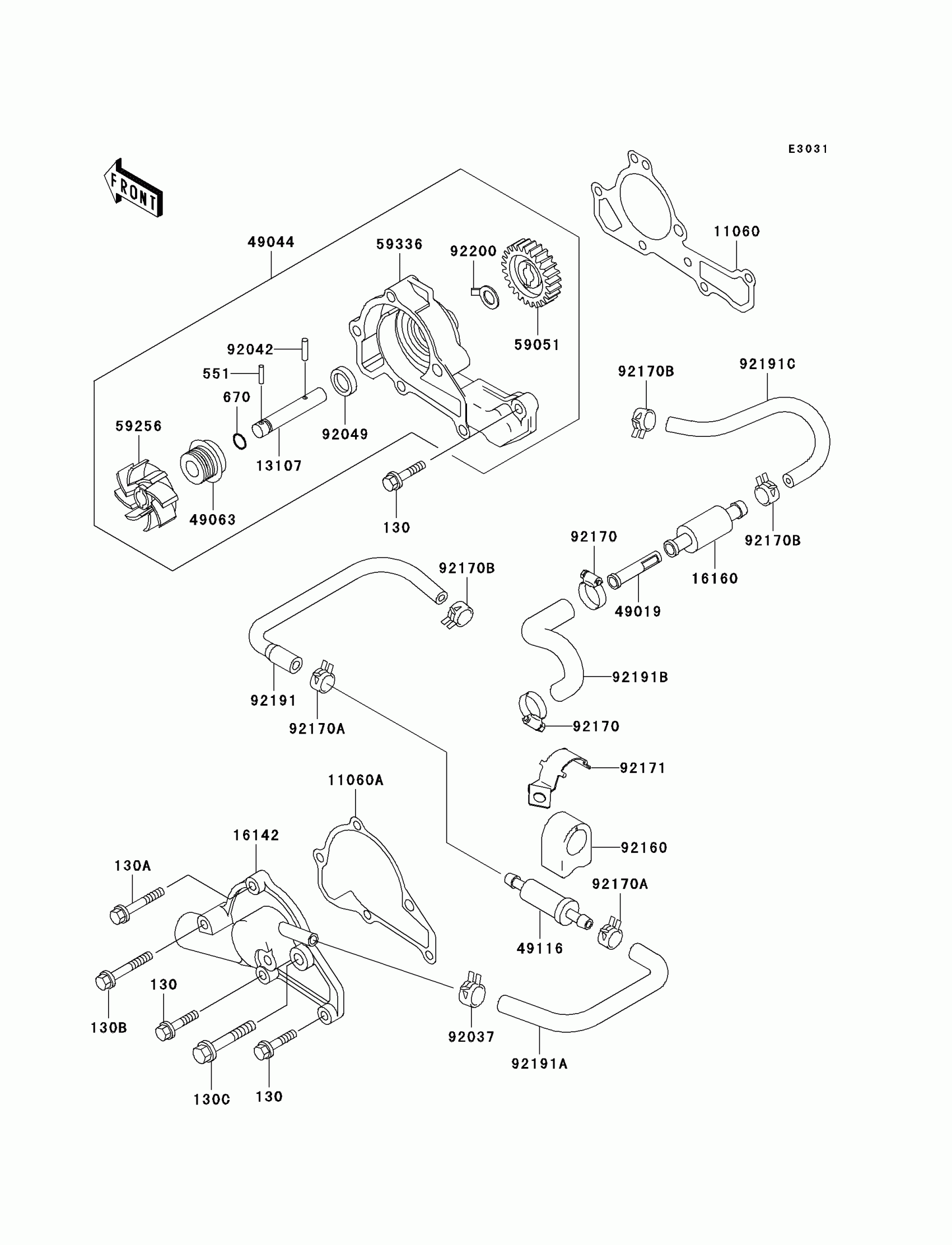

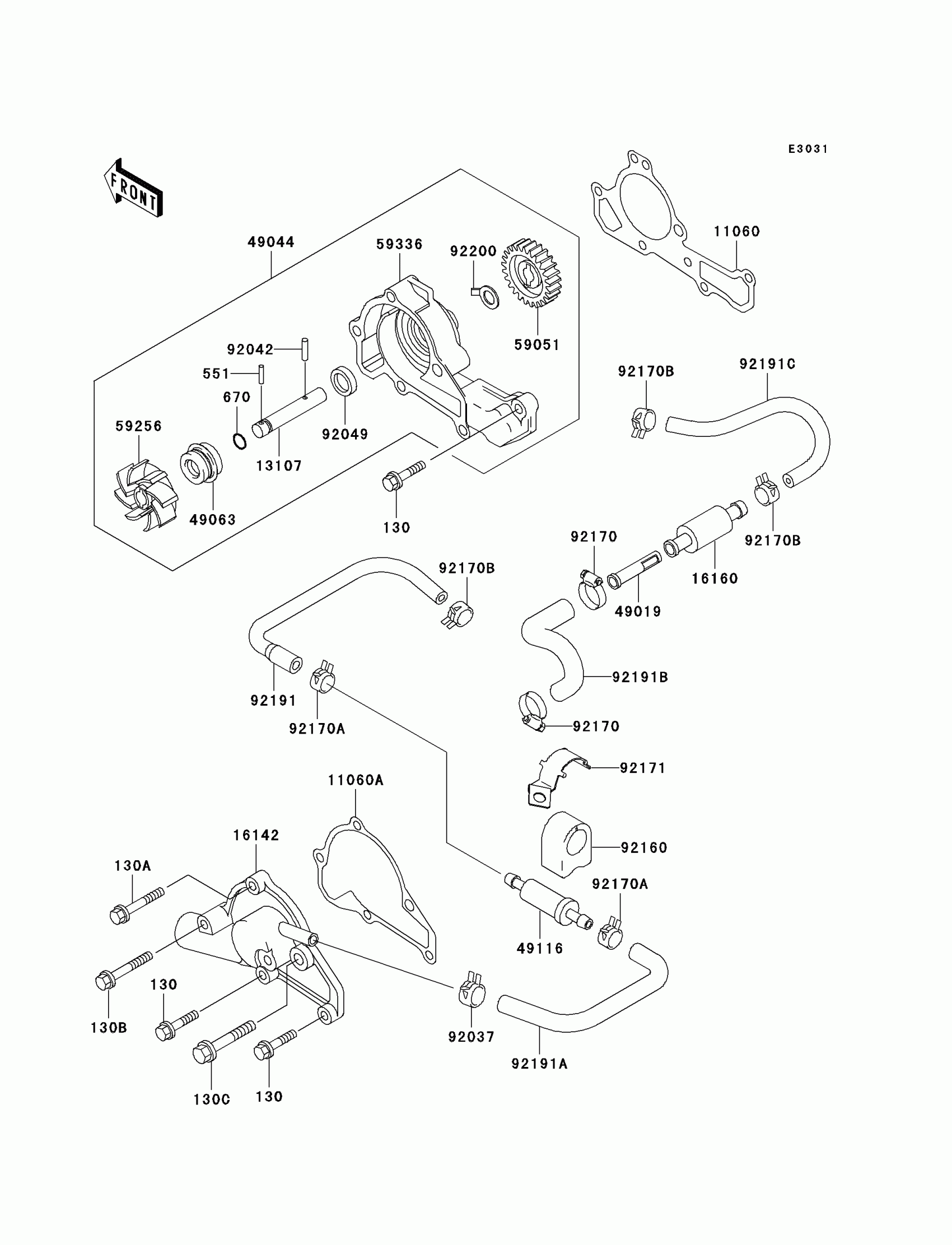

Kawasaki Mule 3010 4X4 Water Pump Diagram

#

Description
Price

130

BOLT-FLANGED

130T0645

Unavailable

130A

BOLT-FLANGED

130T0665

Unavailable

130B

BOLT-FLANGED

130T0675

Unavailable

130C

BOLT-FLANGED

130T0870

Unavailable

551

PIN,DOWEL,3X14

551A0314

$0.66

670

O RING,7MM

670B1507

$0.98

11060

GASKET,PUMP CASE

11060-2450

$5.34

11060A

GASKET,PUMP COVER

11060-2451

$3.69

13107

SHAFT,IMPELLER

13107-2097

$6.16

16142

COVER-PUMP

16142-2069

Unavailable

16160

BODY

16160-1359

$7.18

49019

FILTER-WATER

49019-1068

$3.90

49044

PUMP-WATER

49044-2058

$60.25

49063

SEAL-MECHANICAL

49063-1056

$12.56

49116

VALVE-ASSY

49116-1081

$100.54

59051

GEAR-SPUR

59051-2113

$3.45

59256

IMPELLER

59256-2057

$3.06

59336

CASE-PUMP

59336-2052

$30.54

92037

CLAMP,HOSE CLIP

92037-2065

Unavailable

92042

PIN,DOWEL,4X15.8

92042-014

$0.46

92049

SEAL-OIL

92049-2111

$2.68

92160

DAMPER,VALVE

92160-1451

$10.36

92170

CLAMP

92170-1278

$10.15

92170A

CLAMP

92170-1492

$3.81

92170B

CLAMP

92170-1493

$3.81

92171

CLAMP

92171-2064

$8.44

92191

TUBE

92191-2110

$8.37

92191A

TUBE

92191-2111

$8.37

92191B

TUBE

92191-2125

$12.49

92191C

TUBE

92191-2130

$9.31

92200

WASHER

92200-2044

$2.32
