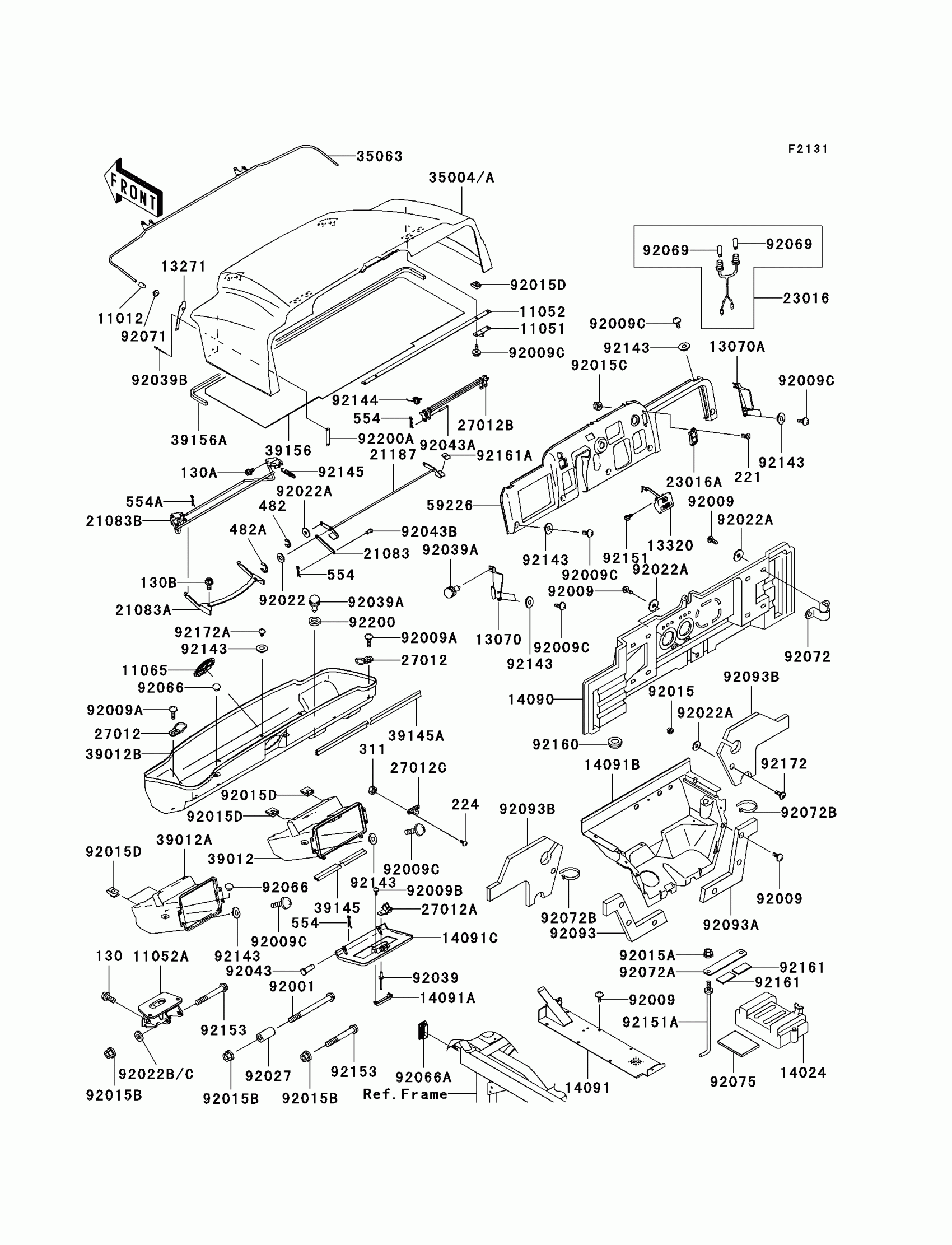

Kawasaki Mule 3010 4X4 Frame Fittings Diagram

#

Description
Price

11012

CAP

11012-1985

$3.92

11051

BRACKET

11051-1756

Unavailable

11052

BRACKET

11052-1369

$14.25

11052A

BRACKET,FRONT GEAR CASE

11052-1575

$47.97

11065

CAP,F.BLACK

11065-1053-6Z

$6.40

13070

GUIDE,LH

13070-1367

$28.94

13070A

GUIDE,RH

13070-1368

$28.94

13271

PLATE,RR

13271-1800

$5.00

13320

LEVER-ASSY

13320-1016

$121.39

14024

COVER,BATTERY

14024-1792

$44.38

14090

COVER,SEAT UNDER

14090-1247

Unavailable

14091

COVER,FLOOR,CNT

14091-0118

$112.40

14091A

COVER,STORAGE GRIP,GRAY

14091-1228-284

Unavailable

14091B

COVER,FLOOR

14091-1378

$100.23

14091C

COVER,CONTROL PANEL,GRAY

14091-1399-284

Unavailable

21083

ARM

21083-1146

$2.14

21083A

ARM

21083-1163

$44.33

21083B

ARM

21083-1172

Unavailable

21187

ARM-ASSY

21187-1085

Unavailable

23016

LAMP-ASSY,INDICATOR

23016-1188

$52.86

23016A

LAMP-ASSY

23016-1189

$52.20

27012

HOOK

27012-1577

$13.71

27012A

HOOK

27012-1607

$5.91

27012B

HOOK

27012-1608

$74.09

27012C

HOOK

27012-1612

$2.99

35004

FENDER-FRONT,A.RED

35004-0007-260

$131.44

35004A

FENDER-FRONT,W.GREEN

35004-0007-286

$131.44

35063

STAY,FR FENDER

35063-1203

$57.36

39012

CASE-STORAGE,RH,GRAY

39012-1061-284

$45.95

39012A

CASE-STORAGE,LH,GRAY

39012-1062-284

$48.15

39012B

CASE-STORAGE,CNT

39012-1066

$91.22

39145

TRIM-SEAL,L=774

39145-1130

$21.31

39145A

TRIM-SEAL,L=2805

39145-1132

$62.41

39156

PAD,FRONT FENDER

39156-0014

$145.42

39156A

PAD

39156-1685

$17.44

59226

PANEL-CONTROL,GRAY

59226-1060-284

$155.01

92001

BOLT,FLANGED,10X115

92001-1603

$10.25

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,6X22,BLACK

92009-1256

$1.96

92009B

SCREW,TAPPING,4X12

92009-1444

$2.23

92009C

SCREW,6X16

92009-1621

Unavailable

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92015A

NUT,FLANGED,8MM

92015-1406

$3.39

92015B

NUT,LOCK,10MM

92015-1597

$4.18

92015C

NUT,LOCK,FLANGED,6MM

92015-1603

$3.57

92015D

NUT,CLAMP,6MM

92015-1678

$4.18

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

Unavailable

92022A

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.48

92022B

WASHER,10.2X20X0.5

92022-1649

Unavailable

92022C

WASHER,10.5X20X1

92022-239

Unavailable

92027

COLLAR,11X20X39

92027-1518

$18.02

92039

RIVET

92039-1041

$2.76

92039A

RIVET

92039-1229

$0.80

92039B

RIVET

92039-1244

$1.43

92043

PIN,6X14.5

92043-125

$4.93

92043A

PIN,6X39

92043-1625

$2.03

92043B

PIN,6X9

92043-1626

$1.62

92066

PLUG

92066-1485

$1.74

92066A

PLUG

92066-7505

$3.44

92069

BULB,12V 3W,T7

92069-1020

Unavailable

92071

GROMMET,10MM

92071-019

$2.97

92072

BAND

92072-1252

$11.41

92072A

BAND,L=159

92072-1399

$3.24

92072B

BAND,L=368.3

92072-3872

$1.20

92075

DAMPER

92075-1076

$6.75

92093

SEAL,FRONT FENDER,LH

92093-1293

$9.34

92093A

SEAL,FRONT FENDER,RH

92093-1294

$9.68

92093B

SEAL,LOWER COVER

92093-1295

$21.14

92143

COLLAR

92143-1087

$2.98

92144

SPRING,SEAT HOOK

92144-1174

$5.92

92145

SPRING

92145-1335

Unavailable

92151

BOLT,FLANGED,5X12

92151-1305

$1.20

92151A

BOLT,BATTERY

92151-1897

$5.02

92153

BOLT,FLANGED,10X75

92153-1384

$5.91

92160

DAMPER

92160-1148

$4.08

92161

DAMPER

92161-0032

$3.41

92161A

DAMPER

92161-1197

$4.56

92172

SCREW,6X18

92172-0002

$1.98

92172A

SCREW,TAPPING,6X12

92172-0003

$2.29

92200

WASHER,8.5X26X0.8

92200-1567

$2.00

130

BOLT-FLANGED,10X20

130BA1020

$2.68

130A

BOLT-FLANGED,6X16

130BB0616

$1.49

130B

BOLT-FLANGED,8X16

130BB0816

$1.27

221

SCREW-CSK-CROS,6X16

221AB0616

$4.15

224

SCREW-PAN-WP-CROS,4X12

224AB0412

$0.48

311

NUT-HEX

311C0400

$0.63

482

CIRCLIP-TYPE-E,5MM

482L5000

$1.04

482A

CIRCLIP-TYPE-E

482L7000

$2.99

554

PIN,SNAP

554A0600

Unavailable

554A

PIN-SNAP,8MM

554A0800

Unavailable

92200A

WASHER

92200-1592

$3.25
