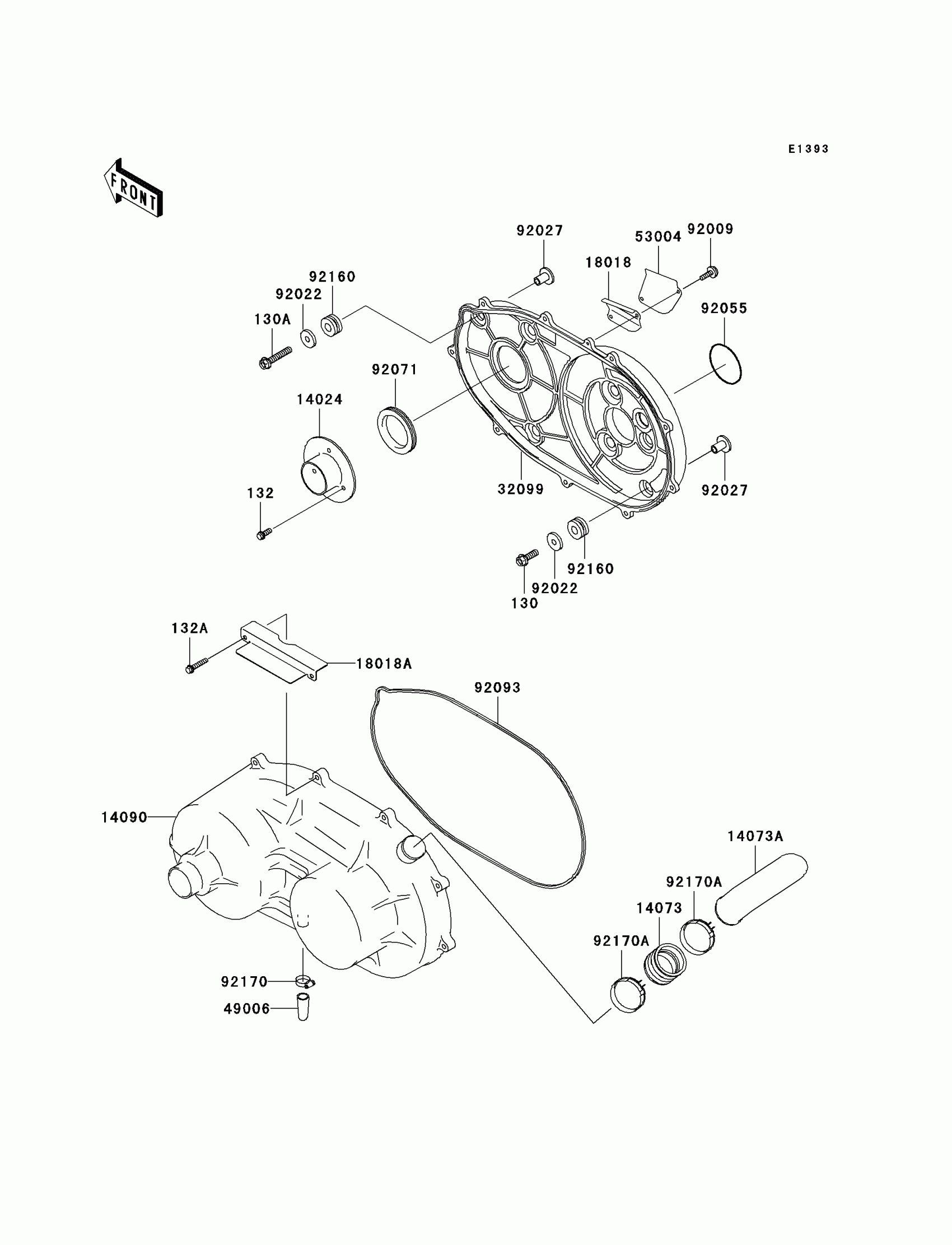

Kawasaki Mule 3010 4X4 Converter Cover/Drive Belt Diagram

Description

Price

130

BOLT-FLANGED,8X25,BLACK

130J0825

Unavailable

130A

BOLT-FLANGED,8X45

130J0845

Unavailable

132

BOLT-FLANGED-SMALL,6X16

132G0616

Unavailable

132A

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

14024

COVER,FAN

14024-1554

$42.47

14073

DUCT

14073-1324

$8.45

14073A

DUCT,CONVERTER OUTLET

14073-1573

Unavailable

14090

COVER,BELT CONVERTER

14090-1239

$168.33

18018

PLATE-HEAT GUARD

18018-1092

Unavailable

18018A

PLATE-HEAT GUARD

18018-1118

$13.36

32099

CASE,BELT CONVERTER

32099-1140

Unavailable

49006

BOOT

49006-1351

$5.98

53004

MAT,GUARD PLATE

53004-1079

$15.80

92009

SCREW,TAPPING,5X10

92009-1332

$3.12

92022

WASHER SEAL PLATE

92022-101

$3.85

92027

COLLAR

92027-4015

$8.44

92055

RING-O,CRANKCASE SIDE

92055-1395

$3.87

92071

GROMMET,CONVERTER CASE

92071-1212

$7.94

92093

SEAL

92093-1526

Unavailable

92160

DAMPER

92160-1012

$4.37

92170

CLAMP

92170-1283

$10.76

92170A

CLAMP

92170-1448

$6.44
