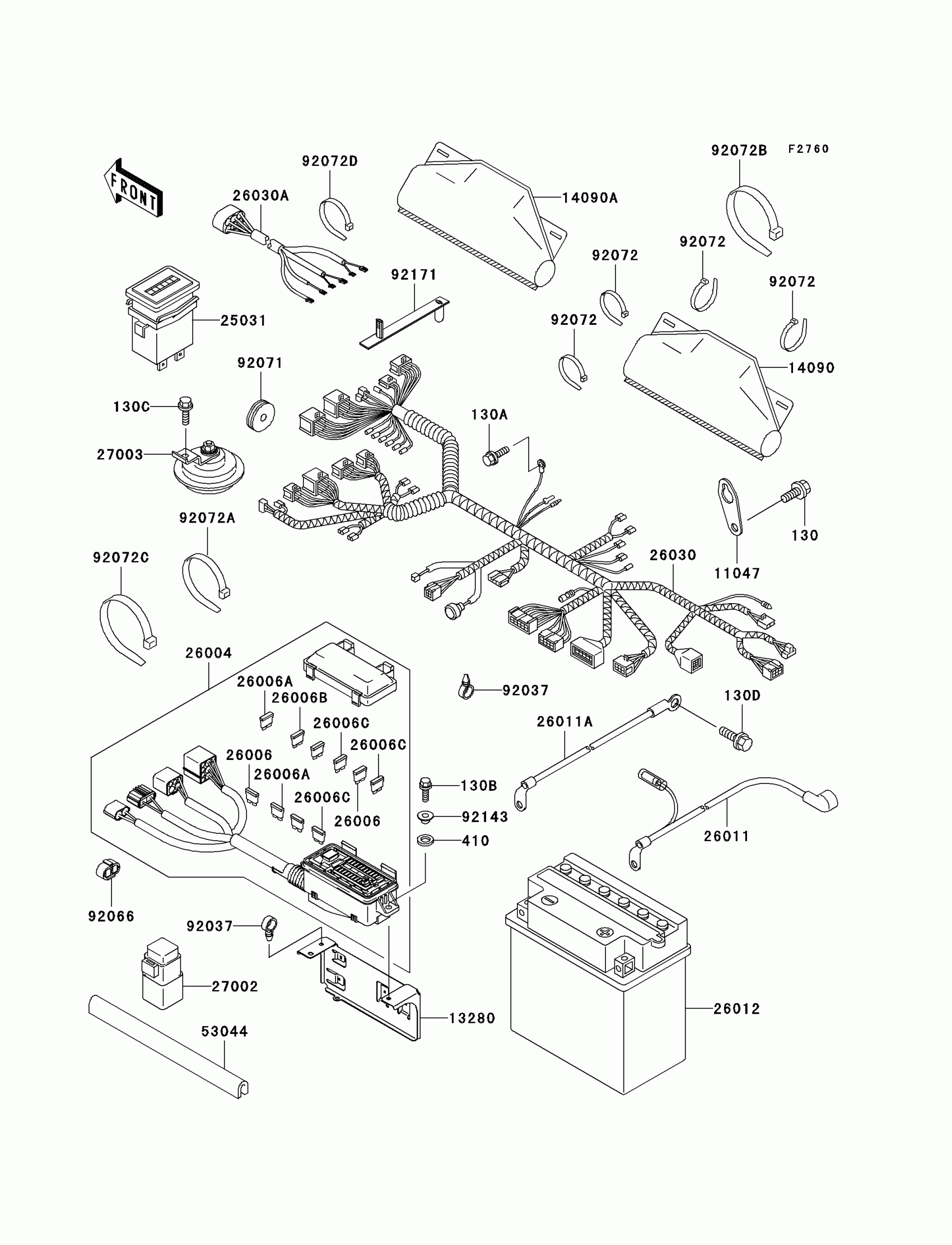

Find the part on the Chassis Electrical Equipment diagram for your 2007 Kawasaki Mule 3010 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Kawasaki Mule 3010 4X4 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X16

130G0816

1
Out of stock

130A

BOLT-FLANGED,6X12

130J0612

1
Out of stock

130B

BOLT-FLANGED,6X16,BLACK

130J0616

1
Out of stock

130C

BOLT-FLANGED

130J0620

1
Out of stock

130D

BOLT-FLANGED,8X12

130J0812

1
Out of stock

410

WASHER-PLAIN-SMALL,10MM,BLACK

410F1000

1
Out of stock

11047

BRACKET,F.BLACK

11047-2056-9H

1

$7.80

In stock

13280

HOLDER

13280-1220

1
Out of stock

14090

COVER,COUPLER

14090-1331

1

$8.31

In stock

14090A

COVER,COUPLER

14090-1611

1

$8.31

In stock

25031

METER-ASSY,HOUR

25031-1212

1

$113.59

In stock

26004

FUSE-ASSY

26004-1120

1
Out of stock

26006

1

$4.32

In stock

26006A

1

$3.50

In stock

26006B

1

$3.87

In stock

26006C

1

$4.32

In stock

26011

1

$37.50

In stock

26011A

1

$15.66

In stock

26012

1

$150.70

In stock

26030

HARNESS,MAIN

26030-1860

1
Out of stock

26030A

HARNESS

26030-2322

1
Out of stock

27002

RELAY-ASSY

27002-1068

1

$62.72

In stock

27003

HORN

27003-1276

1

$44.93

In stock

53044

TRIM

53044-1137

1

$10.25

In stock

92037

CLAMP,HOSE

92037-1827

1

$5.93

In stock

92066

PLUG

92066-1539

1

$9.31

In stock

92071

GROMMET

92071-1136

1

$7.29

In stock

92072

BAND,L=123

92072-030

1

$3.97

In stock

92072A

BAND,L=202

92072-1195

1

$1.34

In stock

92072B

BAND,L=365

92072-1197

1

$7.71

In stock

92072C

BAND,L=250

92072-1237

1

$1.80

In stock

92072D

BAND,L=188

92072-1239

1

$1.51

In stock

92143

COLLAR

92143-1057

1

$3.97

In stock

92171

CLAMP

92171-1365

1

$3.76

In stock
