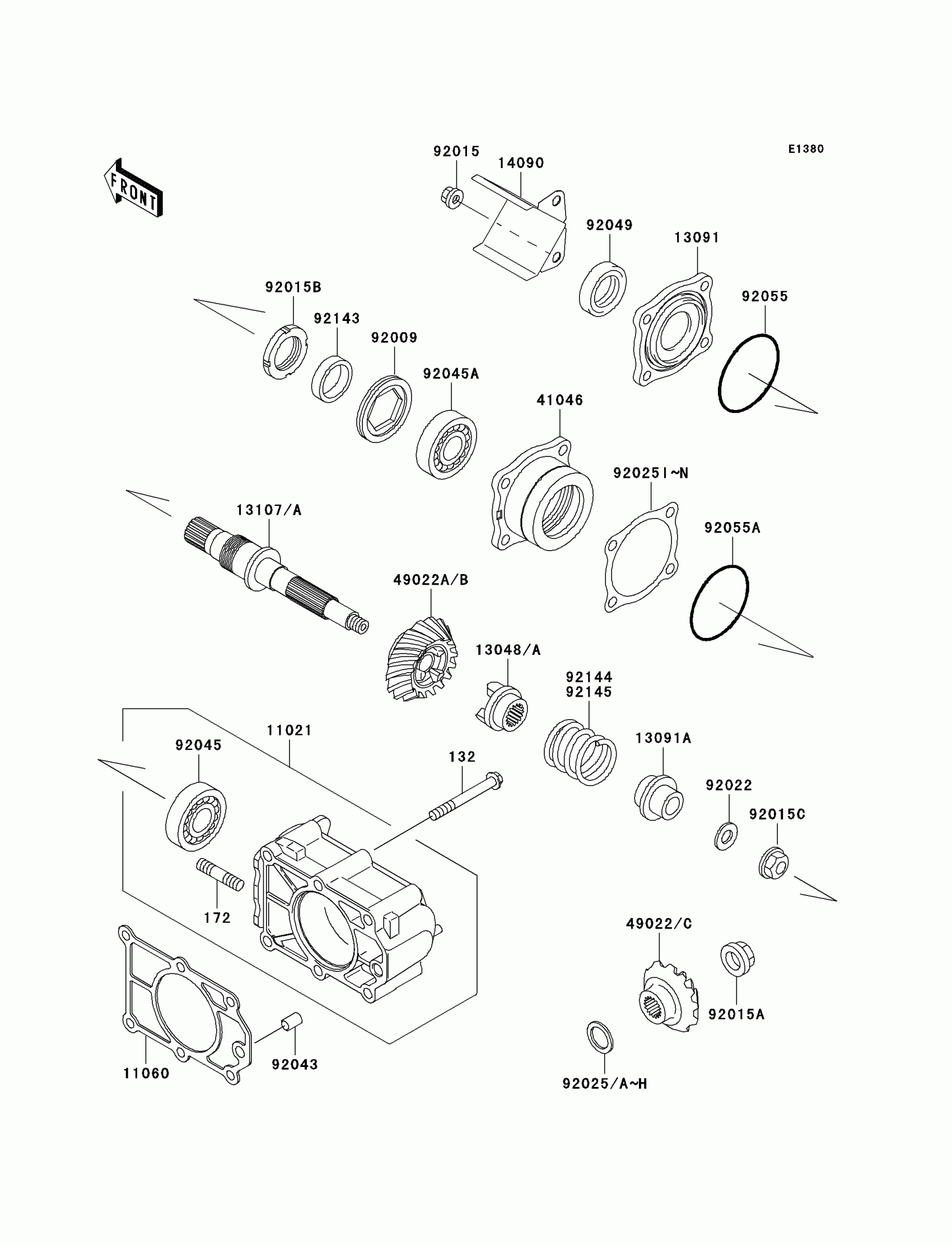

Kawasaki Mule 3010 4x4 Advantage Classic Bevel Gear Case Diagram

#

Description
Price

11021

CASE-ASSY

11021-1095

Unavailable

11060

GASKET,GEAR CASE

11060-1311

$7.42

13048

CAM-DAMPER

13048-1070

$51.60

13091

HOLDER,GEAR CASE

13091-1620

$42.05

13091A

HOLDER,CAM DAMPER

13091-1810

$47.36

13107

SHAFT,BEVEL GEAR

13107-1311

Unavailable

14090

COVER,GRILL

14090-1341

Unavailable

41046

HOUSING-BEARING

41046-1083

$134.70

49022

GEAR-BEVEL,15T

49022-1095

$219.55

49022A

GEAR-BEVEL,18T

49022-1125

$241.80

92009

SCREW,58MM

92009-1474

$27.47

92015

NUT,8MM

92015-1402

$3.72

92015A

NUT,16MM

92015-1581

$15.43

92015B

NUT,30MM

92015-1858

$33.58

92015C

NUT,12MM

92015-1920

$5.78

92022

WASHER,12X24X2.3

92022-1890

$4.42

92025

SHIM,20.3X28X1.3

92025-1533

$7.12

92025A

SHIM,20.3X28X0.7

92025-1534

$4.47

92025B

SHIM,20.3X28X0.8

92025-1535

Unavailable

92025C

SHIM,20.3X28X0.9

92025-1536

Unavailable

92025D

SHIM,20.3X28X1.0

92025-1537

Unavailable

92025E

SHIM,20.3X28X1.2

92025-1538

$5.75

92025F

SHIM,20.3X28X0.15

92025-1573

$4.85

92025G

SHIM,20.3X28X0.20

92025-1574

$4.85

92025H

SHIM,20.3X28X1.1

92025-1575

$4.47

92025I

SHIM,T=1.00

92025-1858

$5.10

92025J

SHIM,T=0.10

92025-1859

$5.10

92025K

SHIM,T=0.15

92025-1860

$4.62

92025L

SHIM,T=0.50

92025-1861

$4.62

92025M

SHIM,T=0.80

92025-1862

$4.62

92025N

SHIM,T=1.20

92025-1863

$4.62

92043

PIN,DOWEL,10X14

92043-1037

$0.76

92045

BEARING-BALL,6205CM

92045-1200

Unavailable

92045A

BEARING-BALL,6006CM

92045-1201

$23.68

92049

SEAL-OIL

92049-1288

$7.14

92055

RING-O,66.5MM

92055-1287

$5.21

132

BOLT-FLANGED-SMALL,8X70

132H0870

Unavailable

172

BOLT-STUD,8X25

172G0825

$2.56

92055A

RING-O,63.6X2.4

92055-1294

$7.55

92143

COLLAR

92143-1600

$16.15

92144

SPRING

92144-1161

$21.53
