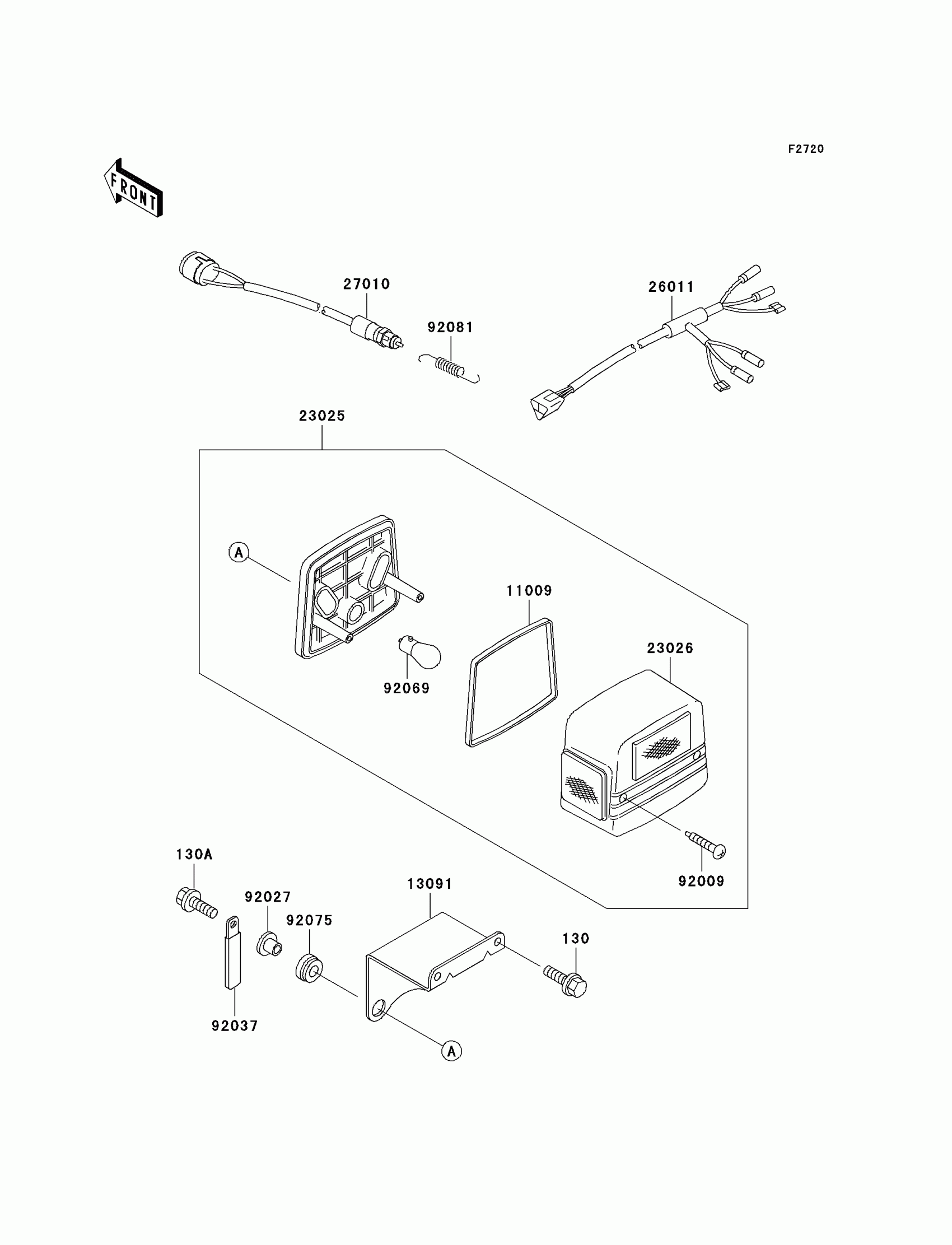

Kawasaki Mule 3000 Taillight(s) Diagram

Description

Price

130

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

130A

BOLT-FLANGED

130J0620

Unavailable

11009

GASKET,TAIL LAMP

11009-1215

$6.70

13091

HOLDER,TAIL LAMP

13091-1743

$10.83

23025

LAMP-TAIL

23025-1042

$103.96

23026

LENS,TAIL LAMP

23026-1019

$45.95

26011

WIRE-LEAD

26011-1756

$69.57

27010

SWITCH,BRAKE LAMP

27010-1301

$41.44

92009

SCREW,TAPPING,4X25

92009-1069

$3.53

92027

COLLAR

92027-194

$4.18

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92069

BULB,12V 21/5W

92069-1011

$5.78

92075

DAMPER

92075-277

$1.90

92081

SPRING,HOOK RETURN

92081-1466

$6.48
