Description

Price

130

BOLT-FLANGED,6X14

130BB0614

$1.84

130A

BOLT-FLANGED,6X16

130BB0616

$1.73

130B

BOLT-FLANGED,8X12

130BB0812

$0.73

130C

BOLT-FLANGED,8X20

130BB0820

$0.83

130D

BOLT-FLANGED,10X20

130BB1020

$4.72

130E

BOLT-FLANGED,12X25

130CA1225

$6.16

462

WASHER-SPRING,10MM

462K1000

Unavailable

11052

BRACKET,CARRIER CLAMP JOINT

11052-7559

$17.98

11065

CAP,F.BLACK

11065-1053-6Z

$6.67

14037A

SCREEN,REAR GUARD,T.BLACK

14037-0016-388

$167.45

14091B

COVER,FR,LH

14091-7553

$82.03

14091C

COVER,FR,RH

14091-7554

$85.93

53044

TRIM

53044-1137

$10.25

53045

HOOK-ASSY

53045-1063

$21.73

55020A

GUARD,FR,W.BLACK

55020-7505-388

$648.66

55020B

GUARD,GEAR CASE

55020-7506

$30.99

55047D

BAR-COMP,RR,W.BLACK

55047-7513-388

$749.62

55047E

BAR-COMP,FR,T.BLACK

55047-7514-388

$376.40

92002

BOLT,FLANGED,12X75

92002-1661

$10.88

92009

SCREW,TAPPING,6X16

92009-1166

$4.36

92015

NUT,FLANGED,10MM

92015-1428

$3.97

92015A

NUT,LOCK,FLANGED,12MM

92015-1433

$7.04

92153

BOLT,FLANGED,14X36

92153-1282

$7.51

92161

DAMPER

92161-0020

$4.42

92210

NUT,FLANGED,LOCK,8MM

92210-0005

$3.70

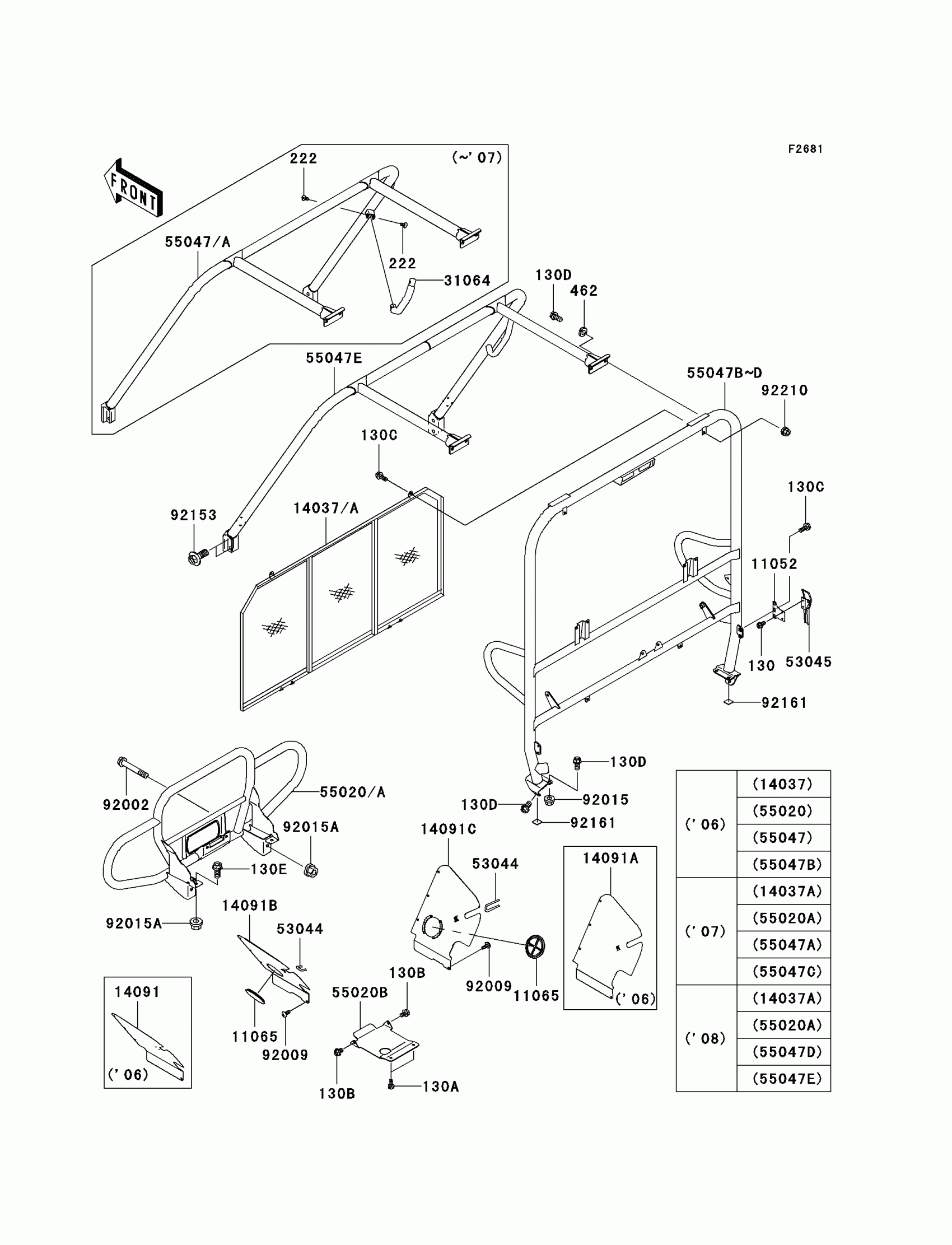

Kawasaki Mule 3000 Guards/Cab Frame Diagram

WASHER-SPRING,10MM
