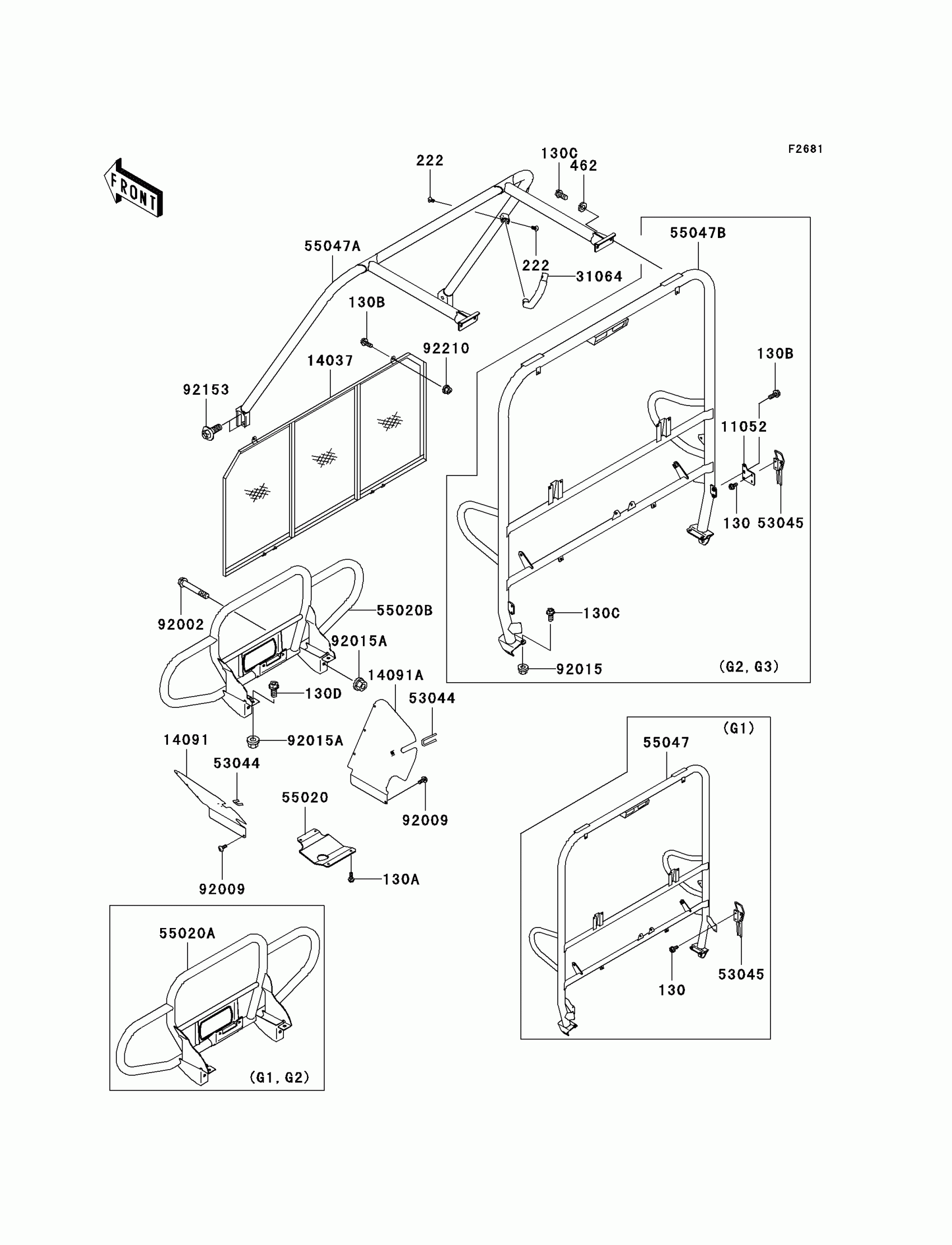

Kawasaki Mule 3000 Guards/Cab Frame(KAF620-G1-G3) Diagram

Description

Price

130

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

130A

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

130B

BOLT-FLANGED,8X20

130J0820

Unavailable

130C

BOLT-FLANGED,10X20

130J1020

Unavailable

130D

BOLT-FLANGED

130P1225

Unavailable

222

SCREW-CSK-RD-CROS

222F0612

Unavailable

462

WASHER-SPRING,10MM

462K1000

Unavailable

14037

SCREEN,REAR GUARD

14037-0016

Unavailable

14091

COVER,FR,LH

14091-1142

$75.65

14091A

COVER,FR,RH

14091-1143

$86.23

31064

PIPE-COMP

31064-1238

$66.98

53044

TRIM

53044-1137

$10.25

53045

HOOK-ASSY

53045-1063

$18.86

55020

GUARD,GEAR CASE

55020-1449

$88.88

55020A

GUARD,FR

55020-1752

$648.66

55047

BAR-COMP,RR

55047-1013

Unavailable

55047A

BAR-COMP,FR

55047-1016

Unavailable

92002

BOLT,FLANGED,12X75

92002-1661

$10.44

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92015

NUT,FLANGED,10MM

92015-1366

$3.81

92015A

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92153

BOLT,FLANGED,14X36

92153-1282

$7.51

92210

NUT,FLANGED,LOCK,8MM

92210-0005

$3.55
